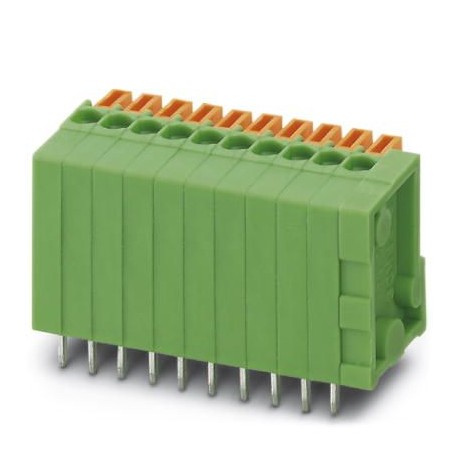

PHOENIX CONTACT FFKDSA1/V-2,54-33 FFKDSA1/V-2,54-33 1710544 PHOENIX CONTACT PCB terminal block View larger
Images are for illustrative purposes only. Please refer to data sheet for details

FFKDSA1/V-2,54-33 1710544 PHOENIX CONTACT PCB terminal block

FFKDSA1/V-2,54-33

1710544

PHOENIX CONTACT

10 Pcs.

PCB terminal block Terminal block for printed circuit board, nominal current: 6 A, dimensioning voltage (III/2): 160 V, nominal section: 0.5 mm², Number of potentials: 33, Number of rows: 1, Number of poles per row: 33, family of articles: FFKDS(A) 0.5/.. -V, pitch: 2.54 mm, connection type: Push-in spring connection, mounting: Wave soldering, conductor connection direction/printed circuit board: 90 °, color: green, Pin arrangement: Double linear pin arrangement, Pin length [P]: 3.4 mm, packaging type: boxed packaging. The item can be aligned with different numbers of poles!

Connectors > Printed circuit board terminal
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1710544
Packing unit10 pc
Minimum order quantity50 pc
NoteMade to Order (non-returnable)
GTIN4046356078450
Weight per Piece (excluding packing)15.520 g
Custom tariff number85369010
Country of originDE (Germany)

Dimensions

Length [ l ]12.6 mm
Pitch2.54 mm
Dimension a81.28 mm
Width [ w ]86.32 mm
Height13.6 mm
Height [ h ]17 mm
Solder pin [P]3.4 mm
Pin spacing5.08 mm
Hole diameter1.1 mm

General

Range of articlesFFKDS(A) 0,5/..-V
Insulating material groupI
Rated surge voltage (III/3)2.5 kV
Rated surge voltage (III/2)2.5 kV
Rated surge voltage (II/2)2.5 kV
Rated voltage (III/3)63 V
Rated voltage (III/2)160 V
Rated voltage (II/2)320 V
Connection in acc. with standardEN-VDE
Nominal current IN6 A
Nominal cross section0.5 mm²
Maximum load current6 A
Insulating materialPA
Solder pin surface
Flammability rating according to UL 94V0
Stripping length11 mm
Number of positions33

Connection data

Conductor cross section solid min.0.14 mm²
Conductor cross section solid max.0.5 mm²
Conductor cross section flexible min.0.14 mm²
Conductor cross section flexible max.0.5 mm²
Conductor cross section AWG min.26
Conductor cross section AWG max.20

Standards and Regulations

Connection in acc. with standardEN-VDE
CSA
Flammability rating according to UL 94V0

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values
