PHOENIX CONTACT FFKDSA1/H1-5,08- 2 BD:+,- FFKDSA1/H1-5,08- 2 BD:+,- 1725478 PHOENIX CONTACT PCB terminal block View larger
Images are for illustrative purposes only. Please refer to data sheet for details

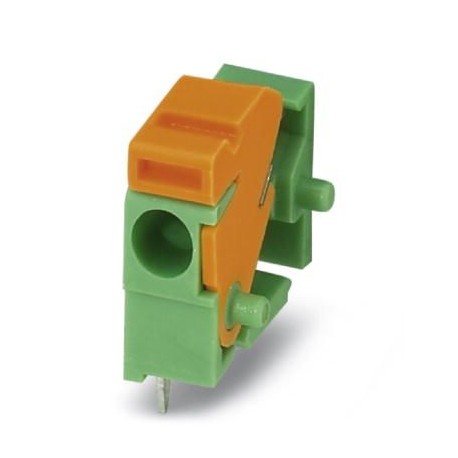

FFKDSA1/H1-5,08- 2 BD:+,- 1725478 PHOENIX CONTACT PCB terminal block

FFKDSA1/H1-5,08- 2 BD:+,-

1725478

PHOENIX CONTACT

50 Pcs.

PCB terminal block Terminal block for printed circuit board, nominal current: 15 A, dimensioning voltage (III/2): 400 V, nominal cross-section: 1.5 mm², Number of potentials: 2, Number of rows: 1, Number of poles per row: 2, article family: FFKDS(A)/H1, pitch: 5.08 mm, connection type: Push-in spring connection, mounting: Wave soldering, conductor connection direction/printed circuit board: 0°, color: green, Pin arrangement: Double linear pin arrangement, Pin length [P]: 3.4 mm, packaging type: boxed

Connectors > Printed circuit board terminal
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1725478
Packing unit50 pc
Minimum order quantity50 pc
NoteMade to Order (non-returnable)
GTIN4017918231538
Weight per Piece (excluding packing)2.070 g
Custom tariff number85369010
Country of originDE (Germany)

Dimensions

Length [ l ]13.65 mm
Pitch5.08 mm
Dimension a10.16 mm
Width [ w ]12.7 mm
Height12.75 mm
Height [ h ]16.15 mm
Solder pin [P]3.4 mm
Pin spacing7.62 mm
Hole diameter1.3 mm

General

Range of articlesFFKDS(A)/H1
Rated surge voltage (III/3)4 kV
Rated surge voltage (III/2)4 kV
Rated surge voltage (II/2)4 kV
Rated voltage (III/3)250 V
Rated voltage (III/2)320 V
Rated voltage (II/2)630 V
Connection in acc. with standardEN-VDE
Nominal current IN15 A
Nominal cross section1.5 mm²
Solder pin surface
Stripping length10 mm
Number of positions2

Connection data

Conductor cross section AWG min.24
Conductor cross section AWG max.16

Standards and Regulations

Connection in acc. with standardEN-VDE
CUL

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

Classifications


Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
