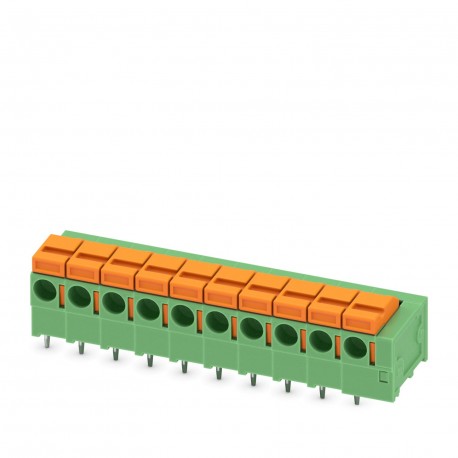

PHOENIX CONTACT FFKDSA1/H1-5,08-17 FFKDSA1/H1-5,08-17 1081777 PHOENIX CONTACT PCB terminal block FFKDSA1/H1-5,08-17 1081777 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

FFKDSA1/H1-5,08-17 1081777 PHOENIX CONTACT PCB terminal block FFKDSA1/H1-5,08-17 1081777

FFKDSA1/H1-5,08-17

1081777

PHOENIX CONTACT

50 Pcs.

PCB terminal block - FFKDSA1/H1-5,08-17 - 1081777 Terminal block for printed circuit board, nominal current: 15 A, nominal voltage (III/2): 400 V, nominal cross-section: 1.5 mm², number of potentials: 17, number of rows: 1, number of poles per row: 17, article family: FFKDS(A)/H1, pitch: 5.08 mm, connection type: Push-in spring connection, mounting: Wave soldering, conductor connection direction/printed circuit board: 0 °, color: green, Pin arrangement: Linear pin arrangement, Pin length [P]: 3.4 mm, number of solder pins per potential: 2, packaging type: boxed PCB terminal, rated current: 15 A, rated voltage (III/2): 400 V, rated cross-section: 1.5 mm2, number of potentials: 17, number of rows: 1, number of poles per row: 17, article family: FFKDS(A)/H1, pitch: 5.08 mm, connection type: Push-in spring connection, mounting: Wave soldering, conductor/printed circuit board connection direction: 0 °, color: green, Pin arrangement: Linear pin arrangement, Pin length [P]: 3.4 mm, number of solder pins per potential: 2, packaging type: boxed

Connectors > Printed circuit board terminal
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

PCB terminal block, nominal current: 15 A, nom. voltage: 320 V, pitch: 5.08 mm, number of positions: 17, connection method: Push-in spring connection, mounting: Wave soldering, conductor/PCB connection direction: 0 °, color: green

Key Commercial Data

Orderkey1081777
Packing unit1
GTIN4055626810720
Custom tariff number85369010

Dimensions

Length [ l ]13.65 mm
Pitch5.08 mm
Dimension a86.36 mm
Width [ w ]88.9 mm
Height12.75 mm
Height [ h ]16.15 mm
Solder pin [P]3.4 mm
Pin spacing7.62 mm
Hole diameter1.3 mm

General

Range of articlesFFKDS(A)/H1
Nominal cross section1.5 mm²
Solder pin surface
Stripping length10 mm
Number of positions17

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

Classifications

eCl@ss

eCl@ss 8.027440401
eCl@ss 9.027440401

ETIM

ETIM 5.0EC002643
