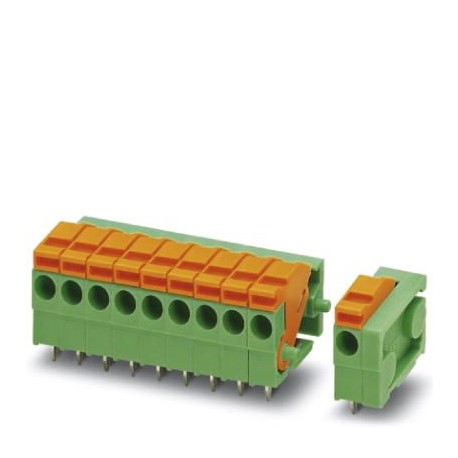

PHOENIX CONTACT FFKDSA1/H-3,81/5,08- 5 FFKDSA1/H-3,81/5,08- 5 1736955 PHOENIX CONTACT PCB terminal block View larger
Images are for illustrative purposes only. Please refer to data sheet for details

FFKDSA1/H-3,81/5,08- 5 1736955 PHOENIX CONTACT PCB terminal block

FFKDSA1/H-3,81/5,08- 5

1736955

PHOENIX CONTACT

50 Pcs.

PCB terminal block Terminal block for printed circuit board, nominal current: 12 A, dimensioning voltage (III/2): 160 V, nominal section: 1 mm², Number of potentials: 5, Number of rows: 1, Number of poles per row: 5, family of articles: FFKDS(A) 1.5/.. -H, pitch: 3.81 mm, connection type: Push-in spring connection, mounting: Wave soldering, conductor connection direction/printed circuit board: 0 °, color: green, Pin arrangement: Double linear pin arrangement, Pin length [P]: 3.4 mm, packaging type: boxed

Connectors > Printed circuit board terminal
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1736955
Packing unit50 pc
Minimum order quantity50 pc
NoteMade to Order (non-returnable)
GTIN4046356183789
Weight per Piece (excluding packing)4.560 g
Custom tariff number85369010
Country of originGR (Greece)

Dimensions

Length [ l ]13.65 mm
Pitch3.81 mm
Dimension a15.24 mm
Width [ w ]21.55 mm
Height12.7 mm
Height [ h ]16.1 mm
Solder pin [P]3.4 mm
Pin spacing5.08 mm
Hole diameter1.3 mm

General

Range of articlesFFKDS(A) 1,5/..-H
Rated surge voltage (III/3)2.5 kV
Rated surge voltage (III/2)2.5 kV
Rated surge voltage (II/2)2.5 kV
Rated voltage (III/3)160 V
Rated voltage (III/2)160 V
Rated voltage (II/2)320 V
Connection in acc. with standardEN-VDE
Nominal current IN12 A
Nominal cross section1 mm²
Solder pin surface
Stripping length10 mm
Number of positions5

Connection data

Conductor cross section AWG min.26
Conductor cross section AWG max.18

Standards and Regulations

Connection in acc. with standardEN-VDE

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values
