PHOENIX CONTACT FFKDSA1/H-3,81-23 BD:1-41 FFKDSA1/H-3,81-23 BD:1-41 1706586 PHOENIX CONTACT Terminal block for printed circuit board, rated current: 1.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

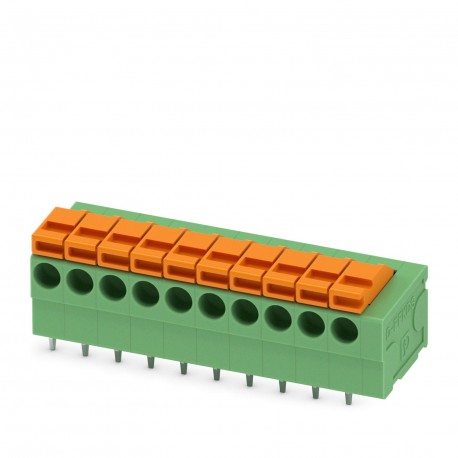

FFKDSA1/H-3,81-23 BD:1-41 1706586 PHOENIX CONTACT Terminal block for printed circuit board, rated current: 1..

FFKDSA1/H-3,81-23 BD:1-41

1706586

PHOENIX CONTACT

50 Pcs.

Terminal block for printed circuit board, rated current: 12 A, rated voltage: 160 V, pitch: 3.81 mm, number of poles: 23, connection type: Push-in spring connection, mounting: Wave soldering, conductor/printed circuit board connection direction: 0 °, color: green Terminal block for printed circuit board, nominal current: 12 A, dimensioning voltage (III/2): 160 V, nominal section: 1 mm², Number of potentials: 23, Number of rows: 1, Number of poles per row: 23, article family: FFKDS(A) 1.5/.. -H, pitch: 3.81mm, connection type: Push-in spring connection, mounting: Wave soldering, conductor/PCB connection direction: 0°, color: green, Pin arrangement: Linear double pin arrangement, Pin length [P]: 3.4mm, packaging type: boxed Printed circuit board terminal, rated current: 12 A, rated voltage (III/2): 160 V, rated cross-section: 1 mm2, number of potentials: 23, number of rows: 1, number of poles per row: 23, article family: FFKDS(A) 1.5/.. -H, pitch: 3.81 mm, connection type: Push-in spring connection, mounting: Wave soldering, conductor/printed circuit board connection direction: 0 °, Pin arrangement: Double linear pin arrangement, Pin length [P]: 3.4 mm, number of solder pins per potential: 2, packaging type: boxed

Connectors > Printed circuit board terminal
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

PCB terminal block, nominal current: 12 A, nom. voltage: 160 V, pitch: 3.81 mm, number of positions: 23, connection method: Push-in spring connection, mounting: Wave soldering, conductor/PCB connection direction: 0 °, color: green

General

Range of articlesFFKDS(A) 1,5/..-H
Rated surge voltage (III/3)2.5 kV
Rated surge voltage (III/2)2.5 kV
Rated surge voltage (II/2)2.5 kV
Rated voltage (III/3)160 V
Rated voltage (III/2)160 V
Rated voltage (II/2)320 V
Connection in acc. with standardEN-VDE
Nominal current IN12 A
Nominal cross section1 mm²
Solder pin surfaceSn
Stripping length10 mm
Number of positions23

Connection data

Conductor cross section AWG min.26
Conductor cross section AWG max.18

Standards and Regulations

Connection in acc. with standardEN-VDE

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

eCl@ss

eCl@ss 4.027141109
eCl@ss 4.127141109
eCl@ss 5.027141190
eCl@ss 5.127141190
eCl@ss 6.027261101
eCl@ss 7.027440401
eCl@ss 8.027440401
eCl@ss 9.027440401

ETIM

ETIM 4.0EC002643
ETIM 5.0EC002643
ETIM 6.0EC002643

UNSPSC

UNSPSC 6.0130211801
UNSPSC 7.090139121432
UNSPSC 1139121432
UNSPSC 12.0139121432
UNSPSC 13.239121432

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
