View larger
Images are for illustrative purposes only. Please refer to data sheet for details

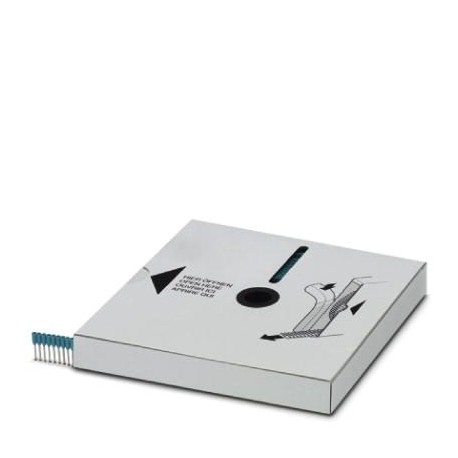

AI 0,34-8 TQ-B 3240249 PHOENIX CONTACT Ferrule
AI 0,34-8 TQ-B
3240249
PHOENIX CONTACT
1000 Pcs.
Ferrule
Toe caps, tape, 0.34 mm², cuff length 8 mm, colour: turquoise (requires CF 3000-TOOLKIT 0.25)
Cables > Cable end sleeve
Ferrules
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 3240249 |
|---|---|
| Packing unit | 1000 pc |
| Minimum order quantity | 1000 pc |
| Catalog page | Page 517 (C-3-2017) |
| GTIN | 4046356461405 |
| Weight per Piece (excluding packing) | 0.050 g |
| Custom tariff number | 85369010 |
| Country of origin | DE (Germany) |
Dimensions
| Length (b) | 14 mm |
|---|---|
| Maximum stripping length | 10 mm |
| Sleeve length | 8 mm |
| Inner dimension of the insulating collar (d) | 2.2 mm |
| Ferrule diameter | 0.8 mm |
| Insulating collar thickness | 0.25 mm |
| Sleeve wall thickness | 0.15 mm |
Ambient conditions
| Short-term temperature | 120 °C |
|---|---|
| Max. permanent temperature | 105 °C (-40°C no load / 0°C dynamic load) |
General
| Color | turquoise |
|---|---|
| Components | free from silicone and halogen |
| Flammability rating according to UL 94 | HB |
| Material | CU-DHP |
| Coating | tin-plated (galvanic) |
Standards and Regulations
| Connection in acc. with standard | CSA |
|---|---|
| Flammability rating according to UL 94 | HB |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
eCl@ss 4.027060701eCl@ss 4.127060701eCl@ss 5.027400201eCl@ss 5.127400200eCl@ss 6.027400200eCl@ss 7.027400201eCl@ss 8.027400201eCl@ss 9.027400201
| Feature Name | Feature Value |
|---|---|
| Construction type (EF000767) | Standard |
| Nominal cross section (EF001335) | 0.34 mm² |
| Sleeve length (EF000014) | 12.5 mm |
| Insulated (EF000019) | Yes |
| Material insulation (EF008118) | Other |
| Halogen free (EF000025) | Yes |
| Colour (EF000007) | Turquoise |
| Surface protection (EF000139) | Other |
| For cables resistant to short circuit (EF001713) | No |
| With identification flag (EF007954) | No |
| AWG size (EF011789) | 22 |
