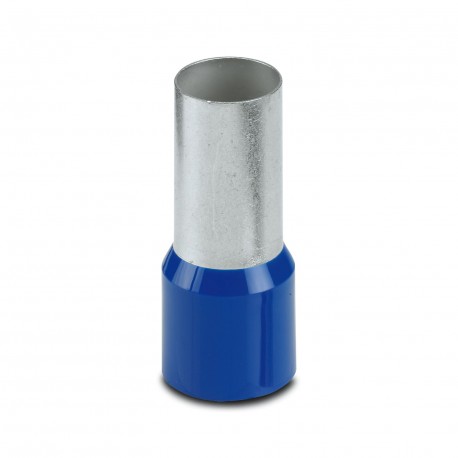

AI120 -27 BU 3201822 PHOENIX CONTACT Ferrule
AI120-27 BU
3201822
PHOENIX CONTACT
25 Pcs.
Ferrule
Toe cap, cuff length: 27 mm, length: 48 mm, colour: blue
Ferrule, sleeve length: 48 mm, color: blue
Cables > Cable end sleeve
Ferrules
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Technical data
Notes
| General | Ferrules are not included in DIN 46228-4: 1990-09 |
Product properties
| Product type | Cable end sleeve |
| Data management status | |
| Article revision | 02 |
Connection data
| Conductor connection | |
| Conductor cross section flexible max. | 120 mm² |
| Conductor cross section AWG max. | 5 |
| Stripping length | 32 mm |
Dimensions
| Dimensional drawing |  |
| Sleeve length | 48 mm |
| Length contact range | 27 mm |
| Maximum stripping length | 32 mm |
| Ferrule diameter | 16.7 mm |
| Sleeve wall thickness | 0.45 mm |
| Insulating collar thickness | 0.7 mm |
| Inner dimensions of the insulating collar | 21 mm |
Material specifications
| Color | blue (RAL 5015) |
| Material | E-CU |
| Flammability rating according to UL 94 | HB |
| Coating | tin-plated (galvanic) |
| Surface characteristics | Tin-plated |
| Components | free from silicone and halogen |
Mechanical properties
| Technical data | |
| Sleeve length | 48 mm |
Environmental and real-life conditions
| Ambient conditions | |
| Permanent temperature | 105 °C (-40 °C no load / 0 °C dynamic load) |
| Short-term temperature | 120 °C |
Standards and regulations
| Design according to standard | Special color |
| Feature Name | Feature Value |
|---|---|
| Construction type (EF000767) | Standard |
| Nominal cross section (EF001335) | 120 mm² |
| Sleeve length (EF000014) | 48 mm |
| Insulated (EF000019) | Yes |
| Material insulation (EF008118) | Other |
| Halogen free (EF000025) | Yes |
| Colour (EF000007) | Blue |
| Surface protection (EF000139) | Other |
| For cables resistant to short circuit (EF001713) | No |
| With identification flag (EF007954) | No |
| AWG size (EF011789) | Other |
