View larger
Images are for illustrative purposes only. Please refer to data sheet for details

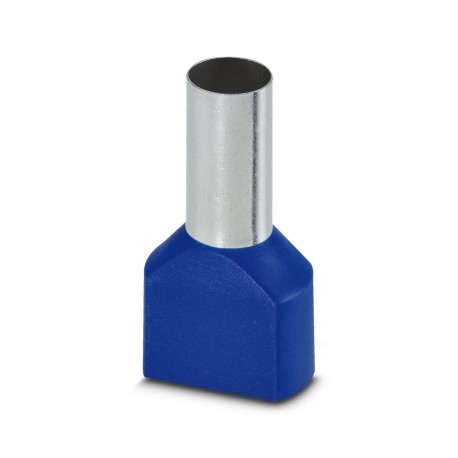

AI-TWIN 2X16 -16 BU 3202847 PHOENIX CONTACT Ferrule
AI-TWIN 2X16-16 BU
3202847
PHOENIX CONTACT
50 Pcs.
Ferrule
Toe cap, cuff length: 16 mm, length: 31 mm, colour: blue
Ferrule, sleeve length: 30 mm, color: blue
Cables > Cable end sleeve
Ferrules
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Technical data
Product properties
| Product type | Cable end sleeve |
| Conductor category | stranded conductors, class 2, 5, 6 / B, C, K, M |
| Data management status | |
| Article revision | 03 |
Connection data
| Conductor connection | |
| Conductor cross section flexible max. | 16 mm² |
| Conductor cross section AWG max. | 6 |
| Stripping length | 21 mm |
Dimensions
| Dimensional drawing |  |
| Sleeve length | 30 mm |
| Length contact range | 16 mm |
| Maximum stripping length | 21 mm |
| Ferrule diameter | 8.5 mm |
| Sleeve wall thickness | 0.2 mm |
| Insulating collar thickness | 0.5 mm |
| Inner dimensions of the insulating collar | 8.8 mm |
Material specifications
| Color | blue (RAL 5015) |
| Material | CU-DHP |
| Flammability rating according to UL 94 | HB |
| Coating | tin-plated (galvanic) |
| Surface characteristics | Tin-plated |
| Components | free from silicone and halogen |
Mechanical properties
| Technical data | |
| Sleeve length | 30 mm |
Environmental and real-life conditions
| Ambient conditions | |
| Permanent temperature | 105 °C (-40 °C no load / 0 °C dynamic load) |
| Short-term temperature | 120 °C |
| Feature Name | Feature Value |
|---|---|
| Construction type (EF000767) | Twin cable end sleeve |
| Nominal cross section (EF001335) | 16 mm² |
| Sleeve length (EF000014) | 30 mm |
| Insulated (EF000019) | Yes |
| Material insulation (EF008118) | Other |
| Halogen free (EF000025) | Yes |
| Colour (EF000007) | Blue |
| Surface protection (EF000139) | Other |
| For cables resistant to short circuit (EF001713) | No |
| With identification flag (EF007954) | No |
| AWG size (EF011789) | 6 |
