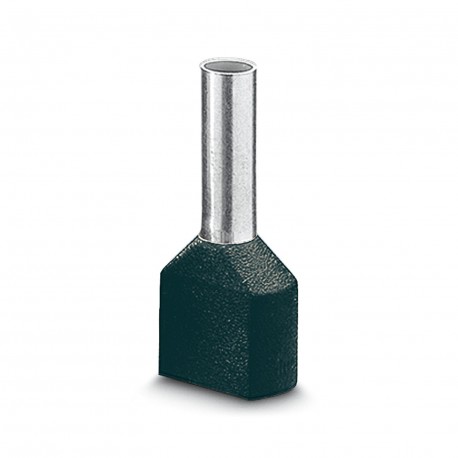

PHOENIX CONTACT AI-TWIN 2X 1,5-8 BK AI-TWIN 2X 1,5 8 BK 3200823 PHOENIX CONTACT Ferrule AI-TWIN 2X 1,5 8 BK View larger
Images are for illustrative purposes only. Please refer to data sheet for details

AI-TWIN 2X 1,5 8 BK 3200823 PHOENIX CONTACT Ferrule AI-TWIN 2X 1,5 8 BK

AI-TWIN 2X 1,5-8 BK

3200823

PHOENIX CONTACT

100 Pcs.

Ferrule AI-TWIN 2X 1,5 8 BK Toe cap, cuff length: 8 mm, length: 16 mm, colour: black Toe cap, cuff length: 16 mm, colour: black

Cables > Cable end sleeve
Ferrules

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey3200823
Packing unit100 pc
Minimum order quantity100 pc
Catalog pagePage 486 (C-3-2017)
GTIN4017918094379
Weight per Piece (excluding packing)0.190 g
Custom tariff number85369010
Country of originDE (Germany)

Dimensions

Length (b)16 mm
Maximum stripping length12 mm
Sleeve length8 mm
Inner dimension of the insulating collar (d)3.6 mm
Ferrule diameter2.3 mm
Insulating collar thickness0.3 mm
Sleeve wall thickness0.15 mm

Ambient conditions

Short-term temperature120 °C
Max. permanent temperature105 °C (-40°C no load / 0°C dynamic load)

General

Colorblack
Componentsfree from silicone and halogen
Flammability rating according to UL 94HB
MaterialCU-DHP
Coatingtin-plated (galvanic)
Conductor categoryStranded conductors, class 2, 5, 6 / B, C, K, M

Standards and Regulations

Connection in acc. with standardCSA
Flammability rating according to UL 94HB

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values
