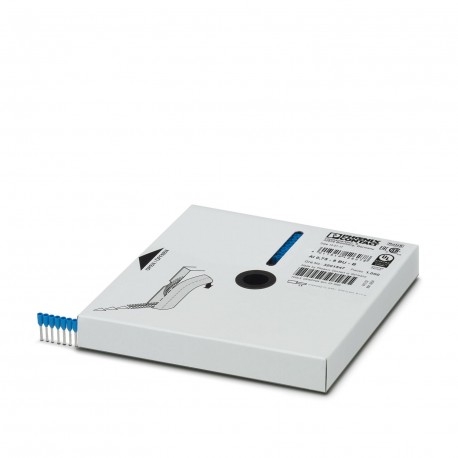

PHOENIX CONTACT AI 0,75-8 BU-B AI 0,75- 8 BU-B 3201547 PHOENIX CONTACT Ferrule View larger
Images are for illustrative purposes only. Please refer to data sheet for details

AI 0,75- 8 BU-B 3201547 PHOENIX CONTACT Ferrule

AI 0,75-8 BU-B

3201547

PHOENIX CONTACT

1000 Pcs.

Ferrule Toe cap, cuff length: 8 mm, length: 14 mm, colour: blue Ferrule, sleeve length: 14 mm, color: blue

Cables > Cable end sleeve
Ferrules

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Technical data
Product properties
Product typeCable end sleeve
Conductor categorystranded conductors, class 2, 5, 6 / B, C, K, M
Data management status
Article revision05
Connection data
Conductor connection
Conductor cross section flexible max.0.75 mm²
Conductor cross section AWG max.18
Stripping length11 mm
Dimensions
Dimensional drawingytippobpxo.jpg
Sleeve length14 mm
Length contact range8 mm
Maximum stripping length11 mm
Ferrule diameter1.3 mm
Sleeve wall thickness0.15 mm
Insulating collar thickness0.25 mm
Inner dimensions of the insulating collar2.8 mm
Material specifications
Colorblue (RAL 5015)
MaterialCU-DHP
Flammability rating according to UL 94HB
Coatingtin-plated (galvanic)
Surface characteristicsTin-plated
Componentsfree from silicone and halogen
Mechanical properties
Technical data
Sleeve length14 mm
Environmental and real-life conditions
Ambient conditions
Permanent temperature105 °C (-40 °C no load / 0 °C dynamic load)
Short-term temperature120 °C
Standards and regulations
Design according to standardUL 486F-E, NF C 63-023
