View larger
Images are for illustrative purposes only. Please refer to data sheet for details

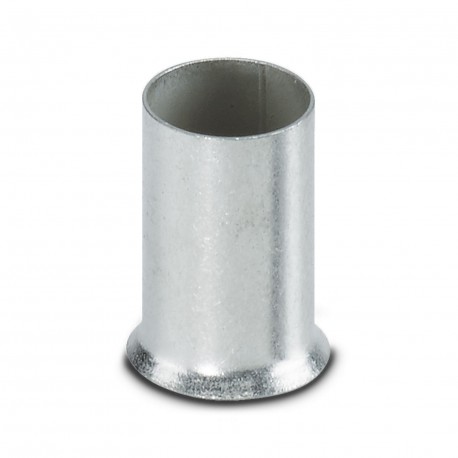

A 25 -12 3200357 PHOENIX CONTACT Ferrule
A 25-12
3200357
PHOENIX CONTACT
100 Pcs.
Ferrule
Toe cap, length: 12 mm, colour: silver
Ferrule, sleeve length: 12 mm, color: silver
Cables > Cable end sleeve
Ferrules
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Technical data
Notes
| General | These ferrules are not included in DIN 46228-1: 1992-08 |
Product properties
| Product type | Cable end sleeve |
| Conductor category | stranded conductors, class 2, 5, 6 / B, C, K, M |
| Data management status | |
| Article revision | 04 |
Connection data
| Conductor connection | |
| Conductor cross section flexible max. | 25 mm² |
| Conductor cross section AWG max. | 4 |
| Stripping length | 12 mm |
Dimensions
| Dimensional drawing |  |
| Sleeve length | 12 mm |
| Length contact range | 12 mm |
| Maximum stripping length | 12 mm |
| Ferrule diameter | 7.3 mm |
| Sleeve wall thickness | 0.2 mm |
| Inner dimensions of the insulating collar | 9.5 mm |
Material specifications
| Color | silver-colored |
| Material | CU-DHP |
| Coating | tin-plated (galvanic) |
| Surface characteristics | Tin-plated |
Mechanical properties
| Technical data | |
| Sleeve length | 12 mm |
Environmental and real-life conditions
| Ambient conditions | |
| Permanent temperature | 105 °C |
| Short-term temperature | 120 °C |
| Feature Name | Feature Value |
|---|---|
| Nominal cross section (EF001335) | 25 mm² |
| Sleeve length (EF000014) | 12 mm |
| Insulated (EF000019) | No |
| Halogen free (EF000025) | No |
| Surface protection (EF000139) | Other |
| For cables resistant to short circuit (EF001713) | No |
| With identification flag (EF007954) | No |
| AWG size (EF011789) | 4 |
