View larger
Images are for illustrative purposes only. Please refer to data sheet for details

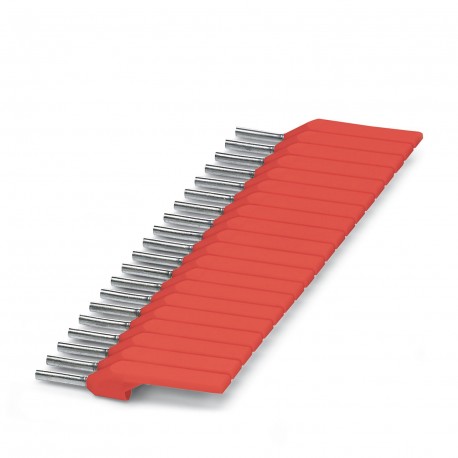

AI-WM 1-8 RD 3240544 PHOENIX CONTACT Ferrule
AI-WM 1-8 RD
3240544
PHOENIX CONTACT
780 Pcs.
Ferrule
Toe cap with insulating letterable collar. The dropouts can be labelled with BLUEMARK when the feeder is used.
Ferrule with insulating collar that can be labeled. When using the magazine, the ferrules can be labeled with BLUEMARK.
Cables > Cable end sleeve
Ferrules
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Technical data
Product properties
| Product type | Cable end sleeve |
| Data management status | |
| Article revision | 01 |
Dimensions
| Dimensional drawing |  |
| Width | 4.6 mm |
| Sleeve length | 8 mm |
| Ferrule diameter | 1.8 mm |
| Sleeve wall thickness | 0.15 mm |
| Inner dimensions of the insulating collar | 3 mm |
| Internal dimensions | |
| Internal diameter | 1.5 mm |
Material specifications
| Color | red (RAL 3001) |
| Material | E-CU |
| Flammability rating according to UL 94 | HB |
| Coating | tin-plated (galvanic) |
| Surface characteristics | Tin-plated |
| Components | free from silicone and halogen |
Cable/line
| External cable diameter | = 1.20 mm |
Mechanical properties
| Technical data | |
| Sleeve length | 8 mm |
Environmental and real-life conditions
| Ambient conditions | |
| Ambient temperature (operation) | -40 °C ... 120 °C |
| Permanent temperature | 105 °C (-40 °C no load / 0 °C dynamic load) |
| Short-term temperature | 120 °C |
| Feature Name | Feature Value |
|---|---|
| Construction type (EF000767) | Standard |
| Nominal cross section (EF001335) | 1 mm² |
| Sleeve length (EF000014) | 8 mm |
| Insulated (EF000019) | Yes |
| Material insulation (EF008118) | Other |
| Halogen free (EF000025) | Yes |
| Colour (EF000007) | Red |
| Surface protection (EF000139) | Other |
| For cables resistant to short circuit (EF001713) | No |
| With identification flag (EF007954) | Yes |
