View larger
Images are for illustrative purposes only. Please refer to data sheet for details
MCC-MT 0,2-0,35 1859988 PHOENIX CONTACT Accessories
MCC-MT 0,2-0,35
1859988
PHOENIX CONTACT
100 Pcs.
Accessories

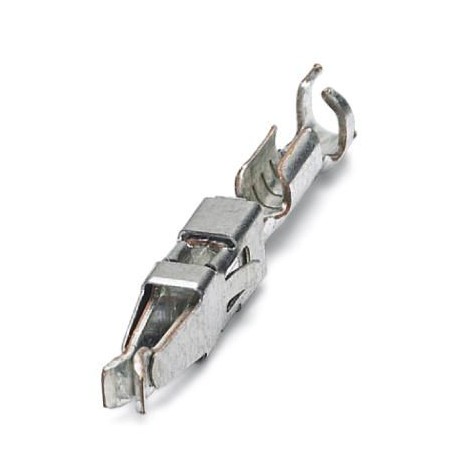

Female contact, inserted into the plug-in part after crimping the conductor, for MCC 1...-STZ-3.81 and MCC 1...--STZF-3.81 modular housings, for the cross-section range from 0.2 mm² to 0.34 mm²
Connectors > Contact for industrial connectors
PCB Connectors (PCC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1859988 |
|---|---|
| Packing unit | 100 pc |
| Minimum order quantity | 100 pc |
| Catalog page | Page 827 (C-1-2013) |
| GTIN | 4017918109721 |
| Weight per Piece (excluding packing) | 0.330 g |
| Custom tariff number | 85366990 |
| Country of origin | DE (Germany) |
General
| Nominal current | 5 A |
|---|---|
| Conductor cross section flexible min. | 0.2 mm² |
| Max. conductor cross section, flexible | 0.35 mm² |
Connection data
| Core diameter including insulation | 1.1 mm ... 1.3 mm |
|---|---|
| Stripping length of individual wires | 4 mm |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
eCl@ss 4.0272607xxeCl@ss 4.127260701eCl@ss 5.027260701eCl@ss 5.127261200eCl@ss 6.027261200eCl@ss 7.027440204eCl@ss 8.027440204eCl@ss 9.027440204
| Feature Name | Feature Value |
|---|---|
| Max. rated current of one contact (EF007368) | 4 A |
| Connectable conductor cross section fine-strand without cable end sleeve (EF007341) | 0.2 mm² |
