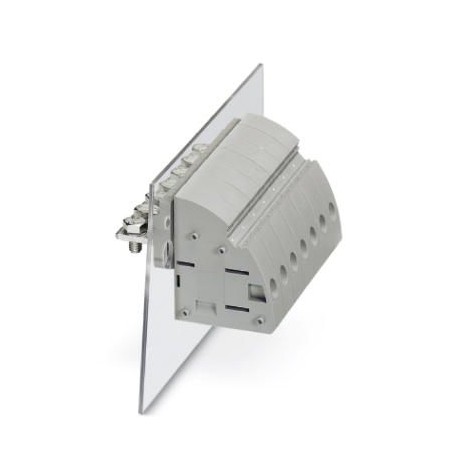

PHOENIX CONTACT UWV 25-POT/S UWV 25-POT/S 3073571 PHOENIX CONTACT Panel feed-through terminal block View larger
Images are for illustrative purposes only. Please refer to data sheet for details

UWV 25-POT/S 3073571 PHOENIX CONTACT Panel feed-through terminal block

UWV 25-POT/S

3073571

PHOENIX CONTACT

25 Pcs.

Panel feed-through terminal block Terminal block, connection type: Screw connection with traction capsule, Terminal connection, number of poles: 1, charging current: 101 A, cross-section: 6 mm² - 35 mm², conductor connection direction with respect to the plug direction: -90 °, width: 15 mm

Automation > Panel feed-through terminal block
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey3073571
Packing unit25 pc
NoteMade to Order (non-returnable)
Catalog pagePage 615 (C-1-2013)
GTIN4046356344814
Weight per Piece (excluding packing)39.500 g
Custom tariff number85369010
Country of originCN (China)

General

Number of levels1
Number of connections2
Nominal cross section25 mm²
Colorgray
Insulating materialPA
Flammability rating according to UL 94V0
Maximum load current125 A
Rated surge voltage6 kV
Degree of pollution3
Overvoltage categoryIII
Insulating material groupI
Connection in acc. with standardIEC 60947-7-1
Nominal current IN101 A
Maximum load current125 A
Nominal voltage UN800 V
Open side panelNo
Number of positions1

Dimensions

Width15.1 mm
Pitch15.1 mm
Plate thickness1 mm ... 6 mm

Connection data

NoteTerminal sleeve
Connection sideoutside
Connection methodScrew connection
NoteNote: Product releases, connection cross sections and notes on connecting aluminum cables can be found in the download area.
Conductor cross section solid min.6 mm²
Conductor cross section solid max.35 mm²
Conductor cross section flexible min.10 mm²
Conductor cross section flexible max.25 mm²
Conductor cross section AWG min.10
Conductor cross section AWG max.2
Conductor cross section flexible, with ferrule without plastic sleeve min.4 mm²
Conductor cross section flexible, with ferrule without plastic sleeve max.25 mm²
Conductor cross section flexible, with ferrule with plastic sleeve min.4 mm²
Conductor cross section flexible, with ferrule with plastic sleeve max.25 mm²
2 conductors with same cross section, solid min.2.5 mm²
2 conductors with same cross section, solid max.10 mm²
2 conductors with same cross section, stranded min.4 mm²
2 conductors with same cross section, stranded max.10 mm²
2 conductors with same cross section, stranded, ferrules without plastic sleeve, min.2.5 mm²
2 conductors with same cross section, stranded, ferrules without plastic sleeve, max.10 mm²
2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, min.2.5 mm²
2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, max.10 mm²
Stripping length19 mm
Internal cylindrical gageB7
Screw threadM5
Tightening torque, min4 Nm
Tightening torque max4.5 Nm
Connection sideinside
Connection methodCable lug connection
Tightening torque, min4 Nm
Tightening torque max4.5 Nm

Standards and Regulations

Connection in acc. with standardUL
IEC 60947-7-1
Flammability rating according to UL 94V0

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

Classifications


ETIM for 3073571 Terminal blocks (EC001283)
Feature Name Feature Value
Connectable conductor cross section fine-strand without cable end sleeve (EF007341) 10 mm²
Connectable conductor cross section fine-strand with cable end sleeve (EF007339) 4 mm²
Connectable conductor cross section solid-core (EF007337) 6 mm²
Connectable conductor cross section multi-wired (EF007343) 2.5 mm²
Rated voltage (EF000228) 800 V
Type of electrical connection 1 (EF002526) Screw connection
Number of poles (EF001391) 1
Material insulation body (EF007543) Other
Inflammability class of insulation material according to UL94 (EF002521) V0
Colour (EF000007) Grey
