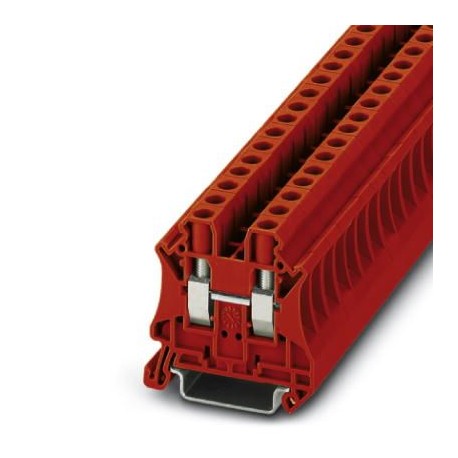

UT 6 RD 3045185 PHOENIX CONTACT Feed-through terminal block

UT 6 RD

3045185

PHOENIX CONTACT

50 Pcs.

Feed-through terminal block Feed-through terminal, nominal voltage: 1000 V, nominal current: 41 A, number of connections: 2, connection type: Screw connection, Sizing cross-section: 6 mm², cross-section: 0.2 mm² - 10 mm², mounting class: NS 35/7.5, NS 35/15, color: red

Automation > Feed-through terminal block
Modular TBs

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey3045185
Packing unit50 pc
Minimum order quantity50 pc
Catalog pagePage 27 (C-3-2013)
GTIN4017918975524
Weight per Piece (excluding packing)13.820 g
Custom tariff number85369010
Country of originDE (Germany)

General

Number of levels1
Number of connections2
Potentials1
Nominal cross section6 mm²
Colorred
Insulating materialPA
Flammability rating according to UL 94V0
Area of applicationMachine building
Plant engineering
Process industry
Rated surge voltage8 kV
Degree of pollution3
Overvoltage categoryIII
Insulating material groupI
Maximum power dissipation for nominal condition1.31 W
Maximum load current57 A (with 10 mm² conductor cross section)
Nominal current IN41 A
Nominal voltage UN1000 V
Open side panelYes

Dimensions

Width8.2 mm
End cover width2.2 mm
Length47.7 mm
Height NS 35/7,547.5 mm
Height NS 35/1555 mm

Connection data

Connection methodScrew connection
Screw threadM4
Stripping length10 mm
Tightening torque, min1.5 Nm
Tightening torque max1.8 Nm
Connection in acc. with standardIEC 60947-7-1
NoteNote: Product releases, connection cross sections and notes on connecting aluminum cables can be found in the download area.
Conductor cross section solid min.0.2 mm²
Conductor cross section solid max.10 mm²
Conductor cross section AWG min.24
Conductor cross section AWG max.8
Conductor cross section flexible min.0.2 mm²
Conductor cross section flexible max.10 mm²
Min. AWG conductor cross section, flexible24
Max. AWG conductor cross section, flexible8
Conductor cross section flexible, with ferrule without plastic sleeve min.0.25 mm²
Conductor cross section flexible, with ferrule without plastic sleeve max.6 mm²
Conductor cross section flexible, with ferrule with plastic sleeve min.0.25 mm²
Conductor cross section flexible, with ferrule with plastic sleeve max.6 mm²
2 conductors with same cross section, solid min.0.2 mm²
2 conductors with same cross section, solid max.2.5 mm²
2 conductors with same cross section, stranded min.0.2 mm²
2 conductors with same cross section, stranded max.2.5 mm²
2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, min.0.5 mm²
2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, max.4 mm²
2 conductors with same cross section, stranded, ferrules without plastic sleeve, min.0.25 mm²
2 conductors with same cross section, stranded, ferrules without plastic sleeve, max.1.5 mm²
Connection in acc. with standardIEC/EN 60079-7
Conductor cross section solid min.0.2 mm²
Conductor cross section solid max.10 mm²
Conductor cross section AWG min.24
Conductor cross section AWG max.8
Conductor cross section flexible min.0.2 mm²
Conductor cross section flexible max.6 mm²
Internal cylindrical gageA5

Standards and Regulations

Connection in acc. with standardCSA
IEC 60947-7-1
Flammability rating according to UL 94V0

Environmental Product Compliance

China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications


ETIM for 3045185 Terminal blocks (EC000897)
Feature Name Feature Value
Connectable conductor cross section fine-strand without cable end sleeve (EF007341) 0.2 mm²
Connectable conductor cross section fine-strand with cable end sleeve (EF007339) 0.25 mm²
Connectable conductor cross section solid-core (EF007337) 0.2 mm²
Connectable conductor cross section multi-wired (EF007343) 0.2 mm²
Rated current In (EF008250) 41 A
Rated voltage (EF000228) 1000 V
Type of electrical connection 1 (EF002526) Screw connection
Type of electrical connection 2 (EF002527) Screw connection
Number of clamp positions per level (EF002660) 2
Suitable for conductor material (EF012572) Aluminium/copper
Mounting method (EF000003) DIN rail (top hat rail) 35 mm
Material insulation body (EF007543) Other
Operating temperature (EF002393) -60 °C
Inflammability class of insulation material according to UL94 (EF002521) V0
Width (EF000008) 8.2 mm
Height (EF000040) 47.7 mm
Depth (EF000049) 47.5 mm
Explosion-tested version 'Ex e' (EF008498) Yes
Closing plate required (EF002525) Yes
Colour (EF000007) Red
Internally connected stages (EF002661) Yes

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
