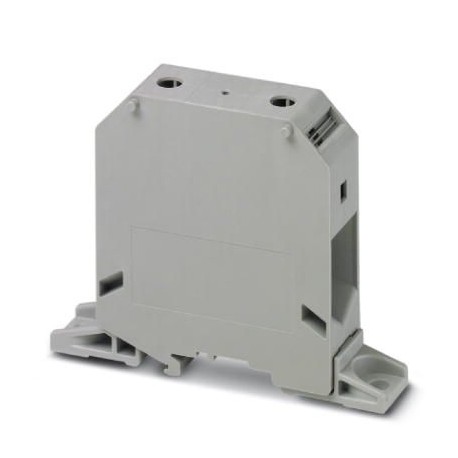

PHOENIX CONTACT UKH 95-F UKH 95-F 3247022 PHOENIX CONTACT High-current terminal block View larger
Images are for illustrative purposes only. Please refer to data sheet for details

UKH 95-F 3247022 PHOENIX CONTACT High-current terminal block

UKH 95-F

3247022

PHOENIX CONTACT

10 Pcs.

High-current terminal block Current terminal, nominal voltage: 1000 V, nominal current: 232 A, number of connections: 2, connection type: Screw connection, Sizing cross-section: 95 mm², cross-section: 25 mm² - 95 mm², mounting class: direct screwed, color: gray

Automation > Feed-through terminal block
Modular TBs

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey3247022
Packing unit10 pc
Catalog pagePage 263 (C-1-2017)
GTIN4046356607254
Weight per Piece (excluding packing)230.090 g
Custom tariff number85369010
Country of originIN (India)

General

Number of levels1
Number of connections2
Potentials1
Nominal cross section95 mm²
Colorgray
Insulating materialPA
Flammability rating according to UL 94V0
Rated surge voltage8 kV
Degree of pollution3
Overvoltage categoryIII
Insulating material groupI
Maximum power dissipation for nominal condition7.54 W
Maximum load current232 A
Nominal current IN232 A
Nominal voltage UN1000 V
Open side panelNo
Relative insulation material temperature index (Elec., UL 746 B)130 °C
Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21))130 °C
Static insulating material application in cold-60 °C
Behavior in fire for rail vehicles (DIN 5510-2)Test passed
Flame test method (DIN EN 60695-11-10)V0
Oxygen index (DIN EN ISO 4589-2)>32 %
NF F16-101, NF F10-102 Class I2
NF F16-101, NF F10-102 Class F2
Surface flammability NFPA 130 (ASTM E 162)passed
Specific optical density of smoke NFPA 130 (ASTM E 662)passed
Smoke gas toxicity NFPA 130 (SMP 800C)passed
Calorimetric heat release NFPA 130 (ASTM E 1354)28 MJ/kg
Fire protection for rail vehicles (DIN EN 45545-2) R22HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R23HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R24HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R26HL 1 - HL 3

Dimensions

Width25 mm
Length118.8 mm
Height90 mm

Connection data

NoteScrews with hexagonal socket
Connection methodScrew connection
Screw threadM8
Stripping length33 mm
Tightening torque, min15 Nm
Tightening torque max20 Nm
Connection in acc. with standardIEC 60947-7-1
NoteNote: Product releases, connection cross sections and notes on connecting aluminum cables can be found in the download area.
Conductor cross section solid min.25 mm²
Conductor cross section solid max.95 mm²
Conductor cross section AWG min.4
Conductor cross section AWG max.3/0
Conductor cross section flexible min.35 mm²
Conductor cross section flexible max.95 mm²
Min. AWG conductor cross section, flexible2
Max. AWG conductor cross section, flexible3/0
Conductor cross section flexible, with ferrule without plastic sleeve min.35 mm²
Conductor cross section flexible, with ferrule without plastic sleeve max.95 mm²
Conductor cross section flexible, with ferrule with plastic sleeve min.35 mm²
Conductor cross section flexible, with ferrule with plastic sleeve max.95 mm²
Cross section with insertion bridge, solid max.95 mm²
Cross section with insertion bridge, stranded max.70 mm²
2 conductors with same cross section, solid min.25 mm²
2 conductors with same cross section, solid max.35 mm²
2 conductors with same cross section, stranded min.25 mm²
2 conductors with same cross section, stranded max.35 mm²
2 conductors with same cross section, stranded, ferrules without plastic sleeve, min.16 mm²
2 conductors with same cross section, stranded, ferrules without plastic sleeve, max.35 mm²

Standards and Regulations

Connection in acc. with standardCUL
IEC 60947-7-1
Flammability rating according to UL 94V0
Fire protection for rail vehicles (DIN EN 45545-2) R22HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R23HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R24HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R26HL 1 - HL 3

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values
