View larger
Images are for illustrative purposes only. Please refer to data sheet for details

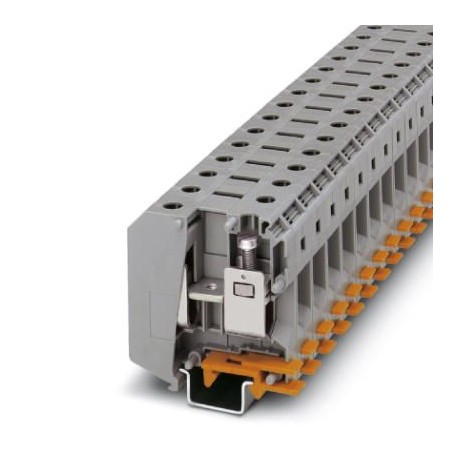

UKH 50 3009118 PHOENIX CONTACT High-current terminal block
UKH 50
3009118
PHOENIX CONTACT
1 Pcs.
High-current terminal block
Current terminal, nominal voltage: 1000 V, nominal current: 150 A, number of connections: 2, number of poles: 1, connection type: Screw connection, Sizing cross-section: 50 mm², cross-section: 16 mm² - 70 mm², mounting class: NS 35/7.5, NS 35/15, NS 32, NS 35/15-2.3, color: gray
Automation > Feed-through terminal block
Modular TBs
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 3009118 |
|---|---|
| Packing unit | 10 pc |
| Catalog page | Page 257 (C-1-2017) |
| GTIN | 4017918091644 |
| Weight per Piece (excluding packing) | 113.400 g |
| Custom tariff number | 85369010 |
| Country of origin | CN (China) |
General
| Number of levels | 1 |
|---|---|
| Number of connections | 2 |
| Potentials | 1 |
| Nominal cross section | 50 mm² |
| Color | gray |
| Insulating material | PA |
| Flammability rating according to UL 94 | V0 |
| Rated surge voltage | 8 kV |
| Degree of pollution | 3 |
| Overvoltage category | III |
| Insulating material group | I |
| Maximum power dissipation for nominal condition | 4.73 W |
| Maximum load current | 150 A (with 50 mm² conductor cross section) |
| Nominal current IN | 150 A |
| Nominal voltage UN | 1000 V |
| Open side panel | No |
| Shock protection test specification | DIN EN 50274 (VDE 0660-514):2002-11 |
| Back of the hand protection | guaranteed |
| Finger protection | guaranteed |
| Note regarding shock protection | Finger-safe protection is not guaranteed if bridges are positioned. |
| Result of surge voltage test | Test passed |
| Surge voltage test setpoint | 9.8 kV |
| Result of power-frequency withstand voltage test | Test passed |
| Power frequency withstand voltage setpoint | 2.2 kV |
| Result of the test for mechanical stability of terminal points (5 x conductor connection) | Test passed |
| Result of bending test | Test passed |
| Bending test rotation speed | 10 rpm |
| Bending test turns | 135 |
| Bending test conductor cross section/weight | 25 mm² / 4.5 kg |
| 50 mm² / 9.5 kg | |
| 70 mm²/10.4 kg | |
| Tensile test result | Test passed |
| Conductor cross section tensile test | 25 mm² |
| Tractive force setpoint | 135 N |
| Conductor cross section tensile test | 50 mm² |
| Tractive force setpoint | 236 N |
| Conductor cross section tensile test | 70 mm² |
| Tractive force setpoint | 285 N |
| Result of tight fit on support | Test passed |
| Tight fit on carrier | NS 32/NS 35 |
| Setpoint | 10 N |
| Result of voltage-drop test | Test passed |
| Requirements, voltage drop | ≤ 3.2 mV |
| Result of temperature-rise test | Test passed |
| Short circuit stability result | Test passed |
| Conductor cross section short circuit testing | 50 mm² |
| Short-time current | 6 kA |
| Result of thermal test | Test passed |
| Proof of thermal characteristics (needle flame) effective duration | 30 s |
| Relative insulation material temperature index (Elec., UL 746 B) | 130 °C |
| Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)) | 130 °C |
| Static insulating material application in cold | -60 °C |
| Behavior in fire for rail vehicles (DIN 5510-2) | Test passed |
| Flame test method (DIN EN 60695-11-10) | V0 |
| Oxygen index (DIN EN ISO 4589-2) | >32 % |
| NF F16-101, NF F10-102 Class I | 2 |
| NF F16-101, NF F10-102 Class F | 2 |
| Surface flammability NFPA 130 (ASTM E 162) | passed |
| Specific optical density of smoke NFPA 130 (ASTM E 662) | passed |
| Smoke gas toxicity NFPA 130 (SMP 800C) | passed |
| Calorimetric heat release NFPA 130 (ASTM E 1354) | 28 MJ/kg |
| Fire protection for rail vehicles (DIN EN 45545-2) R22 | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R23 | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R24 | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R26 | HL 1 - HL 3 |
Connection data
| Connection method | Screw connection |
|---|---|
| Screw thread | M6 |
| Stripping length | 24 mm |
| Tightening torque, min | 6 Nm |
| Tightening torque max | 8 Nm |
| Connection in acc. with standard | IEC 60947-7-1 |
| Note | Note: Product releases, connection cross sections and notes on connecting aluminum cables can be found in the download area. |
| Conductor cross section solid min. | 16 mm² |
| Conductor cross section solid max. | 70 mm² |
| Conductor cross section AWG min. | 6 |
| Conductor cross section AWG max. | 2/0 |
| Conductor cross section flexible min. | 25 mm² |
| Conductor cross section flexible max. | 70 mm² |
| Min. AWG conductor cross section, flexible | 3 |
| Max. AWG conductor cross section, flexible | 2/0 |
| Conductor cross section flexible, with ferrule without plastic sleeve min. | 25 mm² |
| Conductor cross section flexible, with ferrule without plastic sleeve max. | 50 mm² |
| Conductor cross section flexible, with ferrule with plastic sleeve min. | 25 mm² |
| Conductor cross section flexible, with ferrule with plastic sleeve max. | 50 mm² |
| 2 conductors with same cross section, solid min. | 10 mm² |
| 2 conductors with same cross section, solid max. | 16 mm² |
| 2 conductors with same cross section, stranded min. | 10 mm² |
| 2 conductors with same cross section, stranded max. | 16 mm² |
| 2 conductors with same cross section, stranded, ferrules without plastic sleeve, min. | 10 mm² |
| 2 conductors with same cross section, stranded, ferrules without plastic sleeve, max. | 16 mm² |
| Connection in acc. with standard | IEC/EN 60079-7 |
| Conductor cross section solid min. | 16 mm² |
| Conductor cross section solid max. | 50 mm² |
| Conductor cross section AWG min. | 6 |
| Conductor cross section AWG max. | 1/0 |
| Conductor cross section flexible min. | 25 mm² |
| Conductor cross section flexible max. | 50 mm² |
| Internal cylindrical gage | B10 |
Standards and Regulations
| Connection in acc. with standard | CSA |
|---|---|
| IEC 60947-7-1 | |
| Flammability rating according to UL 94 | V0 |
| Fire protection for rail vehicles (DIN EN 45545-2) R22 | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R23 | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R24 | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R26 | HL 1 - HL 3 |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
eCl@ss 4.027141120eCl@ss 4.127141120eCl@ss 5.027141120eCl@ss 5.127141100eCl@ss 6.027141100eCl@ss 7.027141120eCl@ss 8.027141120eCl@ss 9.027141120
| Feature Name | Feature Value |
|---|---|
| Connectable conductor cross section fine-strand without cable end sleeve (EF007341) | 25 mm² |
| Connectable conductor cross section fine-strand with cable end sleeve (EF007339) | 25 mm² |
| Connectable conductor cross section solid-core (EF007337) | 16 mm² |
| Connectable conductor cross section multi-wired (EF007343) | 10 mm² |
| Rated current In (EF008250) | 150 A |
| Rated voltage (EF000228) | 1000 V |
| Type of electrical connection 1 (EF002526) | Screw connection |
| Type of electrical connection 2 (EF002527) | Screw connection |
| Number of clamp positions per level (EF002660) | 2 |
| Suitable for conductor material (EF012572) | Aluminium/copper |
| Mounting method (EF000003) | DIN rail (top hat rail) 35 mm |
| Material insulation body (EF007543) | Other |
| Operating temperature (EF002393) | -60 °C |
| Inflammability class of insulation material according to UL94 (EF002521) | V0 |
| Width (EF000008) | 20 mm |
| Height (EF000040) | 70.5 mm |
| Depth (EF000049) | 76 mm |
| Explosion-tested version 'Ex e' (EF008498) | Yes |
| Closing plate required (EF002525) | No |
| Colour (EF000007) | Grey |
| Internally connected stages (EF002661) | Yes |
