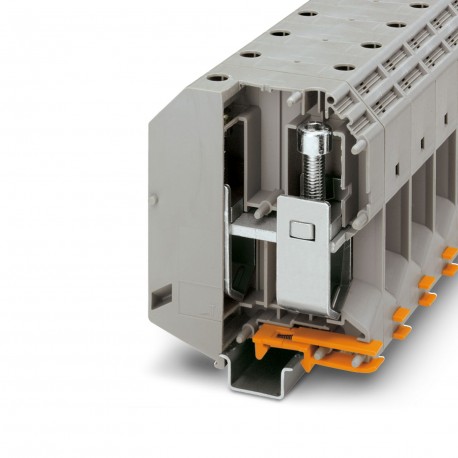

PHOENIX CONTACT UKH 240 UKH 240 3010217 PHOENIX CONTACT High-current terminal block View larger
Images are for illustrative purposes only. Please refer to data sheet for details

UKH 240 3010217 PHOENIX CONTACT High-current terminal block

UKH 240

3010217

PHOENIX CONTACT

1 Pcs.

High-current terminal block Current terminal, nominal voltage: 1000 V, nominal current: 415 A, number of connections: 2, connection type: Screw connection, Sizing cross-section: 240 mm², cross-section: 70 mm² - 240 mm², mounting class: NS 35/15, NS 32, color: gray High-current terminal block, nom. voltage: 1000 V, nominal current: 415 A, number of connections: 2, connection method: Screw connection, Rated cross section: 240 mm2, cross section: 70 mm2 - 240 mm2, mounting type: NS 35/15, NS 32, color: gray

Automation > Feed-through terminal block
Modular TBs

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Technical data
Notes
General
NoteFor a reliable contact of multi stranded conductors it is recommended to untwist multi stranded conductors.
Product properties
Product typeHigh current terminal block
Number of connections2
Number of rows1
Potentials1
Data management status
Article revision11
Insulation characteristics
Overvoltage categoryIII
Degree of pollution3
Electrical properties
Rated surge voltage8 kV
Maximum power dissipation for nominal condition13.78 W
Connection data
Number of connections per level2
Nominal cross section240 mm²
Level 1 above 1 below 1
Screw threadM10
NoteScrews with hexagonal socket
Tightening torque25 ... 30 Nm
Stripping length40 mm
Internal cylindrical gageB15
Connection in acc. with standardIEC 60947-7-1
Conductor cross section rigid70 mm² ... 240 mm²
Cross section AWG3/0 ... 250 kcmil (converted acc. to IEC)
Conductor cross section flexible70 mm² ... 240 mm²
Conductor cross section, flexible [AWG]3/0 ... 350 kcmil (converted acc. to IEC)
Conductor cross-section flexible (ferrule without plastic sleeve)70 mm² ... 185 mm²
Flexible conductor cross section (ferrule with plastic sleeve)70 mm² ... 185 mm²
Cross-section with insertion bridge, rigid240 mm²
Cross-section with insertion bridge, flexible185 mm²
2 conductors with same cross section, solid35 mm² ... 95 mm²
2 conductors with same cross section, flexible50 mm² ... 95 mm²
2 conductors with same cross section, flexible, with ferrule without plastic sleeve35 mm² ... 50 mm²
Nominal current415 A
Maximum load current415 A (with 240 mm² conductor cross section)
Nominal voltage1000 V
NoteNote: Product releases, connection cross sections and notes on connecting aluminum cables can be found in the download area.
Nominal cross section240 mm²
Ex data
Rated data (ATEX/IECEx)
Identification II 2 GD  Ex eb IIC Gb
Operating temperature range-60 °C ... 110 °C
Ex-certified accessories1201947 VDE-ISS 8
1201659 E/AL-NS 32
1201662 E/AL-NS 35
List of bridgesInsertion bridge / EB 2-36/UKH / 0201401
Insertion bridge / EB 3-36/UKH / 0201414
Bridge data270 A / 240 mm²
Ex temperature increase40 K (389 A/240 mm²)
Rated voltage1100 V
at bridging with insertion bridge690 V
Rated insulation voltage1000 V
output(Permanent)
Ex level General
Rated current350 A
Maximum load current350 A
Contact resistance0.03 mΩ
Ex connection data General
Stripping length40 mm
Torque range25 Nm ... 30 Nm
Nominal cross section240 mm²
Rated cross section AWG500 kcmil
Connection capacity rigid70 mm² ... 240 mm²
Connection capacity AWG2/0 ... 500 kcmil
Connection capacity flexible70 mm² ... 240 mm²
Connection capacity AWG2/0 ... 500 kcmil
2 conductors with same cross section, solid35 mm² ... 95 mm²
2 conductors with the same cross-section AWG rigid2 ... 3/0
2 conductors with same cross section, stranded50 mm² ... 95 mm²
2 conductors with the same cross-section AWG flexible1/0 ... 3/0
Dimensions
Dimensional drawingzfzsieviqy.jpg
Width36 mm
Height100 mm
Depth123.6 mm
Depth on NS 32129 mm
Depth on NS 35/15131.5 mm
Material specifications
Colorgray (RAL 7042)
Flammability rating according to UL 94V0
Insulating material groupI
Insulating materialPA
Static insulating material application in cold-60 °C
Relative insulation material temperature index (Elec., UL 746 B)130 °C
Fire protection for rail vehicles (DIN EN 45545-2) R22HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R23HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R24HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R26HL 1 - HL 3
Surface flammability NFPA 130 (ASTM E 162)passed
Specific optical density of smoke NFPA 130 (ASTM E 662)passed
Smoke gas toxicity NFPA 130 (SMP 800C)passed
Electrical tests
Surge voltage test
ResultTest passed
Short-time withstand current 240 mm²28.8 kA
ResultTest passed
Power-frequency withstand voltage
Test voltage setpoint2.2 kV
ResultTest passed
Mechanical properties
Mechanical data
Open side panelNo
Mechanical tests
Mechanical strength
ResultTest passed
Attachment on the carrier
DIN rail/fixing supportNS 32/NS 35
ResultTest passed
Test for conductor damage and slackening
Rotation speed10 (+/- 2) rpm
Revolutions135
Conductor cross section/weight70 mm²/10.4 kg
240 mm²/20.0 kg
ResultTest passed
Environmental and real-life conditions
Needle-flame test
Time of exposure30 s
ResultTest passed
Oscillation/broadband noise
SpecificationDIN EN 50155 (VDE 0115-200):2022-06
SpectrumService life test category 2, bogie-mounted
Frequencyf1= 5 Hz to f2= 250 Hz
ASD level6.12 (m/s²)²/Hz
Acceleration3.12g
Test duration per axis5 h
Test directionsX-, Y- and Z-axis
ResultTest passed
Shocks
SpecificationDIN EN 50155 (VDE 0115-200):2022-06
Pulse shapeHalf-sine
Acceleration5g
Shock duration30 ms
Number of shocks per direction3
Test directionsX-, Y- and Z-axis (pos. and neg.)
ResultTest passed
Ambient conditions
Ambient temperature (operation)-60 °C ... 110 °C (Operating temperature range incl. self-heating; for max. short-term operating temperature, see RTI Elec.)
Ambient temperature (storage/transport)-25 °C ... 60 °C (for a short time, no longer than 24 h, -60°C to +70°C)
Ambient temperature (assembly)-5 °C ... 70 °C
Ambient temperature (actuation)-5 °C ... 70 °C
Permissible humidity (operation)20 % ... 90 %
Permissible humidity (storage/transport)30 % ... 70 %
Standards and regulations
Connection in acc. with standardIEC 60947-7-1
Mounting
Mounting typeNS 35/15
NS 32

ETIM for 3010217 Terminal blocks (EC000897)
Feature Name Feature Value
Connectable conductor cross section fine-strand without cable end sleeve (EF007341) 70 mm²
Connectable conductor cross section fine-strand with cable end sleeve (EF007339) 70 mm²
Connectable conductor cross section solid-core (EF007337) 70 mm²
Connectable conductor cross section multi-wired (EF007343) 35 mm²
Rated current In (EF008250) 415 A
Rated voltage (EF000228) 1000 V
Type of electrical connection 1 (EF002526) Screw connection
Type of electrical connection 2 (EF002527) Screw connection
Number of clamp positions per level (EF002660) 2
Suitable for conductor material (EF012572) Aluminium/copper
Mounting method (EF000003) DIN rail (top hat rail) 35 mm
Material insulation body (EF007543) Other
Operating temperature (EF002393) -60 °C
Inflammability class of insulation material according to UL94 (EF002521) V0
Width (EF000008) 36 mm
Height (EF000040) 100 mm
Depth (EF000049) 123.6 mm
Explosion-tested version 'Ex e' (EF008498) Yes
Closing plate required (EF002525) No
Colour (EF000007) Grey
Internally connected stages (EF002661) Yes
