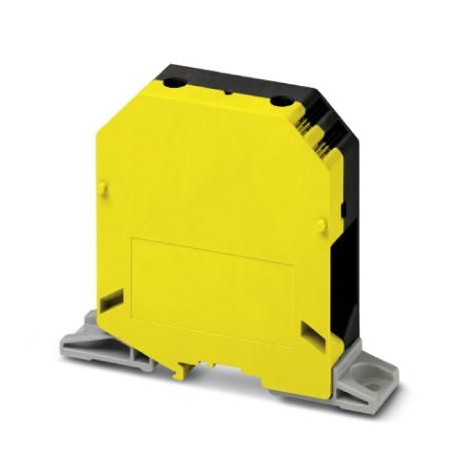

UKH 150-FE-F 3247060 PHOENIX CONTACT High-current terminal block

UKH 150-FE-F

3247060

PHOENIX CONTACT

10 Pcs.

High-current terminal block Current terminal, rated voltage: 1000 V, rated current: 309 A, connection type: Screw connection, number of connections: 2, cross-section: 35 mm² - 150 mm², AWG: 2 - 300 kcmil, width: 31 mm, height: 107.3 mm, color: black/yellow, mounting class: NS 35/15, NS 32

Automation > Feed-through terminal block
Modular TBs

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey3247060
Packing unit10 pc
Minimum order quantity10 pc
GTIN4046356707268
Weight per Piece (excluding packing)395.900 g
Custom tariff number85369010
Country of originIN (India)

General

Number of levels1
Number of connections2
Potentials1
Nominal cross section150 mm²
Coloryellow/black
Insulating materialPA
Flammability rating according to UL 94V0
Rated surge voltage8 kV
Degree of pollution3
Overvoltage categoryIII
Insulating material groupI
Maximum power dissipation for nominal condition9.55 W
Maximum load current309 A (with 150 mm² conductor cross section)
Nominal current IN309 A
Nominal voltage UN1000 V
Open side panelNo
Relative insulation material temperature index (Elec., UL 746 B)130 °C
Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21))130 °C
Static insulating material application in cold-60 °C
Behavior in fire for rail vehicles (DIN 5510-2)Test passed
Flame test method (DIN EN 60695-11-10)V0
Oxygen index (DIN EN ISO 4589-2)>32 %
NF F16-101, NF F10-102 Class I2
NF F16-101, NF F10-102 Class F2
Surface flammability NFPA 130 (ASTM E 162)passed
Specific optical density of smoke NFPA 130 (ASTM E 662)passed
Smoke gas toxicity NFPA 130 (SMP 800C)passed
Calorimetric heat release NFPA 130 (ASTM E 1354)28 MJ/kg
Fire protection for rail vehicles (DIN EN 45545-2) R22HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R23HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R24HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R26HL 1 - HL 3

Dimensions

Width31 mm
Length136.1 mm
Height107.3 mm
Height NS 35/15118.5 mm
Height NS 32116 mm

Connection data

NoteScrews with hexagonal socket
Connection methodScrew connection
Screw threadM10
Stripping length40 mm
Tightening torque, min25 Nm
Tightening torque max30 Nm
Connection in acc. with standardIEC 60947-7-1
NoteNote: Product releases, connection cross sections and notes on connecting aluminum cables can be found in the download area.
Conductor cross section solid min.35 mm²
Conductor cross section solid max.150 mm²
Conductor cross section AWG min.2
Conductor cross section AWG max.300 kcmil
Conductor cross section flexible min.50 mm²
Conductor cross section flexible max.150 mm²
Min. AWG conductor cross section, flexible1/0
Max. AWG conductor cross section, flexible300 kcmil
Conductor cross section flexible, with ferrule without plastic sleeve min.50 mm²
Conductor cross section flexible, with ferrule without plastic sleeve max.150 mm²
Conductor cross section flexible, with ferrule with plastic sleeve min.50 mm²
Conductor cross section flexible, with ferrule with plastic sleeve max.150 mm²
Cross section with insertion bridge, solid max.150 mm²
Cross section with insertion bridge, stranded max.120 mm²
2 conductors with same cross section, solid min.25 mm²
2 conductors with same cross section, solid max.50 mm²
2 conductors with same cross section, stranded min.35 mm²
2 conductors with same cross section, stranded max.50 mm²
2 conductors with same cross section, stranded, ferrules without plastic sleeve, min.25 mm²
2 conductors with same cross section, stranded, ferrules without plastic sleeve, max.50 mm²
Connection in acc. with standardIEC/EN 60079-7
Conductor cross section solid min.35 mm²
Conductor cross section solid max.150 mm²
Conductor cross section AWG min.2
Conductor cross section AWG max.300
Conductor cross section flexible min.50 mm²
Conductor cross section flexible max.150 mm²
Internal cylindrical gageB14

Standards and Regulations

Connection in acc. with standardUL
IEC 60947-7-1
Flammability rating according to UL 94V0
Fire protection for rail vehicles (DIN EN 45545-2) R22HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R23HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R24HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R26HL 1 - HL 3

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values
