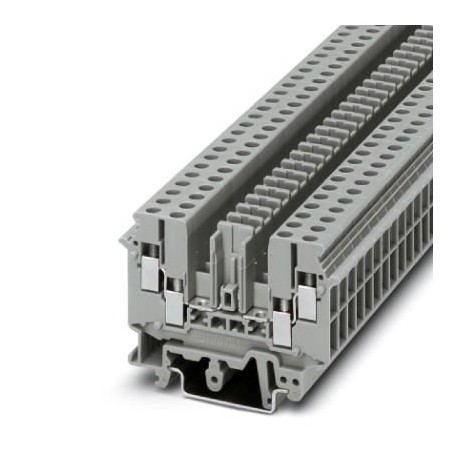

PHOENIX CONTACT UDK 4-TG UDK 4-TG 2777014 PHOENIX CONTACT Disconnect terminal block View larger
Images are for illustrative purposes only. Please refer to data sheet for details

UDK 4-TG 2777014 PHOENIX CONTACT Disconnect terminal block

UDK 4-TG

2777014

PHOENIX CONTACT

50 Pcs.

Disconnect terminal block Interruptible terminal, Current and voltage are determined by the connector used., nominal voltage: 400 V, nominal current: 16 A, 1st floor, connection type: Screw connection, Dimensioning section: 4 mm², cross-section: 0.2 mm² - 6 mm², mounting: NS 32, NS 35/7.5, NS 35/15, color: gray

Automation > (Knife) disconnect terminal block
Modular TBs

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey2777014
Packing unit50 pc
Catalog pagePage 471 (C-1-2017)
GTIN4017918068608
Weight per Piece (excluding packing)14.900 g
Custom tariff number85369010
Country of originTR (Turkey)

General

Number of levels1
Number of connections4
Nominal cross section4 mm²
Colorgray
Insulating materialPA
Flammability rating according to UL 94V2
Rated surge voltage6 kV
Degree of pollution3
Overvoltage categoryIII
Insulating material groupI
Connection in acc. with standardIEC 60947-7-1
Nominal current IN16 A (the current is determined by the component and fuse plugs)
Maximum load current16 A (with 6 mm² conductor cross section)
Nominal voltage UN400 V (the voltage is determined by the component and fuse plugs)
Open side panelYes

Dimensions

Width6.2 mm
Length63.5 mm
Height NS 35/7,547 mm
Height NS 35/1554.5 mm
Height NS 3252 mm

Connection data

Conductor cross section solid min.0.2 mm²
Conductor cross section solid max.6 mm²
Conductor cross section flexible min.0.2 mm²
Conductor cross section flexible max.4 mm²
Conductor cross section AWG min.24
Conductor cross section AWG max.10
Conductor cross section flexible, with ferrule without plastic sleeve min.0.25 mm²
Conductor cross section flexible, with ferrule without plastic sleeve max.4 mm²
Conductor cross section flexible, with ferrule with plastic sleeve min.0.25 mm²
Conductor cross section flexible, with ferrule with plastic sleeve max.1.5 mm²
2 conductors with same cross section, solid min.0.2 mm²
2 conductors with same cross section, solid max.1 mm²
2 conductors with same cross section, stranded min.0.2 mm²
2 conductors with same cross section, stranded max.1.5 mm²
2 conductors with same cross section, stranded, ferrules without plastic sleeve, min.0.25 mm²
2 conductors with same cross section, stranded, ferrules without plastic sleeve, max.1.5 mm²
2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, min.0.5 mm²
2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, max.1 mm²
Cross section with insertion bridge, solid max.2.5 mm²
Cross section with insertion bridge, stranded max.2.5 mm²
Connection methodScrew connection
Stripping length8 mm
Internal cylindrical gageA4
Screw threadM3
Tightening torque, min0.6 Nm
Tightening torque max0.8 Nm

Standards and Regulations

Connection in acc. with standardCUL
IEC 60947-7-1
Flammability rating according to UL 94V2

Environmental Product Compliance

China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications


ETIM for 2777014 Terminal blocks (EC000902)
Feature Name Feature Value
Connectable conductor cross section fine-strand without cable end sleeve (EF007341) 0.2 mm²
Connectable conductor cross section fine-strand with cable end sleeve (EF007339) 0.25 mm²
Connectable conductor cross section solid-core (EF007337) 0.2 mm²
Connectable conductor cross section multi-wired (EF007343) 0.2 mm²
Rated current In (EF008250) 16 A
Rated voltage (EF000228) 400 V
Type of electrical connection 1 (EF002526) Screw connection
Type of electrical connection 2 (EF002527) Screw connection
Number of clamp positions per level (EF002660) 4
Internally connected stages (EF002661) Yes
Mounting method (EF000003) DIN rail (top hat rail) 35 mm
Material insulation body (EF007543) Other
Inflammability class of insulation material according to UL94 (EF002521) V2
Width (EF000008) 6.2 mm
Height (EF000040) 63.5 mm
Depth (EF000049) 47 mm
Closing plate required (EF002525) Yes
Colour (EF000007) Grey
Type of cross disconnection (EF002546) None
With integrated test socket (EF002547) No
