PHOENIX CONTACT STTB 4-PE STTB 4-PE 3036039 PHOENIX CONTACT Protective conductor double-level terminal block, Cross section: 0.08 mm² View larger
Images are for illustrative purposes only. Please refer to data sheet for details

STTB 4-PE 3036039 PHOENIX CONTACT Protective conductor double-level terminal block, Cross section: 0.08 mm²

STTB 4-PE

3036039

PHOENIX CONTACT

50 Pcs.

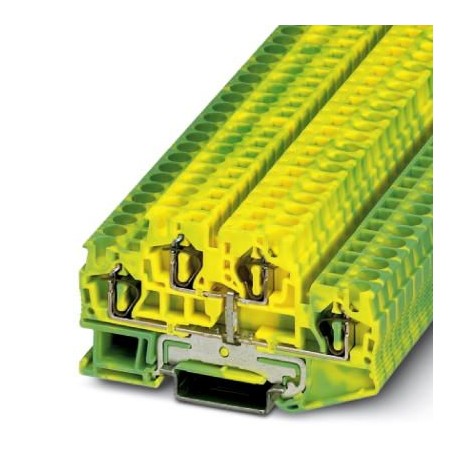

Protective conductor double-level terminal block, Cross section: 0.08 mm² Double-deck terminal block with protective conductor, number of connections: 4, connection type: Spring connection, 1st and 2nd floor, cross-section: 0.08 mm² - 6 mm², mounting class: NS 35/7.5, NS 35/15, color: yellow-green

Automation > Feed-through terminal block
Modular TBs

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

General

Number of levels2
Number of connections4
Nominal cross section4 mm²
Colorgreen-yellow
Insulating materialPA
Flammability rating according to UL 94V0
Area of applicationRailway industry
Mechanical engineering
Plant engineering
Process industry

General

Rated surge voltage6 kV
Pollution degree3
Overvoltage categoryIII
Insulating material groupI
Connection in acc. with standardIEC 60947-7-2
Open side panelja
Shock protection test specificationDIN EN 50274 (VDE 0660-514):2002-11
Back of the hand protectionguaranteed
Finger protectionguaranteed
Oscillation, broadband noise test resultTest passed
Test specification, oscillation, broadband noiseDIN EN 50155 (VDE 0115-200):2008-03
Test spectrumService life test category 2, bogie mounted
Test frequencyf1= 5 Hz to f2= 250 Hz
ASD level6.12 (m/s2)2/Hz
Acceleration3.12 g
Test duration per axis5 h
Test directionsX-, Y- and Z-axis
Shock test resultTest passed
Test specification, shock testDIN EN 50155 (VDE 0115-200):2008-03
Shock formHalf-sine
Acceleration30g
Shock duration18 ms
Number of shocks per direction3
Test directionsX-, Y- and Z-axis (pos. and neg.)
Relative insulation material temperature index (Elec.; UL 746 B)130 °C
Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21))125 °C
Static insulating material application in cold-60 °C

Dimensions

Width6.2 mm
Length83.5 mm
Height NS 35/7,547.5 mm
Height NS 35/1555 mm

Connection data

NotePlease observe the current carrying capacity of the DIN rails.
Connection methodSpring-cage connection
Conductor cross section solid min.0.08 mm²
Conductor cross section solid max.6 mm²
Conductor cross section flexible min.0.08 mm²
Conductor cross section flexible max.4 mm²
Conductor cross section AWG min.28
Conductor cross section AWG max.10
Conductor cross section flexible, with ferrule without plastic sleeve min.0.14 mm²
Conductor cross section flexible, with ferrule without plastic sleeve max.4 mm²
Conductor cross section flexible, with ferrule with plastic sleeve min.0.14 mm²
Conductor cross section flexible, with ferrule with plastic sleeve max.4 mm²
2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, min.0.5 mm²
2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, max.1 mm²
Minimum stripping length8 mm
Maximum stripping length10 mm
Internal cylindrical gageA4

ETIM for 3036039 Terminal blocks (EC000897)
Feature Name Feature Value
Connectable conductor cross section fine-strand without cable end sleeve (EF007341) 0.08 mm²
Connectable conductor cross section fine-strand with cable end sleeve (EF007339) 0.14 mm²
Connectable conductor cross section solid-core (EF007337) 0.08 mm²
Type of electrical connection 1 (EF002526) Spring clamp connection
Type of electrical connection 2 (EF002527) Spring clamp connection
Number of levels (EF002659) 2
Number of clamp positions per level (EF002660) 2
Suitable for conductor material (EF012572) Aluminium/copper
Mounting method (EF000003) DIN rail (top hat rail) 35 mm
Material insulation body (EF007543) Other
Inflammability class of insulation material according to UL94 (EF002521) V0
Width (EF000008) 6.2 mm
Height (EF000040) 83.5 mm
Depth (EF000049) 47.5 mm
Explosion-tested version 'Ex e' (EF008498) Yes
Closing plate required (EF002525) Yes
Colour (EF000007) Green/yellow
Internally connected stages (EF002661) No

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
