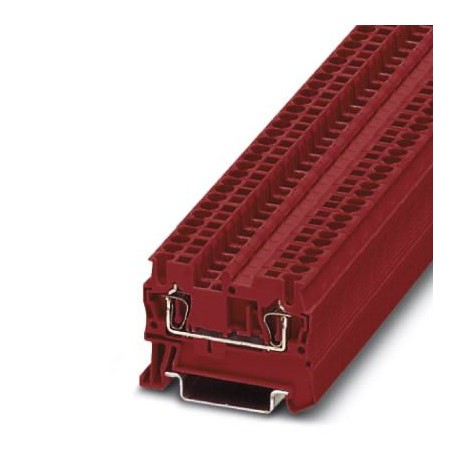

PHOENIX CONTACT ST 2,5 RD ST 2,5 RD 3037096 PHOENIX CONTACT Feed-through terminal block View larger
Images are for illustrative purposes only. Please refer to data sheet for details

ST 2,5 RD 3037096 PHOENIX CONTACT Feed-through terminal block

ST 2,5 RD

3037096

PHOENIX CONTACT

50 Pcs.

Feed-through terminal block Feed-through terminal, nominal voltage: 800 V, nominal current: 24 A, number of connections: 2, connection type: Spring connection, Dimensioning cross-section: 2.5 mm², cross-section: 0.08 mm² - 4 mm², mounting class: NS 35/7.5, NS 35/15, colour: red

Automation > Feed-through terminal block
Modular TBs

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey3037096
Packing unit50 pc
Minimum order quantity50 pc
Catalog pagePage 205 (C-3-2013)
GTIN4017918599539
Weight per Piece (excluding packing)5.440 g
Custom tariff number85369010
Country of originDE (Germany)

General

Number of levels1
Number of connections2
Potentials1
Nominal cross section2.5 mm²
Colorred
Insulating materialPA
Flammability rating according to UL 94V0
Rated surge voltage8 kV
Degree of pollution3
Overvoltage categoryIII
Insulating material groupI
Maximum power dissipation for nominal condition0.77 W
Maximum load current31 A (with 4 mm² conductor cross section)
Nominal current IN24 A (at 2.5 mm²)
Nominal voltage UN800 V
Open side panelYes

Dimensions

Width5.2 mm
End cover width2.2 mm
Length48.5 mm
Height NS 35/7,536.5 mm
Height NS 35/1544 mm

Connection data

Connection methodSpring-cage connection
Stripping length8 mm ... 10 mm
Connection in acc. with standardIEC 60947-7-1
Conductor cross section solid min.0.08 mm²
Conductor cross section solid max.4 mm²
Conductor cross section AWG min.28
Conductor cross section AWG max.12
Conductor cross section flexible min.0.08 mm²
Conductor cross section flexible max.2.5 mm²
Min. AWG conductor cross section, flexible28
Max. AWG conductor cross section, flexible14
Conductor cross section flexible, with ferrule without plastic sleeve min.0.14 mm²
Conductor cross section flexible, with ferrule without plastic sleeve max.2.5 mm²
Conductor cross section flexible, with ferrule with plastic sleeve min.0.14 mm²
Conductor cross section flexible, with ferrule with plastic sleeve max.2.5 mm²
2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, max.0.5 mm²
Connection in acc. with standardIEC/EN 60079-7
Conductor cross section solid min.0.08 mm²
Conductor cross section solid max.4 mm²
Conductor cross section AWG min.28
Conductor cross section AWG max.12
Conductor cross section flexible min.0.08 mm²
Conductor cross section flexible max.2.5 mm²
Internal cylindrical gageA3

Standards and Regulations

Connection in acc. with standardCSA
IEC 60947-7-1
Flammability rating according to UL 94V0

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

Classifications


ETIM for 3037096 Terminal blocks (EC000897)
Feature Name Feature Value
Connectable conductor cross section fine-strand without cable end sleeve (EF007341) 0.08 mm²
Connectable conductor cross section fine-strand with cable end sleeve (EF007339) 0.14 mm²
Connectable conductor cross section solid-core (EF007337) 0.08 mm²
Rated current In (EF008250) 24 A
Rated voltage (EF000228) 800 V
Type of electrical connection 1 (EF002526) Spring clamp connection
Type of electrical connection 2 (EF002527) Spring clamp connection
Number of clamp positions per level (EF002660) 2
Suitable for conductor material (EF012572) Aluminium/copper
Mounting method (EF000003) DIN rail (top hat rail) 35 mm
Material insulation body (EF007543) Other
Operating temperature (EF002393) -60 °C
Inflammability class of insulation material according to UL94 (EF002521) V0
Width (EF000008) 5.2 mm
Height (EF000040) 48.5 mm
Depth (EF000049) 36.5 mm
Explosion-tested version 'Ex e' (EF008498) Yes
Closing plate required (EF002525) Yes
Colour (EF000007) Red
Internally connected stages (EF002661) Yes
