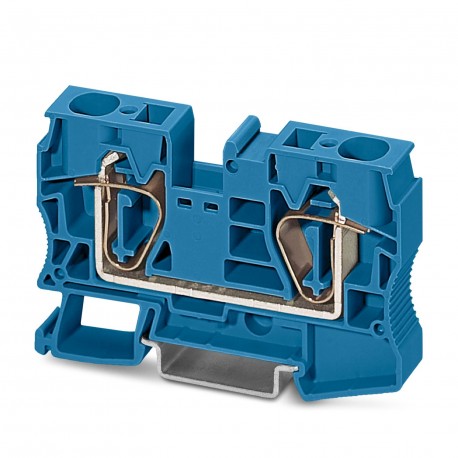

PHOENIX CONTACT ST 16 BU ST 16 BU 3036152 PHOENIX CONTACT Feed-through terminal block View larger
Images are for illustrative purposes only. Please refer to data sheet for details

ST 16 BU 3036152 PHOENIX CONTACT Feed-through terminal block

ST 16 BU

3036152

PHOENIX CONTACT

50 Pcs.

Feed-through terminal block Feed-through terminal, nominal voltage: 1000 V, nominal current: 76 A, number of connections: 2, connection type: Spring connection, 1st floor, Dimensioning cross-section: 16 mm², cross-section: 0.2 mm² - 25 mm², installation type: NS 35/7.5, NS 35/15, colour: blue Feed-through terminal block, nom. voltage: 1000 V, nominal current: 76 A, number of connections: 2, connection method: Spring-cage connection, Rated cross section: 16 mm2, cross section: 0.2 mm2 - 25 mm2, mounting type: NS 35/7,5, NS 35/15, color: blue

Automation > Feed-through terminal block
Modular TBs

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Technical data
Product properties
Product typeFeed-through terminal block
Number of connections2
Number of rows1
Potentials1
Data management status
Article revision16
Insulation characteristics
Overvoltage categoryIII
Degree of pollution3
Electrical properties
Rated surge voltage8 kV
Maximum power dissipation for nominal condition2.43 W
Connection data
Number of connections per level2
Nominal cross section16 mm²
Stripping length18 mm
Internal cylindrical gageA7
B6
Connection in acc. with standardIEC 60947-7-1
Conductor cross section rigid0.2 mm² ... 25 mm²
Cross section AWG24 ... 4 (converted acc. to IEC)
Conductor cross section flexible0.2 mm² ... 16 mm²
Conductor cross section, flexible [AWG]24 ... 6 (converted acc. to IEC)
Conductor cross-section flexible (ferrule without plastic sleeve)0.25 mm² ... 16 mm²
Flexible conductor cross section (ferrule with plastic sleeve)0.25 mm² ... 16 mm²
2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve1.5 mm² ... 4 mm²
Nominal current76 A
Maximum load current90 A (with 25 mm² conductor cross section)
Nominal voltage1000 V
Nominal cross section16 mm²
Ex data
Rated data (ATEX/IECEx)
Identification II 2 GD  Ex eb IIC Gb
Operating temperature range-60 °C ... 110 °C
Ex-certified accessories3036657 D-ST 16
1206612 SZF 3-1,0X5,5
3022276 CLIPFIX 35-5
3022218 CLIPFIX 35
List of bridgesPlug-in bridge / FBS 2-12 / 3005950
Bridge data60 A / 16 mm²
Ex temperature increase40 K (71.3 A / 16 mm²)
Rated voltage550 V
for bridging with bridge550 V
Rated insulation voltage500 V
output(Permanent)
Ex level General
Rated current64.5 A
Maximum load current81.5 A
Contact resistance0.34 mΩ
Ex connection data General
Nominal cross section16 mm²
Rated cross section AWG6
Connection capacity rigid1.5 mm² ... 25 mm²
Connection capacity AWG16 ... 4
Connection capacity flexible1.5 mm² ... 16 mm²
Connection capacity AWG16 ... 6
Dimensions
Width12.2 mm
End cover width2.2 mm
Height80 mm
Depth on NS 35/7,551.5 mm
Depth on NS 35/1559 mm
Material specifications
Colorblue (RAL 5015)
Flammability rating according to UL 94V0
Insulating material groupI
Insulating materialPA
Static insulating material application in cold-60 °C
Relative insulation material temperature index (Elec., UL 746 B)130 °C
Fire protection for rail vehicles (DIN EN 45545-2) R22HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R23HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R24HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R26HL 1 - HL 3
Surface flammability NFPA 130 (ASTM E 162)passed
Specific optical density of smoke NFPA 130 (ASTM E 662)passed
Smoke gas toxicity NFPA 130 (SMP 800C)passed
Mechanical properties
Mechanical data
Open side panelYes
Environmental and real-life conditions
Ambient conditions
Ambient temperature (operation)-60 °C ... 110 °C (Operating temperature range incl. self-heating; for max. short-term operating temperature, see RTI Elec.)
Ambient temperature (storage/transport)-25 °C ... 60 °C (for a short time, no longer than 24 h, -60°C to +70°C)
Ambient temperature (assembly)-5 °C ... 70 °C
Ambient temperature (actuation)-5 °C ... 70 °C
Permissible humidity (operation)20 % ... 90 %
Permissible humidity (storage/transport)30 % ... 70 %
Standards and regulations
Connection in acc. with standardIEC 60947-7-1
Mounting
Mounting typeNS 35/7,5
NS 35/15

ETIM for 3036152 Terminal blocks (EC000897)
Feature Name Feature Value
Connectable conductor cross section fine-strand without cable end sleeve (EF007341) 0.2 mm²
Connectable conductor cross section fine-strand with cable end sleeve (EF007339) 0.25 mm²
Connectable conductor cross section solid-core (EF007337) 0.2 mm²
Rated current In (EF008250) 76 A
Rated voltage (EF000228) 1000 V
Type of electrical connection 1 (EF002526) Spring clamp connection
Type of electrical connection 2 (EF002527) Spring clamp connection
Number of clamp positions per level (EF002660) 2
Suitable for conductor material (EF012572) Aluminium/copper
Mounting method (EF000003) DIN rail (top hat rail) 35 mm
Material insulation body (EF007543) Other
Operating temperature (EF002393) -60 °C
Inflammability class of insulation material according to UL94 (EF002521) V0
Width (EF000008) 12.2 mm
Height (EF000040) 80 mm
Depth (EF000049) 51.5 mm
Explosion-tested version 'Ex e' (EF008498) Yes
Closing plate required (EF002525) Yes
Colour (EF000007) Blue
Internally connected stages (EF002661) Yes
