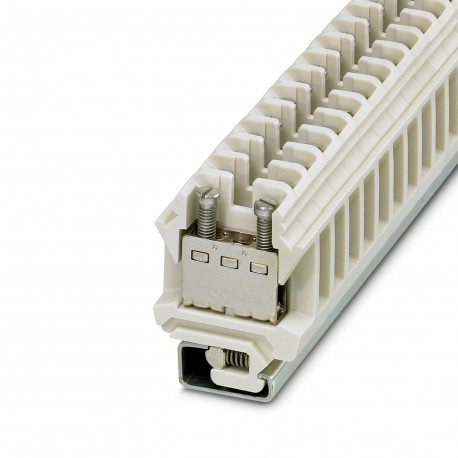

SSK 135 KER-EX 0505055 PHOENIX CONTACT Feed-through terminal block, connection method: screw connection, cro..

SSK 135 KER-EX

0505055

PHOENIX CONTACT

10 Pcs.

Feed-through terminal block, connection method: screw connection, cross section: 1 mm² Connection step rail terminal, connection type: screw connection, section:1 mm²-35 mm², AWG18-2, color:white, mounting type:NS 32, insulation material: ceramic Feed-through terminal block, connection method: screw connection, cross section: 1 mm2 - 35 mm2, 18 - 2 AWG, color: white, mounting type: NS 32, insulation material: ceramic

Automation > Feed-through terminal block
Modular TBs

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Technical data
Product properties
Product typeHigh temperature terminal block
Number of connections2
Number of rows1
Potentials1
Data management status
Article revision07
Insulation characteristics
Overvoltage categoryIII
Degree of pollution3
Electrical properties
Rated surge voltage8 kV
Maximum power dissipation for nominal condition4.06 W
Connection data
Number of connections per level2
Nominal cross section35 mm²
Level 1 above 1 below 1
Screw threadM6
Tightening torque3.2 ... 3.7 Nm
Stripping length16 mm
Internal cylindrical gageB7
Connection in acc. with standardIEC 60947-7-1
Conductor cross section rigid1 mm² ... 35 mm²
Cross section AWG18 ... 2 (converted acc. to IEC)
Conductor cross section flexible1 mm² ... 25 mm²
Conductor cross section, flexible [AWG]18 ... 4 (converted acc. to IEC)
Conductor cross-section flexible (ferrule without plastic sleeve)0.75 mm² ... 25 mm²
Flexible conductor cross section (ferrule with plastic sleeve)0.75 mm² ... 16 mm²
2 conductors with same cross section, solid0.75 mm² ... 10 mm²
2 conductors with same cross section, flexible0.75 mm² ... 10 mm²
2 conductors with same cross section, flexible, with ferrule without plastic sleeve0.75 mm² ... 10 mm²
2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve0.75 mm² ... 10 mm²
Nominal current101 A (with 25 mm² conductor cross section)
Maximum load current125 A (with 35 mm² conductor cross section)
Nominal voltage800 V
Nominal cross section35 mm²
Ex data
Rated data (ATEX/IECEx)
Identification II 2 GD  Ex eb IIC Gb
Operating temperature range-60 °C ... 180 °C
Ex-certified accessories0205067 D-SSK 135 KER
1201044 E/1
List of bridges/ KB- 15 / 0204259
Bridge data100 A / 35 mm²
Ex temperature increase40 K (116.5 A / 25 mm²)
Rated voltage550 V
for bridging with bridge550 V
Rated insulation voltage500 V
output(Permanent)
Ex level General
Rated current101 A
Maximum load current113 A
Contact resistance0.2 mΩ
Ex connection data General
Torque range3.2 Nm ... 3.7 Nm
Nominal cross section25 mm²
Rated cross section AWG3
Connection capacity rigid1 mm² ... 35 mm²
Connection capacity AWG18 ... 2
Connection capacity flexible1 mm² ... 25 mm²
Connection capacity AWG18 ... 3
Dimensions
Width15.3 mm
Height53 mm
Depth on NS 3267 mm
Material specifications
Colorivory (RAL 1014)
MaterialCeramics
Insulating material groupI
Relative insulation material temperature index (Elec., UL 746 B)1000 °C
Electrical tests
Surge voltage test
ResultTest passed
Temperature-rise test
Requirement temperature-rise testIncrease in temperature ≤ 45 K
ResultTest passed
Power-frequency withstand voltage
Test voltage setpoint2 kV
ResultTest passed
Mechanical properties
Mechanical data
Open side panelYes
Mechanical tests
Mechanical strength
ResultTest passed
Attachment on the carrier
DIN rail/fixing supportNS 32
ResultTest passed
Environmental and real-life conditions
Needle-flame test
Time of exposure30 s
Ambient conditions
Ambient temperature (operation)-60 °C ... 180 °C
Ambient temperature (storage/transport)-25 °C ... 60 °C (for a short time, no longer than 24 h, -60°C to +70°C)
Ambient temperature (assembly)-5 °C ... 70 °C
Ambient temperature (actuation)-5 °C ... 70 °C
Permissible humidity (operation)20 % ... 90 %
Permissible humidity (storage/transport)30 % ... 70 %
Standards and regulations
Connection in acc. with standardIEC 60947-7-1
Mounting
Mounting typeNS 32

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
