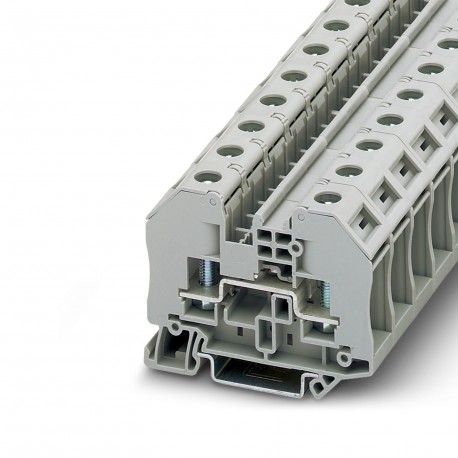

PHOENIX CONTACT RT 5 RT 5 3049026 PHOENIX CONTACT Bolt connection terminal block View larger
Images are for illustrative purposes only. Please refer to data sheet for details

RT 5 3049026 PHOENIX CONTACT Bolt connection terminal block

RT 5

3049026

PHOENIX CONTACT

50 Pcs.

Bolt connection terminal block Stud connection terminal, nominal voltage: 1000 V, nominal current: 41 A, number of connections: 2, connection type: Stud connection, Dimensioning section: 6 mm², mounting class: NS 35/7.5, NS 35/15, color: gray Bolt connection terminal block, nom. voltage: 1000 V, nominal current: 41 A, number of connections: 2, connection method: Bolt connection, Rated cross section: 6 mm2, mounting type: NS 35/7,5, NS 35/15, color: gray

Automation > Feed-through terminal block
Enclosures connectivity

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Technical data
Notes
GeneralNote: the BE-RT... path extension is to be used for non-insulated cable lugs (see accessories).
General
NoteThe rated insulation voltage applies to insulated cable lugs acc. to DIN 46237:1970-07 with or without path extension and for uninsulated cable lugs acc. to DIN 46234:1980-03 with path extension.
Product properties
Product typeBolt connection terminal block
Product familyRT
Area of applicationRailway industry
Machine building
Plant engineering
Process industry
Number of connections2
Number of rows1
Potentials1
Data management status
Article revision09
Insulation characteristics
Overvoltage categoryIII
Degree of pollution3
Electrical properties
Rated surge voltage8 kV
Maximum power dissipation for nominal condition1.31 W
Connection data
Number of connections per level2
Nominal cross section6 mm²
Level 1 above 1 below 1
Stripping lengthThe stripping length depends on the specification provided by the cable lug manufacturer.
Connection in acc. with standardIEC 60947-7-1
Nominal current41 A
Maximum load current41 A (with 6 mm² conductor cross section)
Nominal voltage1000 V
Nominal cross section6 mm²
Cable lug connection DIN 46234:1980-03
Connection in acc. with standardDIN 46234:1980-03
Cross section0.5 mm² ... 6 mm²
Cross section range AWG20 ... 10 (converted acc. to IEC)
Hole diameter5.3 mm
Width10 mm
Bolt diameter5 mm
Screw threadM5
Tightening torque2.5 ... 3 Nm
Connection in acc. with standardDIN 46237:1970-07
Cross section1 mm² ... 6 mm²
Cross section range AWG18 ... 10 (converted acc. to IEC)
Hole diameter5.3 mm
Width10 mm
Bolt diameter5 mm
Screw threadM5
Tightening torque2.5 ... 3 Nm
Identification color of ring cable lugs : red1 mm²
Identification color of ring cable lugs : blue2.5 mm²
Identification color of ring cable lugs : yellow6 mm²
Connection in acc. with standardDIN 46235:1983-07
Cross section6 mm² ... 10 mm²
Cross section range AWG10 ... 8 (converted acc. to IEC)
Hole diameter5.3 mm
Width9 mm
Bolt diameter5 mm
Screw threadM5
Tightening torque2.5 ... 3 Nm
Ex data
Rated data (ATEX/IECEx)
Identification II 2 G  Ex eb IIC Gb
Operating temperature range-60 °C ... 110 °C
Ex-certified accessories3049097 D-RT 3/5
0706647 TPNS-UK
3049819 BE-RT 3/5
1205079 SZS 1,0X6,5 VDE
1212553 SF-SL 1,2X6,5-150
3022276 CLIPFIX 35-5
List of bridgesPlug-in bridge / FBS 2-8 / 3030284
Plug-in bridge / FBS 3-8 / 3030297
Plug-in bridge / FBS 4-8 / 3030307
Plug-in bridge / FBS 5-8 / 3030310
Plug-in bridge / FBS 6-8 / 3032470
Plug-in bridge / FBS 10-8 / 3030323
Bridge data41 A / 6 mm²
Ex temperature increase40 K (41 A at 6 mm²)
Rated voltage550 V
for bridging with bridge550 V
- At bridging between non-adjacent terminal blocks220 V
- At cut-to-length bridging with cover220 V
- At cut-to-length bridging with partition plate550 V
Rated insulation voltage500 V
output(Permanent)
Ex level General
Rated current41 A
Maximum load current41 A
Contact resistance0.41 mΩ
Ex connection data General
Torque range2.5 Nm ... 3 Nm
Nominal cross section6 mm²
Rated cross section AWG10
Connection capacity rigid0.1 mm² ... 6 mm²
Connection capacity AWG26 ... 10
Connection capacity flexible0.1 mm² ... 6 mm²
Connection capacity AWG26 ... 10
Dimensions
Width16.3 mm
End cover width2.2 mm
Height66 mm
Depth on NS 35/7,551 mm
Depth on NS 35/1558.5 mm
Material specifications
Colorgray (RAL 7042)
Flammability rating according to UL 94V0
Insulating material groupI
Insulating materialPA
Static insulating material application in cold-60 °C
Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21))125 °C
Relative insulation material temperature index (Elec., UL 746 B)130 °C
Fire protection for rail vehicles (DIN EN 45545-2) R22HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R23HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R24HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R26HL 1 - HL 3
Calorimetric heat release NFPA 130 (ASTM E 1354)27,5 MJ/kg
Surface flammability NFPA 130 (ASTM E 162)passed
Specific optical density of smoke NFPA 130 (ASTM E 662)passed
Smoke gas toxicity NFPA 130 (SMP 800C)passed
Electrical tests
Surge voltage test
Test voltage setpoint9.8 kV
ResultTest passed
Temperature-rise test
Requirement temperature-rise testIncrease in temperature ≤ 45 K
ResultTest passed
Short-time withstand current 6 mm²0.72 kA
ResultTest passed
Power-frequency withstand voltage
Test voltage setpoint2.2 kV
ResultTest passed
Mechanical properties
Mechanical data
Open side panelYes
Mechanical tests
Mechanical strength
ResultTest passed
Attachment on the carrier
DIN rail/fixing supportNS 35
ResultTest passed
Environmental and real-life conditions
Needle-flame test
Time of exposure30 s
ResultTest passed
Oscillation/broadband noise
SpecificationDIN EN 50155 (VDE 0115-200):2008-03
SpectrumService life test category 1, class B, body mounted
Frequencyf1= 5 Hz to f2= 150 Hz
ASD level1.857 (m/s²)²/Hz
Acceleration0.8g
Test duration per axis5 h
Test directionsX-, Y- and Z-axis
ResultTest passed
Shocks
SpecificationDIN EN 50155 (VDE 0115-200):2008-03
Pulse shapeHalf-sine
Acceleration5g
Shock duration30 ms
Number of shocks per direction3
Test directionsX-, Y- and Z-axis (pos. and neg.)
ResultTest passed
Ambient conditions
Ambient temperature (operation)-60 °C ... 110 °C (Operating temperature range incl. self-heating; for max. short-term operating temperature, see RTI Elec.)
Ambient temperature (storage/transport)-25 °C ... 60 °C (for a short time, no longer than 24 h, -60°C to +70°C)
Ambient temperature (assembly)-5 °C ... 70 °C
Ambient temperature (actuation)-5 °C ... 70 °C
Permissible humidity (operation)20 % ... 90 %
Permissible humidity (storage/transport)30 % ... 70 %
Standards and regulations
Connection in acc. with standardIEC 60947-7-1
Mounting
Mounting typeNS 35/7,5
NS 35/15

ETIM for 3049026 Terminal blocks (EC000897)
Feature Name Feature Value
Rated current In (EF008250) 41 A
Rated voltage (EF000228) 1000 V
Type of electrical connection 1 (EF002526) Bolt connection
Type of electrical connection 2 (EF002527) Bolt connection
Number of clamp positions per level (EF002660) 2
Suitable for conductor material (EF012572) Aluminium/copper
Mounting method (EF000003) DIN rail (top hat rail) 35 mm
Material insulation body (EF007543) Other
Operating temperature (EF002393) -60 °C
Inflammability class of insulation material according to UL94 (EF002521) V0
Width (EF000008) 16.3 mm
Height (EF000040) 66 mm
Depth (EF000049) 51 mm
Closing plate required (EF002525) Yes
Colour (EF000007) Grey
Internally connected stages (EF002661) Yes
