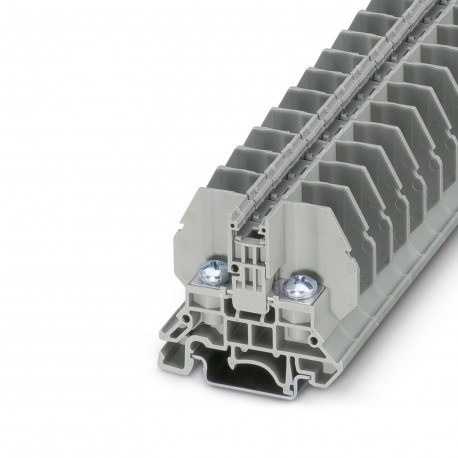

PHOENIX CONTACT RSC 5 RSC 5 3058143 PHOENIX CONTACT Bolt connection terminal block View larger
Images are for illustrative purposes only. Please refer to data sheet for details

RSC 5 3058143 PHOENIX CONTACT Bolt connection terminal block

RSC 5

3058143

PHOENIX CONTACT

50 Pcs.

Bolt connection terminal block Feed-through terminal block with bolt connection technology, cross-section 0.1 - 10 mm², AWG: 26 - 8, width 13 mm, colour: grey

Automation > Feed-through terminal block
Modular TBs

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Technical data
Product properties
Product typeBolt connection terminal block
Product familyRSC
Pitch13 mm
Number of connections2
Number of rows1
Potentials1
Data management status
Article revision02
Insulation characteristics
Overvoltage categoryIII
Degree of pollution3
Electrical properties
Rated surge voltage8 kV
Maximum power dissipation for nominal condition1.82 W
Connection data
Number of connections per level2
Nominal cross section10 mm²
1 level
Screw threadM5
Stripping lengthThe stripping length depends on the specification provided by the cable lug manufacturer.
Connection in acc. with standardIEC 60947-7-1
Nominal current57 A
Maximum load current57 A (with 10 mm² conductor cross section)
Nominal voltage1000 V
Nominal cross section10 mm²
Cable lug connection DIN 46234:1980-03
Connection in acc. with standardDIN 46234:1980-03
Cross section0.1 mm² ... 10 mm²
Cross section range AWG26 ... 8 (converted acc. to IEC)
Hole diameter5.3 mm
Width10 mm
Bolt diameter5 mm
Screw threadM5
Tightening torque2 ... 2.2 Nm
Connection in acc. with standardDIN 46237:1970-07
Cross section0.5 mm² ... 6 mm²
Cross section range AWG20 ... 10 (converted acc. to IEC)
Hole diameter5.3 mm
Width10 mm
Bolt diameter5 mm
Screw threadM5
Tightening torque2 ... 2.2 Nm
Identification color of ring cable lugs : red1 mm²
Identification color of ring cable lugs : blue2.5 mm²
Identification color of ring cable lugs : yellow6 mm²
Dimensions
Width13 mm
End cover width2.2 mm
Height53.3 mm
Depth on NS 3252.1 mm
Depth on NS 35/7,547.1 mm
Depth on NS 35/1554.6 mm
Pitch13 mm
Material specifications
Colorgray (RAL 7042)
Flammability rating according to UL 94V0
Insulating material groupI
Insulating materialPA
Static insulating material application in cold-60 °C
Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21))130 °C
Relative insulation material temperature index (Elec., UL 746 B)130 °C
Fire protection for rail vehicles (DIN EN 45545-2) R22HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R23HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R24HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R26HL 1 - HL 3
Calorimetric heat release NFPA 130 (ASTM E 1354)28 MJ/kg
Surface flammability NFPA 130 (ASTM E 162)passed
Specific optical density of smoke NFPA 130 (ASTM E 662)passed
Smoke gas toxicity NFPA 130 (SMP 800C)passed
Electrical tests
Surge voltage test
Test voltage setpoint9.8 kV
ResultTest passed
Temperature-rise test
Requirement temperature-rise testIncrease in temperature ≤ 45 K
ResultTest passed
Short-time withstand current 10 mm²1.2 kA
ResultTest passed
Power-frequency withstand voltage
Test voltage setpoint2 kV
ResultTest passed
Mechanical properties
Mechanical data
Open side panelYes
Mechanical tests
Mechanical strength
ResultTest passed
Attachment on the carrier
DIN rail/fixing supportNS 32/NS 35
Test force setpoint5 N
ResultTest passed
Environmental and real-life conditions
Needle-flame test
Time of exposure30 s
ResultTest passed
Oscillation/broadband noise
SpecificationDIN EN 50155 (VDE 0115-200):2008-03
SpectrumService life test category 1, class B, body mounted
Frequencyf1= 5 Hz to f2= 150 Hz
ASD level1.857 (m/s²)²/Hz
Acceleration0.8g
Test duration per axis5 h
Test directionsX-, Y- and Z-axis
ResultTest passed
Shocks
SpecificationDIN EN 50155 (VDE 0115-200):2008-03
Pulse shapeHalf-sine
Acceleration5g
Shock duration30 ms
Number of shocks per direction3
Test directionsX-, Y- and Z-axis (pos. and neg.)
ResultTest passed
Ambient conditions
Ambient temperature (operation)-60 °C ... 110 °C (Operating temperature range incl. self-heating; for max. short-term operating temperature, see RTI Elec.)
Ambient temperature (storage/transport)-25 °C ... 60 °C (for a short time, no longer than 24 h, -60°C to +70°C)
Ambient temperature (assembly)-5 °C ... 70 °C
Ambient temperature (actuation)-5 °C ... 70 °C
Permissible humidity (operation)20 % ... 90 %
Permissible humidity (storage/transport)30 % ... 70 %
Standards and regulations
Connection in acc. with standardIEC 60947-7-1
Mounting
Mounting typeNS 35/7,5
NS 35/15
NS 32

ETIM for 3058143 Terminal blocks (EC000897)
Feature Name Feature Value
Rated current In (EF008250) 57 A
Rated voltage (EF000228) 1000 V
Type of electrical connection 1 (EF002526) Bolt connection
Type of electrical connection 2 (EF002527) Bolt connection
Number of clamp positions per level (EF002660) 2
Suitable for conductor material (EF012572) Aluminium/copper
Mounting method (EF000003) DIN rail (top hat rail) 35 mm
Material insulation body (EF007543) Other
Operating temperature (EF002393) -60 °C
Inflammability class of insulation material according to UL94 (EF002521) V0
Width (EF000008) 13 mm
Height (EF000040) 53.3 mm
Depth (EF000049) 47.1 mm
Closing plate required (EF002525) Yes
Colour (EF000007) Grey
Internally connected stages (EF002661) Yes
