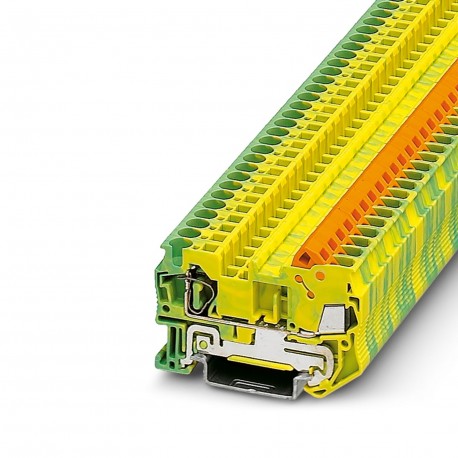

QTCS 2,5-PE 3206526 PHOENIX CONTACT アース端子台
QTCS 2,5-PE
3206526
PHOENIX CONTACT
50 Pcs.
アース端子台
Ground terminal block, 1st floor, connection type: Quick connection, cross-section: 0.5 mm² - 2.5 mm², connection type: Spring connection, cross-section: 0.08 mm² - 6 mm², mounting: NS 35/7.5, NS 35/15, colour: yellow-green
Automation > Ground terminal block
Enclosures connectivity
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 3206526 |
|---|---|
| Packing unit | 50 pc |
| Minimum order quantity | 50 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 211 (C-1-2017) |
| GTIN | 4046356057707 |
| Weight per Piece (excluding packing) | 12.120 g |
| Custom tariff number | 85369010 |
| Country of origin | CN (China) |
General
| Number of levels | 1 |
|---|---|
| Number of connections | 2 |
| Nominal cross section | 2.5 mm² |
| Color | green-yellow |
| Insulating material | PA |
| Flammability rating according to UL 94 | V0 |
| Rated surge voltage | 8 kV |
| Degree of pollution | 3 |
| Overvoltage category | III |
| Insulating material group | I |
| Ambient temperature (actuation) | -10 °C ... 90 °C |
| Connection method | Quick connection |
| Connection in acc. with standard | IEC 60947-7-2 |
| Connection method | Spring-cage connection |
| Connection in acc. with standard | IEC 60947-7-2 |
| Open side panel | Yes |
| Relative insulation material temperature index (Elec., UL 746 B) | 130 °C |
| Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)) | 130 °C |
| Static insulating material application in cold | -60 °C |
| Behavior in fire for rail vehicles (DIN 5510-2) | Test passed |
| Flame test method (DIN EN 60695-11-10) | V0 |
| Oxygen index (DIN EN ISO 4589-2) | >32 % |
| NF F16-101, NF F10-102 Class I | 2 |
| NF F16-101, NF F10-102 Class F | 2 |
| Surface flammability NFPA 130 (ASTM E 162) | passed |
| Specific optical density of smoke NFPA 130 (ASTM E 662) | passed |
| Smoke gas toxicity NFPA 130 (SMP 800C) | passed |
| Calorimetric heat release NFPA 130 (ASTM E 1354) | 28 MJ/kg |
| Fire protection for rail vehicles (DIN EN 45545-2) R22 | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R23 | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R24 | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R26 | HL 1 - HL 3 |
Dimensions
| Width | 6.2 mm |
|---|---|
| Length | 59.7 mm |
| Height NS 35/7,5 | 39.3 mm |
| Height NS 35/15 | 46.8 mm |
| End cover width | 2.2 mm |
Connection data
| Connection method | Quick connection |
|---|---|
| Connection in acc. with standard | IEC 60947-7-2 |
| Note | Please observe the current carrying capacity of the DIN rails. |
| Max. wire diameter incl. insulation | 3.8 mm |
| Conductor cross section solid min. | 0.5 mm² |
| Conductor cross section solid max. | 2.5 mm² |
| Conductor cross section AWG min. | 20 |
| Conductor cross section AWG max. | 14 |
| Conductor cross section flexible min. | 0.5 mm² |
| Conductor cross section flexible max. | 2.5 mm² |
| Min. AWG conductor cross section, flexible | 20 |
| Max. AWG conductor cross section, flexible | 14 |
| Connection in acc. with standard | IEC/EN 60079-7 |
| Test certificate name | KEMA 05ATEX2148 U |
| Conductor cross section AWG min. | 20 |
| Conductor cross section AWG max. | 14 |
| Material wire insulation | PVC / PE |
Standards and Regulations
| Connection in acc. with standard | CUL |
|---|---|
| IEC 60947-7-2 | |
| IEC 60947-7-2 | |
| Flammability rating according to UL 94 | V0 |
| Fire protection for rail vehicles (DIN EN 45545-2) R22 | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R23 | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R24 | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R26 | HL 1 - HL 3 |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
