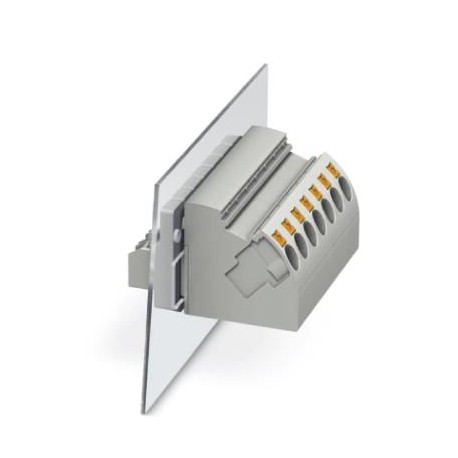

PW 4-POT-SCM 3056938 PHOENIX CONTACT Panel feed-through terminal block

PW 4-POT-SCM

3056938

PHOENIX CONTACT

50 Pcs.

Panel feed-through terminal block Terminal block, connection type: Push-in spring connection, Flat plug connection, number of poles: 1, charging current: 18 A, cross-section: 0.2 mm² - 4 mm², conductor connection direction with respect to the plug direction: 45 °, width: 8.1 mm

Automation > Panel feed-through terminal block
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey3056938
Packing unit50 pc
Minimum order quantity50 pc
Catalog pagePage 601 (C-1-2013)
GTIN4046356485500
Weight per Piece (excluding packing)8.660 g
Custom tariff number85369010
Country of originCN (China)

General

Number of levels1
Number of connections2
Nominal cross section4 mm²
Colorgray
Insulating materialPA
Flammability rating according to UL 94V0
Maximum load current20 A
Rated surge voltage8 kV
Degree of pollution3
Overvoltage categoryIII
Insulating material groupI
Ambient temperature (operation)-40 °C ... 105 °C
Connection in acc. with standardIEC 60947-7-1
Nominal current IN18 A
Maximum load current18 A
Nominal voltage UN800 V
Open side panelNo
Number of positions1

Dimensions

Width8.1 mm
Pitch8.1 mm
Plate thickness1 mm ... 4 mm

Connection data

Connection sideoutside
Connection methodPush-in spring connection
Conductor cross section solid min.0.2 mm²
Conductor cross section solid max.4 mm²
Conductor cross section flexible min.0.2 mm²
Conductor cross section flexible max.6 mm²
Conductor cross section AWG min.24
Conductor cross section AWG max.12
Conductor cross section flexible, with ferrule without plastic sleeve min.0.25 mm²
Conductor cross section flexible, with ferrule without plastic sleeve max.6 mm²
Conductor cross section flexible, with ferrule with plastic sleeve min.0.25 mm²
Conductor cross section flexible, with ferrule with plastic sleeve max.4 mm²
2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, min.0.5 mm²
2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, max.1 mm²
Stripping length10 mm
Internal cylindrical gageA4
Connection sideinside
Connection methodSlip-on connection
Slip-on connection6.3 x 0.8 mm

Standards and Regulations

Connection in acc. with standardCSA
IEC 60947-7-1
Flammability rating according to UL 94V0

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

Classifications


ETIM for 3056938 Terminal blocks (EC001283)
Feature Name Feature Value
Connectable conductor cross section fine-strand without cable end sleeve (EF007341) 0.2 mm²
Connectable conductor cross section fine-strand with cable end sleeve (EF007339) 0.25 mm²
Connectable conductor cross section solid-core (EF007337) 0.2 mm²
Rated voltage (EF000228) 800 V
Type of electrical connection 1 (EF002526) Other
Type of electrical connection 2 (EF002527) Flat plug-in connection
Number of poles (EF001391) 1
Number of clamp positions per pole (EF002519) 2
Material insulation body (EF007543) Other
Operating temperature (EF002393) -40 °C
Inflammability class of insulation material according to UL94 (EF002521) V0
Colour (EF000007) Grey

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
