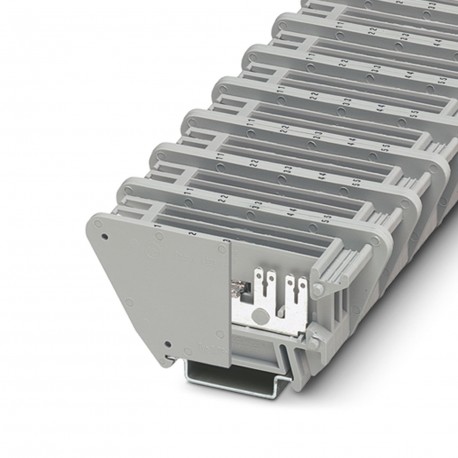

PHOENIX CONTACT PVB 3 PVB 3 0870036 PHOENIX CONTACT Feed-through terminal block View larger
Images are for illustrative purposes only. Please refer to data sheet for details

PVB 3 0870036 PHOENIX CONTACT Feed-through terminal block

PVB 3

0870036

PHOENIX CONTACT

10 Pcs.

Feed-through terminal block Feed-through terminal, nominal voltage: 800 V, nominal current: 30 A, number of connections: 6, number of poles: 1, connection type: Flat plug connection, 1st floor, cross-section: 0.5 mm² - 6 mm², mounting class: NS 35/7.5, NS 35/15, colour: grey

Automation > Feed-through terminal block
Enclosures connectivity

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey0870036
Packing unit10 pc
Minimum order quantity10 pc
Catalog pagePage 500 (C-1-2017)
GTIN4017918241070
Weight per Piece (excluding packing)34.000 g
Custom tariff number85369010
Country of originPL (Poland)

General

Number of positions1
Number of levels1
Number of connections6
Colorgray
Insulating materialPA
Flammability rating according to UL 94V2
Rated surge voltage8 kV
Degree of pollution3
Overvoltage categoryIII
Insulating material groupI
Maximum load current30 A (current data for slip-on connections in acc. with EN 61210 are also dependent on nominal size, material, insulation of the sleeve and conductor cross section.)
Nominal current IN30 A (current data for slip-on connections in acc. with EN 61210 are also dependent on nominal size, material, insulation of the sleeve and conductor cross section.)
Nominal voltage UN800 V (voltage data for slip-on connections in acc. with EN 61210 are also dependent on nominal size, material, insulation of the sleeve and conductor cross section.)
Open side panelNo

Dimensions

Width23.2 mm
Length80 mm
Height NS 35/7,543.5 mm
Height NS 35/1551 mm

Connection data

Connection methodSlip-on connection
Conductor cross section solid min.0.5 mm²
Conductor cross section solid max.6 mm²
Conductor cross section AWG min.20
Conductor cross section AWG max.10
Conductor cross section flexible min.0.5 mm²
Conductor cross section flexible max.6 mm²
Min. AWG conductor cross section, flexible20
Max. AWG conductor cross section, flexible10
Conductor cross section flexible, with ferrule with plastic sleeve min.0.5 mm²
Conductor cross section flexible, with ferrule with plastic sleeve max.6 mm²
Slip-on connection6.3/2.8 x 0.8 mm

Standards and Regulations

Flammability rating according to UL 94V2

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values
