View larger
Images are for illustrative purposes only. Please refer to data sheet for details

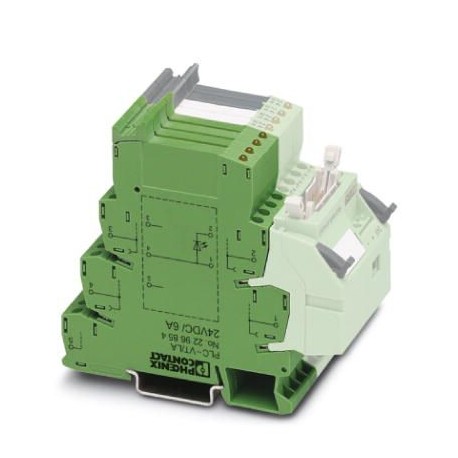

PLC-VT/LA 2296854 PHOENIX CONTACT Feed-through terminal block
PLC-VT/LA
2296854
PHOENIX CONTACT
10 Pcs.
Feed-through terminal block
VARIOFACE feed-through terminal block (2-conductor screw connection), for PLC-INTERFACE universal series, with 24 V DC light display
Automation > Accessories/spare parts for switching relay
INTERFACE Components (IF)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 2296854 |
|---|---|
| Packing unit | 10 pc |
| Minimum order quantity | 10 pc |
| Catalog page | Page 546 (C-5-2017) |
| GTIN | 4017918821623 |
| Weight per Piece (excluding packing) | 28.290 g |
| Custom tariff number | 85369010 |
| Country of origin | DE (Germany) |
Ambient conditions
| Ambient temperature (operation) | -40 °C ... 70 °C |
|---|---|
| Ambient temperature (storage/transport) | -40 °C ... 70 °C |
General
| Max. perm. operating voltage | 30 V DC |
|---|---|
| Nominal voltage UN | 18 V DC ... 33.6 V DC |
| Max. perm. current (per branch) | 6 A (per signal conductor) |
| 6 A (per connection terminal block with jumper location) | |
| Status display | Green LED |
| Mounting position | any |
| Assembly instructions | In rows with zero spacing |
| Degree of protection | IP20 |
Connection data for connection 1
| Connection name | Supply |
|---|---|
| Connection in acc. with standard | IEC / EN |
| Connection method | Screw connection |
| Stripping length | 8 mm |
| Screw thread | M3 |
| Conductor cross section solid | 0.2 mm² ... 4 mm² |
| Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
| Conductor cross section AWG | 24 ... 12 |
| Number of connections | 1 |
Standards and Regulations
| Connection in acc. with standard | CUL |
|---|---|
| Standards/regulations | DIN EN 50178 |
| IEC 60664 | |
| Rated insulation voltage | 50 V |
| Rated surge voltage | 0.5 kV (Functional insulation) |
| Degree of pollution | 2 |
| Overvoltage category | II |
| Flammability rating according to UL 94 | V0 |
Environmental Product Compliance
| China RoHS | Environmentally Friendly Use Period = 50 |
|---|---|
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
eCl@ss 5.027371692eCl@ss 5.127371600eCl@ss 6.027379200eCl@ss 7.027379208eCl@ss 8.027379208eCl@ss 9.027371692
| Feature Name | Feature Value |
|---|---|
| Accessory (EF013236) | Yes |
| Spare part (EF013237) | No |
