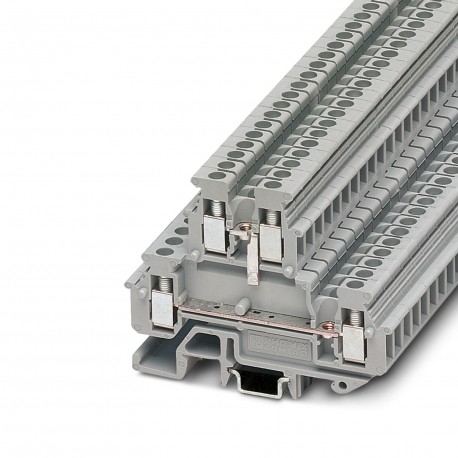

PHOENIX CONTACT MBKKB 2,5-BE MBKKB 2,5-BE 1414103 PHOENIX CONTACT Mini feed-through terminal block View larger
Images are for illustrative purposes only. Please refer to data sheet for details

MBKKB 2,5-BE 1414103 PHOENIX CONTACT Mini feed-through terminal block

MBKKB 2,5-BE

1414103

PHOENIX CONTACT

50 Pcs.

Mini feed-through terminal block Mini-terminal block, Maximum width of the components to be welded: 4 mm, for the assembly of self-selecting components, nominal voltage: 500 V, nominal current: 24 A, 1st and 2nd floor, type of connection: Screw connection, Sizing section: 2.5 mm², cross-section: 0.2 mm² - 4 mm², mounting: NS 15, NS 35/7.5, NS 35/15, color: gray Mini feed-through terminal block, Maximum width of components to be soldered in: 4 mm, for installing components that can be individually selected, nom. voltage: 500 V, nominal current: 24 A, 1st and 2nd level, connection method: Screw connection, Rated cross section: 2.5 mm2, cross section: 0.2 mm2 - 4 mm2, mounting: NS 15, NS 35/7,5, NS 35/15, color: gray

Automation > Component terminal block
Modular TBs

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Technical data
Notes
Notes on operationMaximum width of components to be soldered in: 4 mm
Product properties
Product typeMiniature terminal block
Number of positions2
Number of connections4
Number of rows2
Data management status
Article revision08
Insulation characteristics
Overvoltage categoryIII
Degree of pollution3
Electrical properties
Rated surge voltage6 kV
Maximum power dissipation for nominal condition0.77 W
Connection data
Number of connections per level2
Nominal cross section2.5 mm²
1st and 2nd level
Screw threadM3
Tightening torque0.5 ... 0.6 Nm
Stripping length7 mm
Internal cylindrical gageA3
Connection in acc. with standardIEC 60947-7-1
Conductor cross section rigid0.2 mm² ... 4 mm²
Cross section AWG24 ... 12 (converted acc. to IEC)
Conductor cross section flexible0.2 mm² ... 2.5 mm²
Conductor cross section, flexible [AWG]24 ... 14 (converted acc. to IEC)
Conductor cross-section flexible (ferrule without plastic sleeve)0.25 mm² ... 2.5 mm²
Flexible conductor cross section (ferrule with plastic sleeve)0.25 mm² ... 2.5 mm²
Cross-section with insertion bridge, rigid2.5 mm²
Cross-section with insertion bridge, flexible2.5 mm²
2 conductors with same cross section, solid0.2 mm² ... 1 mm²
2 conductors with same cross section, flexible0.2 mm² ... 1.5 mm²
2 conductors with same cross section, flexible, with ferrule without plastic sleeve0.25 mm² ... 1.5 mm²
2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve0.5 mm² ... 1.5 mm²
Nominal current24 A
Maximum load current24 A (with a 2.5 mm² conductor cross section)
Nominal voltage500 V (Data is based on the dielectric strength of adjacent terminal blocks or of the DINg rail.)
Nominal cross section2.5 mm²
Dimensions
Width5.2 mm
End cover width2.5 mm
Height62 mm
Depth on NS 1547.5 mm
Depth on NS 35/7,548 mm
Depth on NS 35/1555.5 mm
Material specifications
Colorgray (RAL 7042)
Flammability rating according to UL 94V2
Insulating material groupI
Insulating materialPA
Mechanical properties
Mechanical data
Open side panelYes
Environmental and real-life conditions
Ambient conditions
Ambient temperature (operation)-60 °C ... 110 °C (Operating temperature range incl. self-heating; for max. short-term operating temperature, see RTI Elec.)
Ambient temperature (storage/transport)-25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C)
Ambient temperature (assembly)-5 °C ... 70 °C
Ambient temperature (actuation)-5 °C ... 70 °C
Permissible humidity (operation)20 % ... 90 %
Permissible humidity (storage/transport)30 % ... 70 %
Standards and regulations
Connection in acc. with standardIEC 60947-7-1
Mounting
Mounting typeNS 15
NS 35/7,5
NS 35/15

ETIM for 1414103 Terminal blocks (EC000903)
Feature Name Feature Value
Connectable conductor cross section fine-strand without cable end sleeve (EF007341) 0.2 mm²
Connectable conductor cross section fine-strand with cable end sleeve (EF007339) 0.25 mm²
Connectable conductor cross section solid-core (EF007337) 0.2 mm²
Connectable conductor cross section multi-wired (EF007343) 0.2 mm²
Rated current In (EF008250) 24 A
Rated voltage (EF000228) 500 V
Type of electrical connection 1 (EF002526) Screw connection
Type of electrical connection 2 (EF002527) Screw connection
Number of levels (EF002659) 2
Number of clamp positions per level (EF002660) 2
Internally connected stages (EF002661) No
Mounting method (EF000003) DIN rail (top hat rail) 15 mm
Material insulation body (EF007543) Other
Inflammability class of insulation material according to UL94 (EF002521) V2
Width (EF000008) 5.2 mm
Height (EF000040) 62 mm
Depth (EF000049) 47.5 mm
Closing plate required (EF002525) Yes
Colour (EF000007) Grey

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
