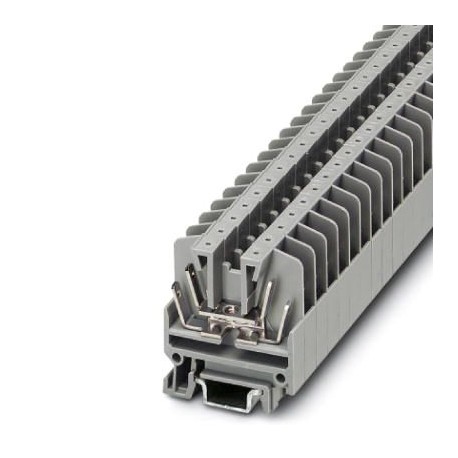

PHOENIX CONTACT MBK 5/E-FS/FS MBK 5/E-FS/FS 1417074 PHOENIX CONTACT Mini feed-through terminal block View larger
Images are for illustrative purposes only. Please refer to data sheet for details

MBK 5/E-FS/FS 1417074 PHOENIX CONTACT Mini feed-through terminal block

MBK 5/E-FS/FS

1417074

PHOENIX CONTACT

50 Pcs.

Mini feed-through terminal block Mini-terminal block, nominal voltage: 500 V, nominal current: 16 A, 1st floor, right-hand connection, connection type: Flat plug connection, cross-section: 0.5 mm² - 1 mm², mounting: NS 15, colour: grey

Automation > Feed-through terminal block
Enclosures connectivity

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1417074
Packing unit50 pc
Minimum order quantity50 pc
Catalog pagePage 521 (CL1-2011)
GTIN4017918021511
Weight per Piece (excluding packing)3.960 g
Custom tariff number85369010
Country of originPL (Poland)

General

Number of levels1
Number of connections8
Nominal cross section4 mm²
Colorgray
Insulating materialPA-F
Flammability rating according to UL 94HB
Rated surge voltage6 kV
Degree of pollution3
Overvoltage categoryIII
Insulating material groupI
Maximum power dissipation for nominal condition1.02 W
Connection methodSlip-on connection
Maximum load current16 A
Nominal current IN16 A
Nominal voltage UN500 V (current data for slip-on connections in acc. with DIN 61210 are also dependent on nominal size, material, insulation of the sleeve and conductor cross section.)
Open side panelYes

Dimensions

Width6.2 mm
Length28 mm
End cover width1 mm

Connection data

Connection methodSlip-on connection
Conductor cross section solid min.0.5 mm²
Conductor cross section solid max.1 mm²
Conductor cross section AWG min.20
Conductor cross section AWG max.18
Conductor cross section flexible min.0.5 mm²
Conductor cross section flexible max.1 mm²
Min. AWG conductor cross section, flexible20
Max. AWG conductor cross section, flexible18
Conductor cross section flexible, with ferrule with plastic sleeve min.0.5 mm²
Conductor cross section flexible, with ferrule with plastic sleeve max.1 mm²
Slip-on connection6.3/2.8 x 0.8 mm

Standards and Regulations

Connection in acc. with standardCUL
Flammability rating according to UL 94HB

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

Classifications
