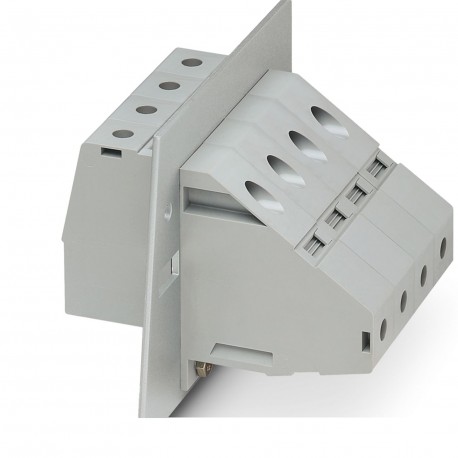

HDFKV 95-F 0709673 PHOENIX CONTACT Panel feed-through terminal block
HDFKV 95-F
0709673
PHOENIX CONTACT
10 Pcs.
Panel feed-through terminal block
Terminal block, connection type: Screw connection with traction capsule, Screw connection with traction capsule, number of poles: 1, charging current: 232 A, cross-section: 25 mm² - 95 mm², conductor connection direction with respect to the plug direction: -90 °, width: 25 mm
Automation > Panel feed-through terminal block
PCB Connectors (PCC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 0709673 |
|---|---|
| Packing unit | 10 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 621 (C-1-2013) |
| GTIN | 4017918104061 |
| Weight per Piece (excluding packing) | 267.000 g |
| Custom tariff number | 85369010 |
| Country of origin | GR (Greece) |
General
| Number of levels | 1 |
|---|---|
| Number of connections | 2 |
| Nominal cross section | 95 mm² |
| Color | gray |
| Insulating material | PA |
| Flammability rating according to UL 94 | V0 |
| Maximum load current | 232 A |
| Rated surge voltage | 8 kV |
| Degree of pollution | 3 |
| Overvoltage category | III |
| Insulating material group | I |
| Connection in acc. with standard | IEC 60947-7-1 |
| Nominal current IN | 232 A |
| Maximum load current | 232 A |
| Nominal voltage UN | 1000 V (With metal panels of 1 mm ... 2.5 mm) |
| 800 V (With metal panels over 2.5 mm ... 5 mm) | |
| 690 V (With metal panels over 5 mm ... 6 mm) | |
| Open side panel | No |
| Number of positions | 1 |
Connection data
| Note | Terminal sleeve |
|---|---|
| Connection side | Level 1 ext. 1 |
| Connection method | Screw connection |
| Note | Note: Product releases, connection cross sections and notes on connecting aluminum cables can be found in the download area. |
| Conductor cross section solid min. | 25 mm² |
| Conductor cross section solid max. | 95 mm² |
| Conductor cross section flexible min. | 35 mm² |
| Conductor cross section flexible max. | 95 mm² |
| Conductor cross section AWG min. | 4 |
| Conductor cross section AWG max. | 3/0 |
| Conductor cross section flexible, with ferrule without plastic sleeve min. | 35 mm² |
| Conductor cross section flexible, with ferrule without plastic sleeve max. | 95 mm² |
| Conductor cross section flexible, with ferrule with plastic sleeve min. | 35 mm² |
| Conductor cross section flexible, with ferrule with plastic sleeve max. | 95 mm² |
| 2 conductors with same cross section, solid min. | 16 mm² |
| 2 conductors with same cross section, solid max. | 35 mm² |
| 2 conductors with same cross section, stranded min. | 16 mm² |
| 2 conductors with same cross section, stranded max. | 35 mm² |
| 2 conductors with same cross section, stranded, ferrules without plastic sleeve, min. | 16 mm² |
| 2 conductors with same cross section, stranded, ferrules without plastic sleeve, max. | 35 mm² |
| Stripping length | 27 mm |
| Internal cylindrical gage | B12 |
| Screw thread | M8 |
| Tightening torque, min | 15 Nm |
| Tightening torque max | 20 Nm |
Standards and Regulations
| Connection in acc. with standard | CSA |
|---|---|
| IEC 60947-7-1 | |
| Flammability rating according to UL 94 | V0 |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Environmentally Friendly Use Period = 50 |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
