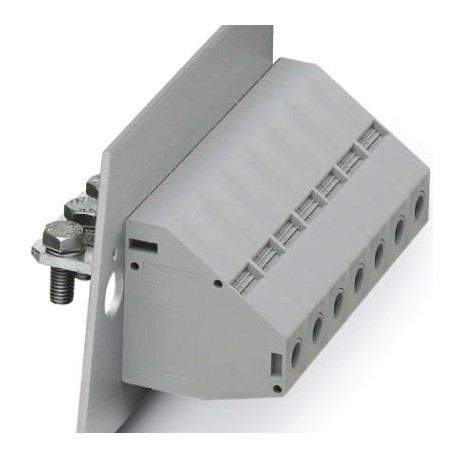

HDFKV 50-VP 0708580 PHOENIX CONTACT Panel feed-through terminal block, Connection method: Screw connection, ..
HDFKV 50-VP
0708580
PHOENIX CONTACT
10 Pcs.
Panel feed-through terminal block, Connection method: Screw connection, Bolt connection, Load current : 150 A, Cross section: 16 mm²
Wall terminal block, connection type: Screw connection with traction capsule, Terminal connection, number of poles: 1, charging current: 150 A, cross-section: 16 mm² - 50 mm², conductor connection direction with respect to the plug direction: -90 °, width: 18.8 mm
Automation > Panel feed-through terminal block
PCB Connectors (PCC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲General
| Number of levels | 1 |
|---|---|
| Number of connections | 2 |
| Nominal cross section | 50 mm² |
| Color | gray |
| Insulating material | PA |
| Flammability rating according to UL 94 | V0 |
General
| Maximum load current | 150 A |
|---|---|
| Rated surge voltage | 8 kV |
| Pollution degree | 3 |
| Overvoltage category | III |
| Insulating material group | I |
| Connection in acc. with standard | IEC 60947-7-1 |
| Nominal current IN | 150 A |
| Maximum load current | 150 A |
| Nominal voltage UN | 690 V |
| Open side panel | nein |
| Number of positions | 1 |
Dimensions
| Width | 18.8 mm |
|---|---|
| Length | 90 mm |
| Plate thickness | 1 mm ... 6 mm |
Connection data
| Note | Terminal sleeve |
|---|---|
| Connection side | Level 1 ext. 1 |
| Connection method | Screw connection |
| Note | Note: Product releases, connection cross sections and notes on connecting aluminum cables can be found in the download area. |
| Conductor cross section solid min. | 16 mm² |
| Conductor cross section solid max. | 50 mm² |
| Conductor cross section flexible min. | 16 mm² |
| Conductor cross section flexible max. | 50 mm² |
| Conductor cross section AWG min. | 6 |
| Conductor cross section AWG max. | 1/0 |
| Conductor cross section flexible, with ferrule without plastic sleeve min. | 10 mm² |
| Conductor cross section flexible, with ferrule without plastic sleeve max. | 50 mm² |
| Conductor cross section flexible, with ferrule with plastic sleeve min. | 10 mm² |
| Conductor cross section flexible, with ferrule with plastic sleeve max. | 50 mm² |
| 2 conductors with same cross section, solid min. | 6 mm² |
| 2 conductors with same cross section, solid max. | 16 mm² |
| 2 conductors with same cross section, stranded min. | 10 mm² |
| 2 conductors with same cross section, stranded max. | 16 mm² |
| 2 conductors with same cross section, stranded, ferrules without plastic sleeve, min. | 6 mm² |
| 2 conductors with same cross section, stranded, ferrules without plastic sleeve, max. | 16 mm² |
| 2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, min. | 6 mm² |
| 2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, max. | 10 mm² |
| Stripping length | 24 mm |
| Internal cylindrical gage | B10 |
| Screw thread | M6 |
| Tightening torque, min | 6 Nm |
| Tightening torque max | 8 Nm |
| Connection side | Level 1 int. 1 |
| Connection method | Bolt connection |
| Screw thread | M8 |
| Tightening torque, min | 12 Nm |
| Tightening torque max | 15 Nm |
