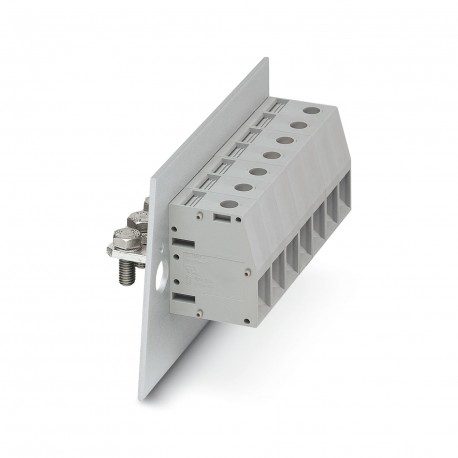

HDFK 50-VP/Z 0711218 PHOENIX CONTACT Panel feed-through terminal block
HDFK 50-VP/Z
0711218
PHOENIX CONTACT
10 Pcs.
Panel feed-through terminal block
Terminal block, connection type: Screw connection with traction capsule, Terminal connection, number of poles: 1, charging current: 150 A, cross-section: 16 mm² - 50 mm², conductor connection direction with respect to the plug direction: 0 °, width: 18.8 mm
Automation > Panel feed-through terminal block
PCB Connectors (PCC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 0711218 |
|---|---|
| Packing unit | 10 pc |
| Minimum order quantity | 10 pc |
| Catalog page | Page 619 (C-1-2013) |
| GTIN | 4017918311438 |
| Weight per Piece (excluding packing) | 80.210 g |
| Custom tariff number | 85369010 |
| Country of origin | GR (Greece) |
General
| Number of levels | 1 |
|---|---|
| Number of connections | 2 |
| Nominal cross section | 50 mm² |
| Color | gray |
| Insulating material | PA |
| Flammability rating according to UL 94 | V0 |
| Maximum load current | 150 A |
| Rated surge voltage | 8 kV |
| Degree of pollution | 3 |
| Overvoltage category | III |
| Insulating material group | I |
| Connection in acc. with standard | IEC 60947-7-1 |
| Nominal current IN | 150 A |
| Maximum load current | 150 A |
| Nominal voltage UN | 690 V |
| Open side panel | No |
| Number of positions | 1 |
Connection data
| Note | Terminal sleeve |
|---|---|
| Connection side | outside |
| Connection method | Screw connection |
| Conductor cross section solid min. | 16 mm² |
| Conductor cross section solid max. | 50 mm² |
| Conductor cross section flexible min. | 16 mm² |
| Conductor cross section flexible max. | 50 mm² |
| Conductor cross section AWG min. | 6 |
| Conductor cross section AWG max. | 1/0 |
| Conductor cross section flexible, with ferrule without plastic sleeve min. | 10 mm² |
| Conductor cross section flexible, with ferrule without plastic sleeve max. | 50 mm² |
| Conductor cross section flexible, with ferrule with plastic sleeve min. | 10 mm² |
| Conductor cross section flexible, with ferrule with plastic sleeve max. | 50 mm² |
| 2 conductors with same cross section, solid min. | 6 mm² |
| 2 conductors with same cross section, solid max. | 16 mm² |
| 2 conductors with same cross section, stranded min. | 10 mm² |
| 2 conductors with same cross section, stranded max. | 16 mm² |
| 2 conductors with same cross section, stranded, ferrules without plastic sleeve, min. | 6 mm² |
| 2 conductors with same cross section, stranded, ferrules without plastic sleeve, max. | 16 mm² |
| 2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, min. | 6 mm² |
| 2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, max. | 10 mm² |
| Stripping length | 24 mm |
| Internal cylindrical gage | B10 |
| Screw thread | M6 |
| Tightening torque, min | 6 Nm |
| Tightening torque max | 8 Nm |
| Connection side | inside |
| Connection method | Cable lug connection |
| Screw thread | M8 |
| Tightening torque, min | 12 Nm |
| Tightening torque max | 15 Nm |
Standards and Regulations
| Connection in acc. with standard | CSA |
|---|---|
| IEC 60947-7-1 | |
| Flammability rating according to UL 94 | V0 |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
