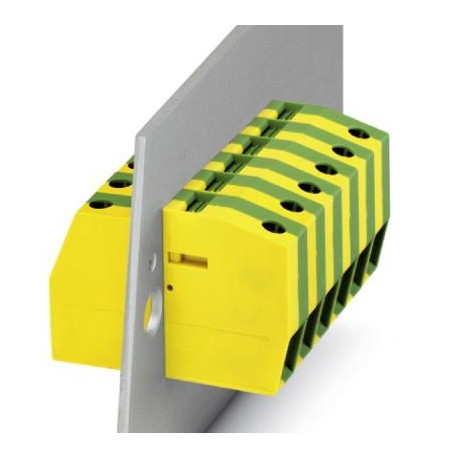

HDFK 25-PE 0707785 PHOENIX CONTACT PE panel panel feed-through terminal block, Connection method: Screw conn..
HDFK 25-PE
0707785
PHOENIX CONTACT
50 Pcs.
PE panel panel feed-through terminal block, Connection method: Screw connection, Load current : 125 A, Cross section: 6 mm²
Borne grommets, connection type: Screw connection with traction capsule, Screw connection with traction capsule, number of poles: 1, charging current: 101 A, section: 6 mm² - 35 mm², conductor connection direction with respect to the plug direction: 0 °, width: 15.1 mm, color: green-yellow
Automation > Panel feed-through terminal block
PCB Connectors (PCC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲General
| Number of levels | 1 |
|---|---|
| Number of connections | 2 |
| Nominal cross section | 25 mm² |
| Color | green-yellow |
| Insulating material | PA |
| Flammability rating according to UL 94 | V0 |
General
| Rated surge voltage | 6 kV |
|---|---|
| Pollution degree | 3 |
| Overvoltage category | III |
| Insulating material group | I |
| Connection in acc. with standard | IEC 60947-7-2 |
| Nominal current IN | 101 A |
| Maximum load current | 125 A |
| Nominal voltage UN | 500 V |
| Open side panel | nein |
| Number of positions | 1 |
Dimensions
| Width | 15.1 mm |
|---|
Connection data
| Note | Terminal sleeve |
|---|---|
| Connection side | Level 1 ext. 1 |
| Connection method | Screw connection |
| Note | Note: Product releases, connection cross sections and notes on connecting aluminum cables can be found in the download area. |
| Conductor cross section solid min. | 6 mm² |
| Conductor cross section solid max. | 35 mm² |
| Conductor cross section flexible min. | 10 mm² |
| Conductor cross section flexible max. | 25 mm² |
| Conductor cross section AWG min. | 10 |
| Conductor cross section AWG max. | 2 |
| Conductor cross section flexible, with ferrule without plastic sleeve min. | 4 mm² |
| Conductor cross section flexible, with ferrule without plastic sleeve max. | 25 mm² |
| Conductor cross section flexible, with ferrule with plastic sleeve min. | 4 mm² |
| Conductor cross section flexible, with ferrule with plastic sleeve max. | 25 mm² |
| 2 conductors with same cross section, solid min. | 2.5 mm² |
| 2 conductors with same cross section, solid max. | 10 mm² |
| 2 conductors with same cross section, stranded min. | 4 mm² |
| 2 conductors with same cross section, stranded max. | 10 mm² |
| 2 conductors with same cross section, stranded, ferrules without plastic sleeve, min. | 2.5 mm² |
| 2 conductors with same cross section, stranded, ferrules without plastic sleeve, max. | 10 mm² |
| 2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, min. | 2.5 mm² |
| 2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, max. | 10 mm² |
| Stripping length | 19 mm |
| Internal cylindrical gage | B8 |
| Screw thread | M5 |
| Tightening torque, min | 4 Nm |
| Tightening torque max | 4.5 Nm |
| Conductor cross section solid min. | 6 mm² |
| Conductor cross section solid max. | 35 mm² |
| Conductor cross section flexible min. | 10 mm² |
| Conductor cross section flexible max. | 25 mm² |
| Conductor cross section AWG min. | 10 |
| Conductor cross section AWG max. | 2 |
