PHOENIX CONTACT DFLK-D25 SUB/S DFLK-D25 SUB/S 2280310 PHOENIX CONTACT Interface module View larger
Images are for illustrative purposes only. Please refer to data sheet for details

DFLK-D25 SUB/S 2280310 PHOENIX CONTACT Interface module

DFLK-D25 SUB/S

2280310

PHOENIX CONTACT

5 Pcs.

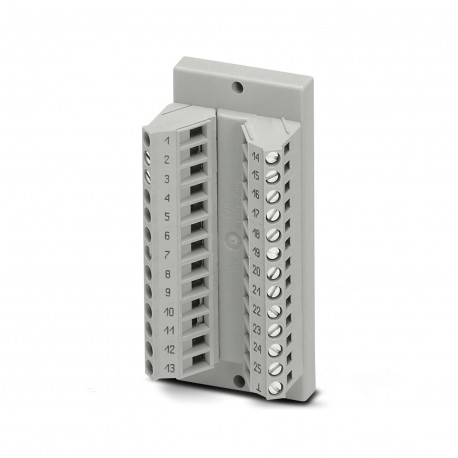

Interface module The VARIOFACE feed-through module makes a 1:1 connection between screw connection terminals and a subminiature D-plug (no. 25). A separate mass shunt is available.

Automation > Interface module
INTERFACE Components (IF)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey2280310
Packing unit5 pc
Catalog pagePage 575 (C-5-2017)
GTIN4017918054427
Weight per Piece (excluding packing)0.910 g
Custom tariff number85369010
Country of originDE (Germany)

Dimensions

Width39 mm
Height83.4 mm
Depth33 mm

Ambient conditions

Ambient temperature (operation)-20 °C ... 50 °C
Ambient temperature (storage/transport)-20 °C ... 70 °C

General

Max. perm. operating voltage25 V AC
60 V DC
Max. perm. current (per branch)2.5 A
Max. permissible current (all branches)50 A
Number of positions25
Mounting positionany
Assembly instructionsIn rows with zero spacing
Degree of protectionIP20

Connection data for connection 1

Connection nameField level
Connection in acc. with standardIEC / EN
Connection methodScrew connection
Stripping length8 mm
Screw threadM3
Conductor cross section solid0.2 mm² ... 4 mm²
Conductor cross section flexible0.2 mm² ... 2.5 mm²
Conductor cross section AWG24 ... 12

Connection data for connection 2

Connection nameController level
Connection methodD-SUB pin strip
Number of positions25

Standards and Regulations

Connection in acc. with standardCUL
Standards/regulationsIEC 60664
DIN EN 50178
Rated insulation voltage125 V
Rated surge voltage1.2 kV (Functional insulation)
Degree of pollution2
Overvoltage categoryII

Environmental Product Compliance

China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications


ETIM for 2280310 PLC's (EC002780)
Feature Name Feature Value
Type of electrical connection, field-sided (EF005525) Screw connection
Type of electrical connection, control sided (EF008549) D-Sub
Number of poles (EF001391) 25
Rated voltage (EF000228) 30 V
Rated current (EF000227) 2.5 A
Depth (EF000049) 33 mm
Width (EF000008) 39.88 mm
Height (EF000040) 83.4 mm
Mounting method (EF000003) Other

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
