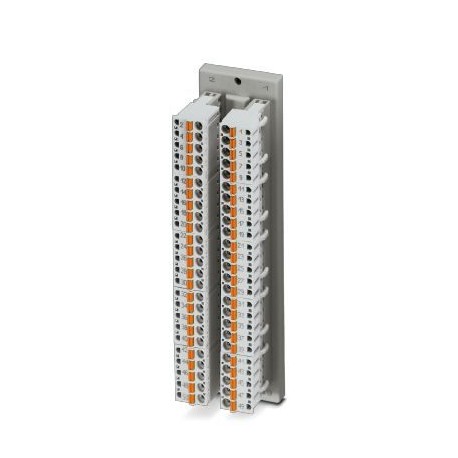

PHOENIX CONTACT DFLK 50/FKCT DFLK 50/FKCT 2903043 PHOENIX CONTACT Interface module View larger
Images are for illustrative purposes only. Please refer to data sheet for details

DFLK 50/FKCT 2903043 PHOENIX CONTACT Interface module

DFLK 50/FKCT

2903043

PHOENIX CONTACT

1 Pcs.

Interface module The VARIOFACE feed-through module makes a 1:1 connection between a push-in spring connection and an IDC/FLK plug (2.54 mm, no. 50 poles).

Automation > Interface module
INTERFACE Components (IF)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey2903043
Packing unit1 pc
NoteMade to Order (non-returnable)
Catalog pagePage 583 (C-7-2015)
GTIN4046356709583
Weight per Piece (excluding packing)178.200 g
Custom tariff number85369010
Country of originDE (Germany)

Dimensions

Width36.5 mm
Height143.4 mm
Depth60 mm

Ambient conditions

Ambient temperature (operation)-20 °C ... 50 °C
Ambient temperature (storage/transport)-20 °C ... 70 °C

General

Max. perm. operating voltage< 50 V AC
60 V DC
Max. perm. current (per branch)1 A
Number of positions50
Status displayNo
Mounting positionany
Degree of protectionIP20

Connection data for connection 1

Connection nameField level
Connection methodPlug-in push-in spring-cage connection
Stripping length10 mm
Conductor cross section solid0.2 mm² ... 2.5 mm²
Conductor cross section flexible0.2 mm² ... 2.5 mm²
Conductor cross section AWG24 ... 12

Connection data for connection 2

Connection nameController level
Connection methodIDC/FLK pin strip
Number of connections1
Number of positions50
Pitch2.54 mm

Standards and Regulations

Standards/regulationsDIN EN 50178
IEC 60664
Rated insulation voltage63 V
Rated surge voltage0.6 kV
InsulationFunctional insulation
Degree of pollution2
Overvoltage categoryII

Environmental Product Compliance

China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications


ETIM for 2903043 PLC's (EC002780)
Feature Name Feature Value
Type of electrical connection, field-sided (EF005525) Spring clamp connection
Type of electrical connection, control sided (EF008549) Blade terminal
Number of poles (EF001391) 50
Rated voltage (EF000228) 30 V
Rated current (EF000227) 1 A
Depth (EF000049) 58.77 mm
Width (EF000008) 38 mm
Height (EF000040) 143.4 mm
Mounting method (EF000003) Other
