DFLK 40 2280271 PHOENIX CONTACT Interface module

DFLK 40

2280271

PHOENIX CONTACT

5 Pcs.

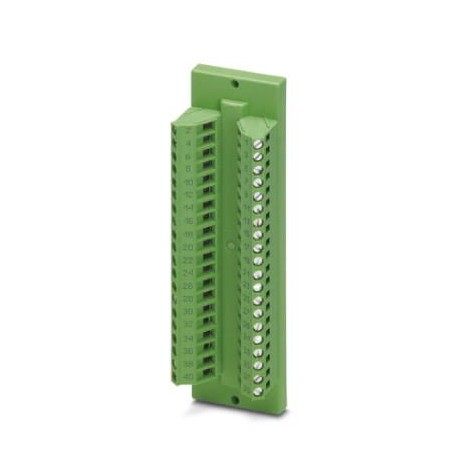

Interface module The VARIOFACE feed-through module makes a 1:1 connection between screw connection terminals and an IDC/FLK plug (2.54 mm, no. 40 poles).

Automation > Interface module
INTERFACE Components (IF)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey2280271
Packing unit5 pc
Catalog pagePage 582 (C-7-2015)
GTIN4017918054380
Weight per Piece (excluding packing)1.360 g
Custom tariff number85369010
Country of originDE (Germany)

Dimensions

Width39 mm
Height128.4 mm
Depth49 mm

Ambient conditions

Ambient temperature (operation)-20 °C ... 50 °C
Ambient temperature (storage/transport)-20 °C ... 70 °C

General

Max. perm. operating voltage< 50 V AC
60 V DC
Max. perm. current (per branch)1 A
Max. permissible current (all branches)40 A (TA= 50°C)
Number of positions40
Status displayNo
Mounting positionany
Degree of protectionIP20

Connection data for connection 1

Connection nameField level
Connection in acc. with standardIEC / EN
Connection methodScrew connection
Stripping length8 mm
Screw threadM3
Conductor cross section solid0.2 mm² ... 4 mm²
Conductor cross section flexible0.2 mm² ... 2.5 mm²
Conductor cross section AWG24 ... 12

Connection data for connection 2

Connection nameController level
Connection methodIDC/FLK pin strip
Number of connections1
Number of positions40
Pitch2.54 mm

Supported controller

ControllerALLEN-BRADLEY SLC 500
- suitable I/O card1746 OB 32
1746 OV 32
1746 IB 32
1746 IV 32

Standards and Regulations

DesignationAir clearances and creepage distances
Standards/regulationsDIN EN 50178
IEC 60664
Rated insulation voltage63 V
Rated surge voltage0.6 kV
InsulationFunctional insulation
Degree of pollution2
Overvoltage categoryII

Environmental Product Compliance

China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications


ETIM for 2280271 PLC's (EC002780)
Feature Name Feature Value
Type of electrical connection, field-sided (EF005525) Screw connection
Type of electrical connection, control sided (EF008549) Blade terminal
Number of poles (EF001391) 40
Rated voltage (EF000228) 30 V
Rated current (EF000227) 1 A
Depth (EF000049) 47.24 mm
Width (EF000008) 39.88 mm
Height (EF000040) 128.4 mm
Mounting method (EF000003) Other

Product Datasheet
