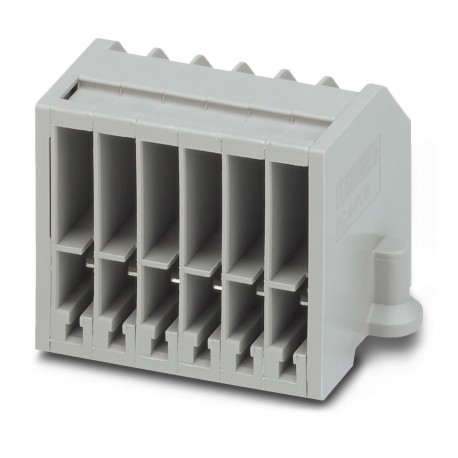

FC 4-PCB/6 1080100 PHOENIX CONTACT Housing base with a printed circuit board, 6-pin

FC 4-PCB/6

1080100

PHOENIX CONTACT

10 Pcs.

Housing base with a printed circuit board, 6-pin Base housing with printed circuit board, 6 poles

Automation > Endplate and partition plate for terminal block
Enclosures connectivity

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Technical data
Item Properties
Product TypeConnector
Number of poles6
Number of rows1
Potential6
Data Maintenance Status
Article Review01
Insulation Properties
Surge CategoryIii
Degree of pollution3
Electrical Properties
Dimensioning Transient Voltage4 kV
Maximum Dissipated Power with Nominal Condition0.77 W
Connection data
Nominal Section2.5 mm²
AWG Sizing Section14
Floor 1
Standard-compliant connectionIEC 61984
Rigid conductor section0.5 mm² ... 2.5 mm²
AWG Conductor Section20 ... 14 (Converted according to IEC)
Flexible conductor section0.5 mm² ... 2.5 mm²
Flexible Wire Section [AWG]20 ... 14 (Converted according to IEC)
Nominal current15 A
Maximum Charging Current15 A
Nominal voltage320 V
Dimensions
Width53.4 mm
Height29.1 mm
Depth34.3 mm
Material Data
Colourgrey (RAL 7042)
Flammability class according to UL 94V0
Insulating material groupI
Insulating materialPA
Static use of cold insulating material-60 °C
Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21))130 °C
Relative Insulating Material Temperature Index (Elec., UL 746 B)130 °C
Fire protection for rail vehicles (DIN EN 45545-2) R22HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R23HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R24HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R26HL 1 - HL 3
Heat Emission Calorimeter NFPA 130 (ASTM E 1354)28 MJ/kg
Flammability of NFPA 130 Surfaces (ASTM E 162)approved
NFPA 130 Specific Optical Flue Gas Density (ASTM E 662)approved
NFPA 130 Flue Gas Toxicity (SMP 800C)approved
Electrical Testing
Short-term permissible current 2.5 mm²0.01 kA
ResultApproved Test
Mechanical Properties
Mechanical data
Open sidewallNo
Environmental and life-life conditions
Life
Plug Cycles100
Needle Flame Test
Performance Time30 sec
ResultApproved Test
Broadband Oscillation/Noise
Test SpecificationDIN EN 60255-21-1:1996-05 (conformity)
frequency10 Hz ... 150 Hz
Acceleration1g (84.2 Hz ... 150 Hz)
Test DirectionsX, Y, and Z axes
ResultApproved Test
Crash
Test SpecificationDIN EN 60255-21-1:1996-05 (conformity)
Shock TypeSemi-sinusoid
Acceleration30g
Duration of the crash11 ms
Number of collisions per steering3
Test DirectionsX, Y, and Z axes (pos. and neg.)
ResultApproved Test
Environmental conditions
Ambient Temperature (Service)-60 °C ... 105 °C (for max. short-term operating temperature, see RTI Elec.)
Ambient Temperature (Storage/Transport)-25 °C ... 60 °C (for a short time, no more than 24 hours, -60 °C to +70 °C)
Ambient Temperature (Mounting)-5 °C ... 70 °C
Ambient Temperature (Drive)-5 °C ... 70 °C
Permissible air humidity (storage/transport)30 % ... 70 %
Standards & Specifications
Standard-compliant connectionIEC 61984
assembly
Type of mountingPrinted circuit board mounting

ETIM for 1080100 Terminal blocks (EC000886)
Feature Name Feature Value
Colour (EF000007) Grey
Thickness (EF000125) 53.4 mm
Inflammability class of insulation material according to UL94 (EF002521) V0

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
