View larger
Images are for illustrative purposes only. Please refer to data sheet for details

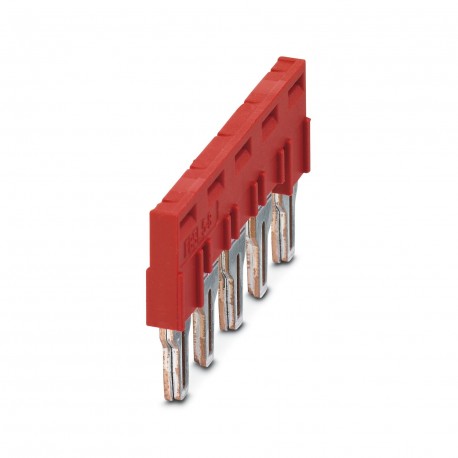

FBSL 5-8 3030327 PHOENIX CONTACT Plug-in bridge
FBSL 5-8
3030327
PHOENIX CONTACT
10 Pcs.
Plug-in bridge
Plug-in bridge, pitch: 8.2 mm, colour: red
Plug-in bridge, pitch: 8.2 mm, number of positions: 5, color: red
Connectors > Cross-connector for terminal block
Modular TBs
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Technical data
Product properties
| Product type | Jumper |
| Number of positions | 5 |
| Pitch | 8.2 mm |
| Data management status | |
| Article revision | 00 |
Electrical properties
| Maximum load current | 41 A (The current values for the jumpers can deviate when used in different modular terminal blocks. The precise values can be found in the accessories data for the respective modular terminal blocks.) |
Connection data
| Maximum load current | 41 A (The current values for the jumpers can deviate when used in different modular terminal blocks. The precise values can be found in the accessories data for the respective modular terminal blocks.) |
Dimensions
| Width | 39.3 mm |
| Height | 20.38 mm |
| Depth | 20.38 mm |
| Pitch | 8.2 mm |
Material specifications
| Color | red (RAL 3001) |
| Material | Copper |
| Flammability rating according to UL 94 | V0 |
| Insulating material | PA |
Mounting
| Mounting type | Plug-in mounting |
| Feature Name | Feature Value |
|---|---|
| Explosion-tested version 'Ex e' (EF008498) | No |
| Mounting method (EF000003) | Pluggable |
| Modular spacing (EF000394) | 8.2 mm |
| Colour (EF000007) | Red |
