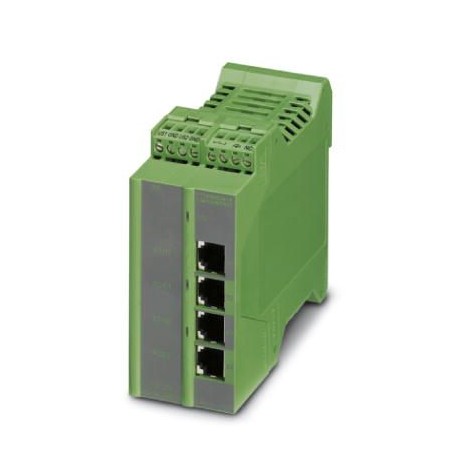

FL PSE 2TX 2891013 PHOENIX CONTACT Ethernet module
FL PSE 2TX
2891013
PHOENIX CONTACT
1 Pcs.
Ethernet module
Factoryline Power over Ethernet (PSE) module for Midspan power supply according to IEEE 802.3af, two PoE power ports, no configuration required, operation possible with 10 Mbits/s and 100 Mbits/s networks
Automation > Network switch
I/O
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 2891013 |
|---|---|
| Packing unit | 1 pc |
| Catalog page | Page 401 (C-6-2017) |
| GTIN | 4046356076043 |
| Weight per Piece (excluding packing) | 320.000 g |
| Custom tariff number | 85176200 |
| Country of origin | DE (Germany) |
Note
| Utilization restriction | EMC: class A product, see manufacturer's declaration in the download area |
|---|
Ambient conditions
| Degree of protection | IP20 |
|---|---|
| Ambient temperature (operation) | 0 °C ... 55 °C |
| Ambient temperature (storage/transport) | -20 °C ... 70 °C |
| Permissible humidity (operation) | 30 % ... 95 % (non-condensing) |
| Permissible humidity (storage/transport) | 30 % ... 95 % (non-condensing) |
| Air pressure (operation) | 86 kPa ... 108 kPa (2000 m above sea level) |
| Air pressure (storage/transport) | 66 kPa ... 108 kPa (3500 m above sea level) |
Interfaces
| Interface 1 | Ethernet (RJ45) |
|---|---|
| No. of ports | 2 (RJ45 ports) |
| Transmission physics | Copper |
| Transmission speed | 10/100 Mbps |
| Transmission length | 100 m (Between transmitter / receiver) |
| Signal LEDs | PoE detection |
Function
| Basic functions | PSE/midspan, complies with IEEE 802.3af |
|---|---|
| Status and diagnostic indicators | LEDs: US, PoE detection per port |
Supply voltage
| Supply voltage | 24 V DC (via COMBICON; max. conductor cross section 2.5 mm²) |
|---|---|
| Residual ripple | 3.6 VPP(within the permitted voltage range) |
| Supply voltage range | 18.5 V DC ... 30.5 V DC |
| Typical current consumption | typ. 100 mA (During no load; approx. 1800 mA at 24 V at the input with maximum load and 25°C ambient temperature) |
Standards and Regulations
| Electromagnetic compatibility | Conformance with EMC Directive 2014/30/EU |
|---|---|
| Noise emission | EN 61000-6-4 |
| Noise immunity | EN 61000-6-2:2005 |
| Vibration (storage/transport) | 5g, 150 Hz, in acc. with IEC 60068-2-6 |
| Free from substances that could impair the application of coating | In acc. with VW specification |
| Connection in acc. with standard | CUL |
| Vibration (operation) | in acc. with IEC 60068-2-6: 5g, 150 Hz |
Environmental Product Compliance
| China RoHS | Environmentally Friendly Use Period = 50 |
|---|---|
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
eCl@ss 4.027250501eCl@ss 4.127250501eCl@ss 5.027250501eCl@ss 5.119030100eCl@ss 6.019170100eCl@ss 7.019170106eCl@ss 8.019170106eCl@ss 9.019170106
| Feature Name | Feature Value |
|---|---|
| Ethernet (EF003535) | Yes |
| Number of other ports (EF007643) | 2 |
| Mounting method (EF000003) | Other |
| Manageable (EF004912) | Yes |
| Degree of protection (IP) (EF005474) | IP20 |
| Height (EF000040) | 99 mm |
| Width (EF000008) | 45.2 mm |
| Depth (EF000049) | 114.293112 mm |
