View larger
Images are for illustrative purposes only. Please refer to data sheet for details

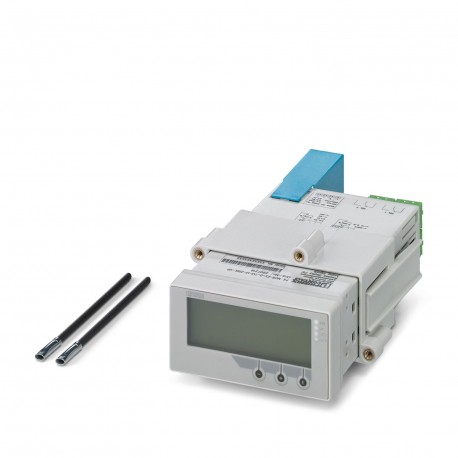

FA MCR-EX-D-TUI-UI-2REL-UP 2907216 PHOENIX CONTACT Digital display
FA MCR-EX-D-TUI-UI-2REL-UP
2907216
PHOENIX CONTACT
1 Pcs.
Digital display
Ex i, Boxed Multifunctional Process Indicator for Electrical Panel Components for Monitoring and Displaying Analog Measurement Values. Universal inputs allow connection of current, voltage, RTDs, and thermocouples. 2 switched contact relay outputs and 1 analog output. HART
Automation > Accessories/spare parts for HVAC sensors
INTERFACE Components (IF)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 2907216 |
|---|---|
| Packing unit | 1 pc |
| Catalog page | Page 180 (C-5-2017) |
| GTIN | 4055626173627 |
| Weight per Piece (excluding packing) | 580.000 g |
| Custom tariff number | 90303330 |
| Country of origin | DE (Germany) |
Ambient conditions
| Ambient temperature (operation) | -20 °C ... 60 °C |
|---|---|
| Ambient temperature (storage/transport) | -40 °C ... 85 °C |
| Maximum altitude | < 2000 m (Above sea level) |
| Degree of protection | IP65 from the front |
Input data
| Description of the input | Universal input |
|---|---|
| Number of inputs | 1 |
| Current input signal | 0 mA ... 20 mA +10 % |
| 4 mA ... 20 mA +10 % | |
| Max. input current | < 150 mA |
| Input signal | Current |
| Input resistance current input | 10 Ω |
| Transmitter supply voltage | > 14 V (22 mA) |
| Transmitter supply voltage range | 22.8 V ... 27.6 V (No-load) |
| Transmitter supply current | < 30 mA (Short-circuit and overload protection) |
| Available input sources | Resistance thermometers |
| Sensor types (RTD) that can be used | Pt, Ni, Cu sensors |
| Connection technology | 2, 3, 4-wire |
| Description of the input | Universal input |
| Voltage input signal | 0 V ... 10 V |
| 2 V ... 10 V | |
| 0 V ... 5 V | |
| 0 V ... 1 V | |
| 1 V ... 5 V | |
| -1 V ... 1 V | |
| -10 V ... 10 V | |
| -30 V ... 30 V | |
| -100 mV ... 100 mV | |
| max. input voltage | ± 35 V (≥ 1 V) |
| Input signal | Voltage |
| Input resistance of voltage input | > 1 MΩ |
| Available input sources | Thermocouples |
| Sensor types that can be used (TC) | J, K, T, N, B, S, R, U. L, C, D |
Output data
| Output name | Current output |
|---|---|
| Number of outputs | 1 |
| Configurable/programmable | Yes |
| Current output signal | 0 mA ... 20 mA |
| 4 mA ... 20 mA | |
| Max. output current | < 22 mA |
| Load/output load current output | ≤ 500 Ω (22 mA) |
| Ripple | < 10 mVPP(500 Ω) |
| D/A resolution | 13 bit |
| Output name | Voltage output |
| Voltage output signal | 0 V ... 10 V |
| 2 V ... 10 V | |
| 0 V ... 5 V | |
| 1 V ... 5 V | |
| Max. output voltage | < 11 V |
| Ripple | < 10 mVPP(1000 Ω) |
| D/A resolution | 13 bit |
Switching output
| Output name | Relay output |
|---|---|
| Contact type | 2 PDT |
| Minimum switching voltage | 12 V |
| Maximum switching voltage | 30 V DC (3 A) |
| 230 V AC (3 A) | |
| Min. switching current | 10 mA |
| Output name | Transistor output, active |
| Output description | Open collector output |
| Number of outputs | 1 |
| Contact type | Transistor |
| Maximum switching voltage | 28 V |
| Max. switching current | 3 A |
| 200 mA |
Power supply
| Supply voltage range | 24 V AC/DC ... 230 V AC/DC (-20 % ... +10 %, 50 Hz ... 60 Hz) |
|---|---|
| Power consumption | ≤ 6.9 W |
General
| Test voltage | 2500 V |
|---|---|
| Protection class | I |
| Overvoltage category | II |
| Degree of pollution | 2 |
| Test voltage input/output | 1500 V |
| Test voltage input/power supply | 2500 V |
| Test voltage output/power supply | 2500 V |
| Noise emission | IEC 61326, class A |
| Noise immunity | IEC 61326 / NAMUR NE 21 |
| Housing material | PC-GF10 |
| Mounting position | Max. viewing angle range +/- 45° from the centre line of the display in every direction |
| Conformance | CE-compliant |
| ATEX | II (1) G [Ex ia Ga] IIC |
| II (1) D [Ex ia Da] IIIC | |
| UL, USA/Canada | UL 61010 Recognized |
| FM approval | AIS, NI/I/2/ABCDEFG/T4 |
| CSA | AIS, NI/I/2/ABCDEFG/T4 |
| GL | EMC1 C |
Standards and Regulations
| Noise emission | IEC 61326, class A |
|---|---|
| Noise immunity | IEC 61326 / NAMUR NE 21 |
| Conformance | CE-compliant |
| ATEX | II (1) G [Ex ia Ga] IIC |
| II (1) D [Ex ia Da] IIIC | |
| UL, USA/Canada | UL 61010 Recognized |
| FM approval | AIS, NI/I/2/ABCDEFG/T4 |
| CSA | AIS, NI/I/2/ABCDEFG/T4 |
| GL | EMC1 C |
| Group | Ex ia IIC |
| Ex ia IIB | |
| Ex ia IIA | |
| Ex ia IIC | |
| Ex ia IIB | |
| Ex ia IIA |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
eCl@ss 4.027210301eCl@ss 4.127210301eCl@ss 5.027210301eCl@ss 5.127210300eCl@ss 6.027210300eCl@ss 7.027210301eCl@ss 8.027210301eCl@ss 9.027210301
| Feature Name | Feature Value |
|---|---|
| Type of accessory/spare part (EF000215) | Other |
| Accessory (EF013236) | No |
| Spare part (EF013237) | No |
