View larger
Images are for illustrative purposes only. Please refer to data sheet for details

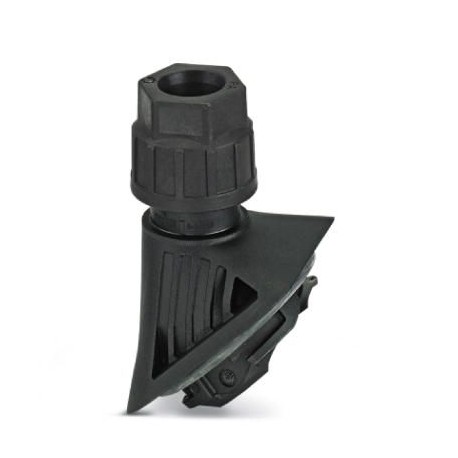

HC-B-G-M20-PLRBK 1407669 PHOENIX CONTACT Cable gland
HC-B-G-M20-PLRBK
1407669
PHOENIX CONTACT
1 Pcs.
Cable gland
EVO plastic cable gland with bayonet closure, for B series housings, size M20, cable diameter 7mm... 13mm
Cables > Cable gland
Industrial plug-in connectors/interfaces
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1407669 |
|---|---|
| Packing unit | 1 pc |
| Catalog page | Page 588 (C-2-2017) |
| GTIN | 4046356776370 |
| Weight per Piece (excluding packing) | 32.340 g |
| Custom tariff number | 39269097 |
| Country of origin | PL (Poland) |
Ambient conditions
| Degree of protection (IP) | IP66 |
|---|---|
| Degree of protection (NEMA) | 12 (UL 50e) |
| Ambient temperature (operation) | -40 °C ... 100 °C |
General
| Type of the screw connection | M20 |
|---|---|
| No. of conductors | 1 |
| Material | PA |
| Cable gland material | PA |
| Material, pressure screw | PA |
| Seal material | NBR |
| Cable seal material | NBR |
| Sealing material | NBR (O-ring) |
| Flammability rating according to UL 94 | V0 (Seal) |
| V2 (Housing) | |
| Shielded | no |
| Thread type on connection side | Bayonet B plastic |
| Tightening torque, union nut | 5.00 Nm |
| Color | black |
| Assembly instructions | Bayonet locking max. 3x can be removed |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
eCl@ss 4.027141209eCl@ss 4.127141209eCl@ss 5.027149109eCl@ss 5.127143400eCl@ss 6.027149100eCl@ss 7.027149109eCl@ss 8.027149109eCl@ss 9.027144432
| Feature Name | Feature Value |
|---|---|
| Thread type (EF001758) | None |
| Nominal thread size inch/gas pipe thread (EF007838) | Other |
| Wrench width (EF000177) | 22 mm |
| Suitable for cable diameter (EF005466) | 7 mm |
| Material (EF002169) | Plastic |
| Material quality (EF001257) | Polyamide (PA) |
| Surface protection (EF000139) | Untreated |
| Halogen free (EF000025) | No |
| Degree of protection (IP) (EF005474) | IP66 |
| Colour (EF000007) | Black |
| Bend radius protection/trumpet flare (EF000734) | No |
| With locknut (EF005049) | No |
| Snapping in opening (EF012547) | Yes |
| Model (EF000010) | Straight |
| Multi seal area (EF005004) | No |
| Flat cable coupling (EF004685) | No |
| Type of sealing (EF001217) | EV009696 |
| Separable screw gland (EF005337) | No |
| Operating temperature (EF001742) | -40 °C |
| Explosion-tested version (EF004191) | No |
| For Ex-zone gas (EF005728) | None |
| For Ex-zone dust (EF008404) | None |
| For armoured cable (EF012184) | No |
| EMC-version (EF001062) | No |
| Screened (EF000881) | No |
| Pressure-compensating (EF024919) | No |
