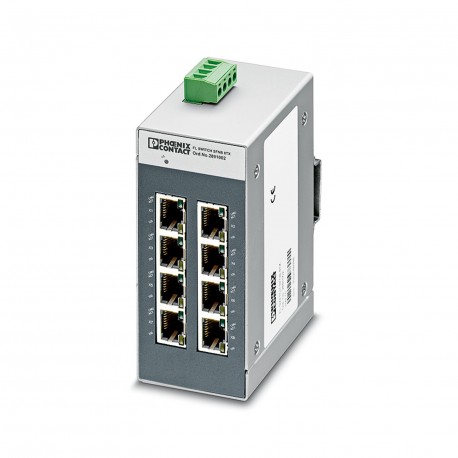

FL SWITCH SFNB 8TX 2891002 PHOENIX CONTACT Industrial Ethernet Switch
FL SWITCH SFNB 8TX
2891002
PHOENIX CONTACT
1 Pcs.
Industrial Ethernet Switch
Ethernet switch, 8 TP-RJ45 ports, 10/100 Mbits/s (RJ45) automatic data rate detection, autocrossing function
Ethernet switch, 8 TP-RJ45 ports, automatic detection of data transfer rate of 10/100 Mbps (RJ45), autocrossing function
Automation > Network switch
I/O
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 2891002 |
|---|---|
| Packing unit | 1 pc |
| Catalog page | Page 387 (C-6-2017) |
| GTIN | 4046356457170 |
| Weight per Piece (excluding packing) | 385.000 g |
| Custom tariff number | 85176200 |
| Country of origin | TW (Taiwan) |
Note
| Utilization restriction | EMC: class A product, see manufacturer's declaration in the download area |
|---|
Ambient conditions
| Degree of protection | IP20 |
|---|---|
| Ambient temperature (operation) | -10 °C ... 60 °C |
| Ambient temperature (storage/transport) | -20 °C ... 85 °C |
| Permissible humidity (operation) | 5 % ... 95 % (non-condensing) |
| Permissible humidity (storage/transport) | 5 % ... 95 % (non-condensing) |
| Air pressure (operation) | 86 kPa ... 108 kPa (up to 1500 m above sea level) |
Interfaces
| Interface 1 | Ethernet (RJ45) |
|---|---|
| No. of ports | 8 (RJ45 ports) |
| Note on the connection method | Auto negotiation and autocrossing |
| Transmission physics | Ethernet in RJ45 twisted pair |
| Transmission speed | 10/100 Mbps |
Function
| Basic functions | Unmanaged switch / auto negotiation, complies with IEEE 802.3, store and forward switching mode |
|---|---|
| Additional functions | Autonegotiation |
| Status and diagnostic indicators | LEDs: US, link and activity per port |
Network expansion parameters
| Cascading depth | Network, linear, and star structure: any |
|---|---|
| Maximum conductor length (twisted pair) | 100 m |
Supply voltage
| Supply voltage | 24 V DC |
|---|---|
| Residual ripple | 3.6 VPP(within the permitted voltage range) |
| Supply voltage range | 9 V DC ... 32 V DC |
| Typical current consumption | 140 mA (at US= 24 V DC) |
| Max. current consumption | 380 mA (@9 V DC) |
Standards and Regulations
| Electromagnetic compatibility | Conformance with EMC Directive 2004/108/EC |
|---|---|
| Noise emission | EN 61000-6-4 |
| Noise immunity | EN 61000-6-2:2005 |
| UL, USA/Canada | Class I, Div. 2, Groups A, B, C, D |
Environmental Product Compliance
| China RoHS | Environmentally Friendly Use Period = 10; |
|---|---|
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
