View larger
Images are for illustrative purposes only. Please refer to data sheet for details

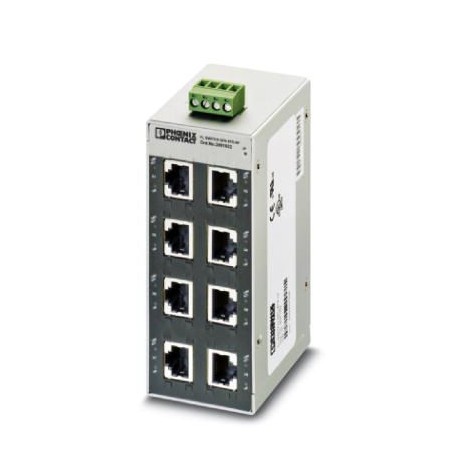

FL SWITCH SFN 8TX 2891929 PHOENIX CONTACT Industrial Ethernet Switch
FL SWITCH SFN 8TX
2891929
PHOENIX CONTACT
1 Pcs.
Industrial Ethernet Switch
Ethernet switch, 8 TP-RJ45 ports, 10/100 Mbits/s (RJ45) automatic data rate detection, autocrossing function
Automation > Network switch
I/O
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 2891929 |
|---|---|
| Packing unit | 1 pc |
| Catalog page | Page 389 (C-6-2017) |
| GTIN | 4046356100823 |
| Weight per Piece (excluding packing) | 494.200 g |
| Custom tariff number | 85176200 |
| Country of origin | TW (Taiwan) |
Ambient conditions
| Degree of protection | IP20 |
|---|---|
| Ambient temperature (operation) | 0 °C ... 60 °C |
| Ambient temperature (storage/transport) | -20 °C ... 70 °C |
| Permissible humidity (operation) | 5 % ... 95 % (non-condensing) |
| Permissible humidity (storage/transport) | 5 % ... 95 % (non-condensing) |
| Air pressure (operation) | 86 kPa ... 108 kPa (up to 1500 m above sea level) |
| Air pressure (storage/transport) | 66 kPa ... 108 kPa (up to 3500 m above sea level) |
Interfaces
| Interface 1 | Ethernet (RJ45) |
|---|---|
| No. of ports | 8 (RJ45 ports) |
| Note on the connection method | Auto negotiation and autocrossing |
| Transmission physics | Ethernet in RJ45 twisted pair |
| Transmission speed | 10/100 Mbps |
Function
| Basic functions | Unmanaged switch / auto negotiation, complies with IEEE 802.3, store and forward switching mode |
|---|---|
| Additional functions | Autonegotiation |
| Status and diagnostic indicators | LEDs: US, link and activity per port |
Network expansion parameters
| Cascading depth | Network, linear, and star structure: any |
|---|---|
| Maximum conductor length (twisted pair) | 100 m |
Supply voltage
| Supply voltage | 24 V DC |
|---|---|
| Residual ripple | 3.6 VPP(within the permitted voltage range) |
| Supply voltage range | 9 V DC ... 32 V DC |
| Typical current consumption | 140 mA (at US= 24 V DC) |
Standards and Regulations
| Electromagnetic compatibility | Conformance with EMC Directive 2004/108/EC |
|---|---|
| Noise emission | EN 61000-6-4 |
| Noise immunity | EN 61000-6-2:2005 |
| Vibration (storage/transport) | 5g, 150 Hz, in acc. with IEC 60068-2-6 |
| Vibration (operation) | in acc. with IEC 60068-2-6: 5g, 150 Hz |
Environmental Product Compliance
| China RoHS | Environmentally Friendly Use Period = 10; |
|---|---|
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
eCl@ss 10.0.119170402eCl@ss 4.027250501eCl@ss 4.127250501eCl@ss 5.027250501eCl@ss 5.119030100eCl@ss 6.019170100eCl@ss 7.019170106eCl@ss 8.019170106eCl@ss 9.019170106
| Feature Name | Feature Value |
|---|---|
| Ethernet (EF003535) | Yes |
| Number of other ports (EF007643) | 8 |
| Mounting method (EF000003) | Other |
| Manageable (EF004912) | No |
| Degree of protection (IP) (EF005474) | IP20 |
| Height (EF000040) | 135.18 mm |
| Width (EF000008) | 49.2 mm |
| Depth (EF000049) | 75.98 mm |
