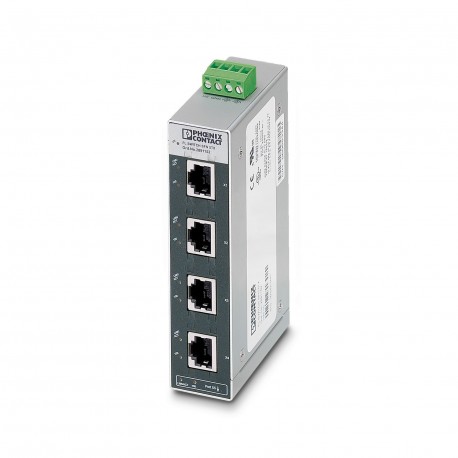

PHOENIX CONTACT FL SWITCH SFN 5TX FL SWITCH SFN 5TX 2891152 PHOENIX CONTACT Industrial Ethernet Switch View larger
Images are for illustrative purposes only. Please refer to data sheet for details

FL SWITCH SFN 5TX 2891152 PHOENIX CONTACT Industrial Ethernet Switch

FL SWITCH SFN 5TX

2891152

PHOENIX CONTACT

1 Pcs.

Industrial Ethernet Switch Ethernet switch, 5 TP-RJ45 ports, automatic detection of 10 or 100 Mbits/s data rate (RJ45), autocrossing function Ethernet switch, 5 TP RJ45 ports, automatic detection of data transmission speed of 10 or 100 Mbps (RJ45), autocrossing function

Automation > Network switch
I/O

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Technical data
Dimensions
Width30 mm
Height120 mm
Depth70 mm
Notes
Note on application
Note on applicationOnly for industrial use
Material specifications
Housing materialAluminum
Mounting
Mounting typeDIN rail mounting
Interfaces
Ethernet (RJ45)
Connection methodRJ45
Note on the connection methodAuto negotiation and autocrossing
Transmission speed10/100 Mbps
Transmission physicsEthernet in RJ45 twisted pair
No. of channels5 (RJ45 ports)
Product properties
Product typeSwitch
Product familyUnmanaged Switch SFN
TypeBlock design
MTTF192.9 Years (MIL-HDBK-217F standard, temperature 25°C, operating cycle 100%)
Data management status
Article revision06
Insulation characteristics
Protection classIII (IEC 61140, EN 61140, VDE 0140-1)
Switch functions
Basic functionsUnmanaged switch / auto negotiation, complies with IEEE 802.3, store and forward switching mode
Status and diagnostic indicatorsLEDs: US, link and activity per port
Additional functionsAutonegotiation
Security functions
Basic functionsUnmanaged switch / auto negotiation, complies with IEEE 802.3, store and forward switching mode
Electrical properties
Local diagnosticsUS Supply voltage Green LED
LNK/ACT Link status/data transmission Green LED
100 Data transmission speed Yellow LED
Maximum power dissipation for nominal condition2.16 W
Test section500 V DC 1 min.
Transmission mediumCopper
Supply
Supply voltage (DC)24 V DC
Supply voltage range9 V DC ... 32 V DC
Power supply connectionVia COMBICON, max. conductor cross section 2.5 mm²
Residual ripple3.6 VPP(within the permitted voltage range)
Max. current consumption205 mA (at 9 V DC)
Typical current consumption90 mA (at US= 24 V DC)
Connection data
Connection technology
Connection namePower supply
pluggableyes
Power supply
Connection methodScrew connection
Conductor cross section, rigid0.2 mm² ... 2.5 mm²
Conductor cross section, flexible0.2 mm² ... 2.5 mm²
Conductor cross section AWG24 ... 12
Stripping length7 mm
Environmental and real-life conditions
Ambient conditions
Degree of protectionIP20
Ambient temperature (operation)0 °C ... 60 °C
Ambient temperature (storage/transport)-20 °C ... 70 °C
Permissible humidity (operation)5 % ... 95 % (non-condensing)
Permissible humidity (storage/transport)5 % ... 95 % (non-condensing)
Vibration (operation)in acc. with IEC 60068-2-6: 5g, 150 Hz
Air pressure (operation)86 kPa ... 5 kPa (up to 1500 m above sea level)
Air pressure (storage/transport)66 kPa ... 108 kPa (up to 3500 m above sea level)
Resistance to gases that may endanger the functions, in acc. with DIN 40046-36, DIN 40046-37Sulfur dioxide (SO2) 10 ±0.3 cm3/m3, hydrogen sulfide (H2S) 1 ±0.3 cm3/m3, at 25°C and 75% humidity and exposure of four days
Standards and regulations
Free from substances that could impair the application of coatingIn acc. with VW specification
Approvals
Conformity/Approvals
ConformanceCE-compliant
UL, USA / CanadaClass I, Div. 2, Groups A, B, C, D, T4
EMC data
Electromagnetic compatibilityConformance with EMC Directive 2004/108/EC
Conformance with EMC directivesIEC 61000-6-2 IEC 61000-4-2 (ESD) Criterion B
IEC 61000-4-3 (immunity to radiated interference) Criterion A
IEC 61000-4-4 (burst) Criterion B
IEC 61000-4-5 (surge) Criterion B
IEC 61000-4-6 (immunity to conducted interference) Criterion A
IEC 61000-4-8 (immunity to magnetic fields) Criterion A
EN 55022 (emitted interference) Criterion A
Noise immunityEN 61000-6-2:2005
Noise emissionEN 61000-6-4
System properties
Functionality
Basic functionsUnmanaged switch / auto negotiation, complies with IEEE 802.3, store and forward switching mode
Signaling
Status displayLEDs: US, link and activity per port

ETIM for 2891152 Data networking products (EC000734)
Feature Name Feature Value
Ethernet (EF003535) Yes
Number of other ports (EF007643) 5
Mounting method (EF000003) Other
Manageable (EF004912) No
Degree of protection (IP) (EF005474) IP20
Height (EF000040) 135.03 mm
Width (EF000008) 30.05 mm
Depth (EF000049) 76.1 mm
