View larger
Images are for illustrative purposes only. Please refer to data sheet for details

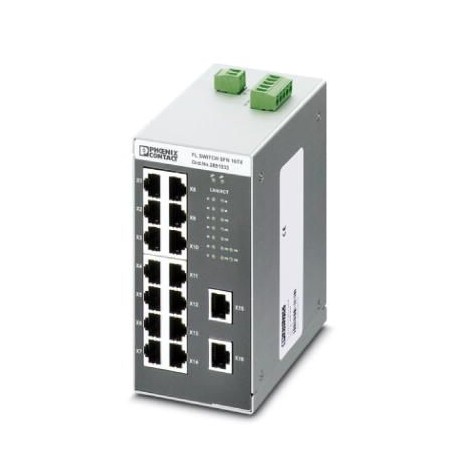

FL SWITCH SFN 16TX 2891933 PHOENIX CONTACT Industrial Ethernet Switch
FL SWITCH SFN 16TX
2891933
PHOENIX CONTACT
1 Pcs.
Industrial Ethernet Switch
Ethernet Switch, 16 TP-RJ45 ports, automatic data rate recording of 10 or 100 Mbits/s (RJ45), Autocrossing function
Automation > Network switch
I/O
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 2891933 |
|---|---|
| Packing unit | 1 pc |
| Catalog page | Page 391 (C-6-2017) |
| GTIN | 4046356551588 |
| Weight per Piece (excluding packing) | 871.000 g |
| Custom tariff number | 85176200 |
| Country of origin | TW (Taiwan) |
Note
| Utilization restriction | EMC: class A product, see manufacturer's declaration in the download area |
|---|
Ambient conditions
| Degree of protection | IP20 |
|---|---|
| Ambient temperature (operation) | 0 °C ... 60 °C |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C |
| Permissible humidity (operation) | 5 % ... 95 % (non-condensing) |
| Permissible humidity (storage/transport) | 5 % ... 95 % (non-condensing) |
| Air pressure (operation) | 86 kPa ... 108 kPa (up to 1500 m above sea level) |
| Air pressure (storage/transport) | 66 kPa ... 108 kPa (up to 3500 m above sea level) |
Interfaces
| Interface 1 | Ethernet (RJ45) |
|---|---|
| No. of ports | 16 (RJ45 ports) |
| Note on the connection method | Auto negotiation and autocrossing |
| Transmission physics | Ethernet in RJ45 twisted pair |
| Transmission speed | 10/100 Mbps |
| Transmission length | 100 m (per segment) |
Function
| Basic functions | Unmanaged switch / auto negotiation, complies with IEEE 802.3, store-and-forward switching mode, includes alarm contacts |
|---|---|
| Additional functions | Autonegotiation |
| Status and diagnostic indicators | LEDs: US1, US2(redundant voltage supply), link and activity per port |
| Signal contact control voltage | 24 V DC |
| Signal contact control current | 1 A |
Network expansion parameters
| Cascading depth | Network, linear, and star structure: any |
|---|---|
| Maximum conductor length (twisted pair) | 100 m |
Supply voltage
| Supply voltage | 24 V DC (redundant) |
|---|---|
| Residual ripple | 3.6 VPP(within the permitted voltage range) |
| Supply voltage range | 12 V DC ... 48 V DC |
| Typical current consumption | 350 mA (at US= 24 V DC) |
| Max. current consumption | 700 mA (at 12 V DC) |
Standards and Regulations
| Electromagnetic compatibility | Conformance with EMC Directive 2004/108/EC |
|---|---|
| Noise emission | EN 61000-6-4 |
| Noise immunity | EN 61000-6-2 |
| Shock | 25g, in accordance with IEC 60068-2-27 |
| Vibration (operation) | in acc. with IEC 60068-2-6: 5g, 150 Hz |
| UL, USA/Canada | Class I, Div. 2, Groups A, B, C, D |
Environmental Product Compliance
| China RoHS | Environmentally Friendly Use Period = 10; |
|---|---|
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
