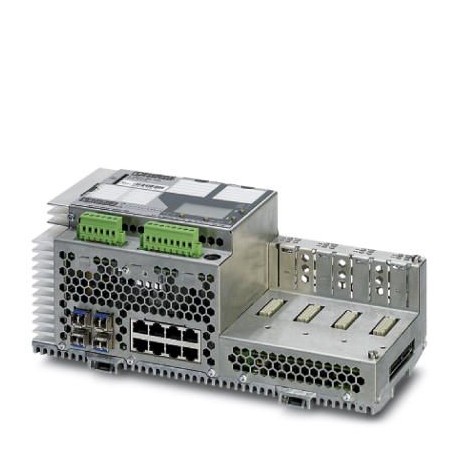

PHOENIX CONTACT FL SWITCH GHS 4G/12 FL SWITCH GHS 4G/12 2700271 PHOENIX CONTACT Industrial Ethernet Switch View larger
Images are for illustrative purposes only. Please refer to data sheet for details

FL SWITCH GHS 4G/12 2700271 PHOENIX CONTACT Industrial Ethernet Switch

FL SWITCH GHS 4G/12

2700271

PHOENIX CONTACT

1 Pcs.

Industrial Ethernet Switch Modular Gigabit Ethernet switch with four 1000 MBit/s Combo ports and four 10/100 MBit/s RJ45 slots, expandable with an expansion station up to 24 ports

Automation > Network switch
I/O

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey2700271
Packing unit1 pc
Catalog pagePage 421 (C-6-2017)
GTIN4046356517706
Weight per Piece (excluding packing)2,700.000 g
Custom tariff number85176200
Country of originDE (Germany)

Note

Utilization restrictionEMC: class A product, see manufacturer's declaration in the download area

Dimensions

Width287 mm
Height122 mm
Depth113 mm

Ambient conditions

Degree of protectionIP20
Ambient temperature (operation)-20 °C ... 55 °C (non-condensing)
Ambient temperature (storage/transport)-20 °C ... 70 °C
Permissible humidity (operation)10 % ... 95 % (non-condensing)
Permissible humidity (storage/transport)10 % ... 95 % (non-condensing)
Air pressure (operation)80 kPa ... 108 kPa (2000 m above sea level)
Air pressure (storage/transport)66 kPa ... 108 kPa (3500 m above sea level)

SFP interface

InterfaceEthernet (combo)
No. of ports4 (SFP ports or RJ45 ports)
Transmission speed1000 Mbps (full duplex)
Transmission physicsFO
Copper

Copper interface

InterfaceEthernet
No. of ports4 (RJ45 ports)
Transmission speed10/100 Mbps
Connection methodRJ45
Note on the connection methodAuto negotiation and autocrossing
Transmission physicsCopper

Interface expansion

InterfaceEthernet
No. of ports2 (Per interface module)
Connection methodvia interface module
Note on the connection methodMax. 4 interface modules (without extension)
Transmission speed10/100 Mbps (full duplex)
Transmission physicsmulti-mode fiberglass
Single-mode fiberglass
POF-SCRJ
GI-HCS fibers
Copper
PoE

Function

Basic functionsStore-and-forward switch complies with IEEE 802.3, 8 priority classes according to IEEE 802.1p, smart mode, port mirroring, multicast filtering, IGMP snooping, VLANs, Media Redundancy Protocol (MRP according to IEC 62439), Rapid Spanning Tree (RSTP), Fast Ring Detection (FRD), Large Tree Support, IEEE 802.1X security, port security, SNMPv3, HTTPS, PROFINET device, GMRP, GVRP, SNTP, 2 digital inputs
ManagementWeb-based management (HTTP)
SNMPv1/v2/v3
Diagnostic functionsRMON History
N:1-Portmirroring
LLDP (Link Layer Discovery Protocol)
SNMP-Traps
Filter functionsQuality of Service (8 priority classes)
Port-Priorisierung
VLAN (up to 223 VLANs)
RedundancyMRP (Media Redundancy Protocol)
RSTP (Rapid Spanning Tree Protocol)
FRD (Fast Ring Detection)
Large Tree Support
STP (Spanning Tree Protocol)
MSTP (Multiple Spanning Tree Protocol)
Additional functionsDHCP Option 82 (Relay Agent)
Link aggregation (up to 8 trunks)
BootP
DHCP-Client
MAC-based Port Security
Jumbo frames
Supported browsersInternet Explorer 5.5 or higher
PROFINET device functionPROFINET device
PROFIenergy
Fast Startup
PROFINET specificationVersion 1.1
PROFINET conformance classConformance-Class B
Status and diagnostic indicatorsLEDs: US1, US2 (power supply), Fail (alarm contact), 2 LEDs per Ethernet port (Link and switchable Activity/Speed/Duplex), DI1, DI2 (Digital Input), UI (supply voltage for ext. sensor), and large operator display (display of IP address and other parameters)
Signal contact control voltage24 V (typical)
Signal contact control current190 mA (maximum)

Network expansion parameters

Cascading depthNetwork, linear, and star structure: any
Maximum conductor length (twisted pair)100 m

Supply voltage

Supply voltage24 V DC (redundant)
Residual ripple3.6 VPP(within the permitted voltage range)
Supply voltage range18.5 V DC ... 30.2 V DC
Typical current consumption800 mA (up to 2.5 A, depends on the configuration)
Max. current consumption2.5 A

General

Mounting typeDIN rail
Type AXStand-alone
Net weight2700 g
Material base plateDie-cast aluminum, corrosion-resistant

Connection data

Connection methodScrew connection
Conductor cross section solid min.0.2 mm²
Conductor cross section solid max.2.5 mm²
Conductor cross section flexible min.0.2 mm²
Conductor cross section flexible max.2.5 mm²
Conductor cross section AWG min.24
Conductor cross section AWG max.12
Stripping length7 mm

Standards and Regulations

Electromagnetic compatibilityConformance with EMC Directive 2014/30/EU
Type of testShock in acc. with EN 60068-2-27/IEC 60068-2-27
Test resultOperation: 25g, 11 ms duration, semi-sinusoidal shock impulse
Type of testShock in acc. with EN 60068-2-27/IEC 60068-2-27
Test resultStorage/Transport: 50g, 11 ms duration, semi-sinusoidal shock impulse
Type of testVibration resistance in acc. with EN 60068-2-6/IEC 60068-2-6
Test resultOperation/Storage/Transport: 5g, 150 Hz, Criterion 3
Type of testFree fall in acc. with IEC 60068-2-32
Test result1 m
Noise emissionEN 61000-6-3/-4
Noise immunityEN 61000-6-2:2005
Vibration (storage/transport)5g, 150 Hz, in acc. with IEC 60068-2-6
Free from substances that could impair the application of coatingIn acc. with VW specification
Vibration (operation)in acc. with IEC 60068-2-6: 5g, 150 Hz

Environmental Product Compliance

REACh SVHC1,2-dimethoxyethane,ethylene glycol dimethyl ether (EGDME) 110-71-4
Lead 7439-92-1
China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications


ETIM for 2700271 Data networking products (EC000734)
Feature Name Feature Value
Ethernet (EF003535) Yes
Number of other ports (EF007643) 2
Mounting method (EF000003) Other
Manageable (EF004912) Yes
Degree of protection (IP) (EF005474) IP20
Height (EF000040) 126.2 mm
Width (EF000008) 289.024992 mm
Depth (EF000049) 117.4 mm

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
