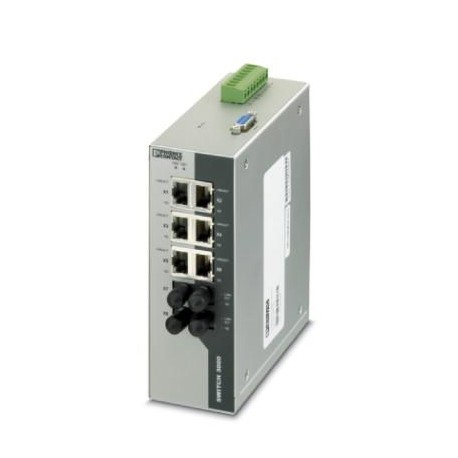

PHOENIX CONTACT FL SWITCH 3006T-2FX ST FL SWITCH 3006T-2FX ST 2891037 PHOENIX CONTACT Industrial Ethernet Switch View larger
Images are for illustrative purposes only. Please refer to data sheet for details

FL SWITCH 3006T-2FX ST 2891037 PHOENIX CONTACT Industrial Ethernet Switch

FL SWITCH 3006T-2FX ST

2891037

PHOENIX CONTACT

1 Pcs.

Industrial Ethernet Switch Ethernet managed switch with six RJ45 ports for 10/100 Mbits/s, two ports for fiber optics in ST format and an operating temperature of -40 °C ... +75 °C

Automation > Network switch
I/O

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey2891037
Packing unit1 pc
Catalog pagePage 409 (C-6-2017)
GTIN4046356659376
Weight per Piece (excluding packing)955.000 g
Custom tariff number85176200
Country of originTW (Taiwan)

Note

Utilization restrictionEMC: class A product, see manufacturer's declaration in the download area

Dimensions

Dimensional drawing
Width54.4 mm
Height146.4 mm
Depth125 mm

Ambient conditions

Degree of protectionIP20
Ambient temperature (operation)-40 °C ... 75 °C
Ambient temperature (storage/transport)-40 °C ... 85 °C
Permissible humidity (operation)5 % ... 95 % (non-condensing)
Permissible humidity (storage/transport)5 % ... 95 % (non-condensing)
Air pressure (operation)57 kPa ... 108 kPa (up to 4850 m above mean sea level)
Air pressure (storage/transport)57 kPa ... 108 kPa (up to 4850 m above mean sea level)

Interfaces

Interface 1Ethernet (RJ45)
No. of ports6 (RJ45 ports)
Note on the connection methodAuto negotiation and autocrossing
Transmission physicsEthernet in RJ45 twisted pair
Transmission speed10/100 Mbps
Transmission length100 m
Interface 2Fiber optic interface
No. of ports2 (ST multi-mode)
Transmission physicsmulti-mode fiberglass
Transmission speed100 Mbps (full duplex)
Transmission length12.1 km (fiberglass with F-G 62.5/125 0.7 dB/km F1000)
3.3 km (fiberglass with F-G 62.5/125 2.6 dB/km F600)
7.1 km (fiberglass with F-G 50/125 0.7 dB/km F1200)
3.1 km (fiberglass with F-G 50/125 1.6 dB/km F800)
Wavelength1300 nm

Function

Basic functionsStore and forward switch, Extended Ring and IEEE redundancy, Multicast control, IGMP snooping, trunking, Port and Tagging VLANs, Port and IEEE 802.1x security, SNMP V3 and Https security, SNTP, web customization, user accounts
RedundancyERR (Extended ring redundancy)
Status and diagnostic indicatorsLEDs: US1, US2(redundant voltage supply), link and activity per port
Signal contact control voltage250 V AC
Signal contact control current1 A

Network expansion parameters

Cascading depthNetwork, linear, and star structure: any
Maximum conductor length (twisted pair)100 m

Supply voltage

Supply voltage24 V DC (redundant)
Residual ripple3.6 VPP(within the permitted voltage range)
Supply voltage range12 V DC ... 48 V DC
Typical current consumption330 mA (at US= 24 V DC)
Inrush surge current8.2 A (2 ms)

General

Mounting typeDIN rail
Type AXBlock design
Net weight955 g
Housing materialAluminum

Connection data

Connection methodPluggable COMBICON screw connections
Conductor cross section solid min.0.2 mm²
Conductor cross section solid max.2.5 mm²
Conductor cross section flexible min.0.2 mm²
Conductor cross section flexible max.2.5 mm²
Conductor cross section AWG min.24
Conductor cross section AWG max.12
Stripping length7 mm

Standards and Regulations

Type of testShock in acc. with EN 60068-2-27/IEC 60068-2-27
Test result25g, 11 ms half-sine shock pulse
Type of testVibration resistance in acc. with EN 60068-2-6/IEC 60068-2-6
Test result5g, 150 Hz, Criterion 3
Type of testFree fall in acc. with IEC 60068-2-32
Test result1 m
Noise emissionEN 61000-6-4
Noise immunityEN 61000-6-2:2005
ConformanceCE-compliant
ATEX II 3 G Ex nA nC IIC T4 Gc
IECExEx nA nC IIC T4 Gc
UL, USA/CanadaClass I, Div. 2, Groups A, B, C, D

Environmental Product Compliance

China RoHSEnvironmentally Friendly Use Period = 10;
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications


ETIM for 2891037 Data networking products (EC000734)
Feature Name Feature Value
Ethernet (EF003535) Yes
Number of other ports (EF007643) 2
Mounting method (EF000003) Other
Manageable (EF004912) Yes
Degree of protection (IP) (EF005474) IP20
Height (EF000040) 160.56 mm
Width (EF000008) 54.4 mm
Depth (EF000049) 147.3 mm
